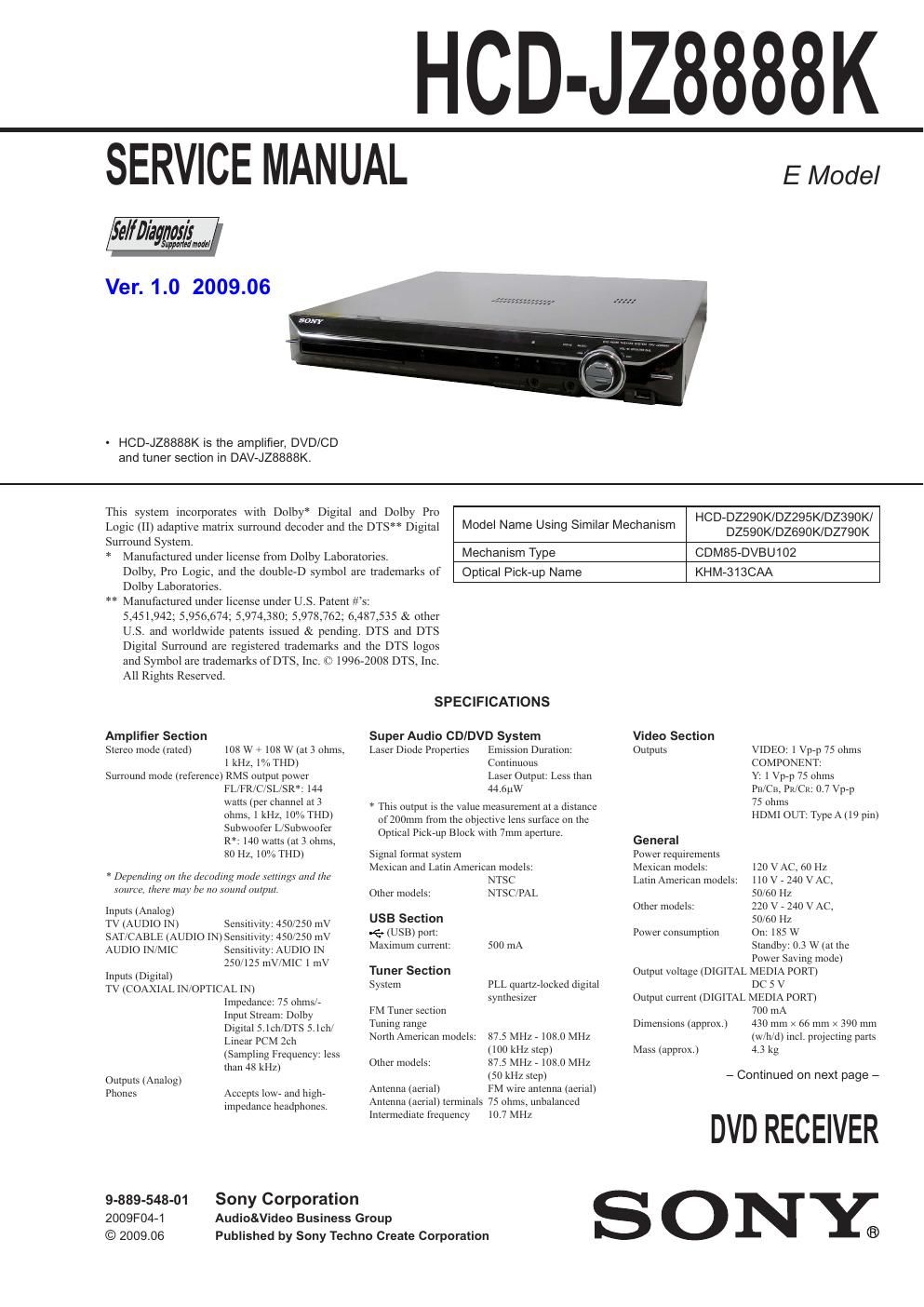

HCD-JZ8888K

SERVICE MANUAL

ie/fD/bg/mgm

Ver. 1.0 2009.06

E Model

- HCD-JZSSSSK is the amplifier, DVD/CD
and tuner section in DAV-J28888K.

This system incorporates w1th Dolby* Digital and Dolby Pro
Logic (II) adaptive matrix surround decoder and the DTS Digital

Surround System.

* Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of

Dolby Laboratories.

. . . . HCD-DZZQOK/DZZQSK/DZ390K/
Model Name Ustng Similar Mechanism D2590K/D2690K/DZ790K
Mechanism Type CDM85-DVBU102
Optical Pick-up Name KHM-313CAA

** Manufactured under license ilnder US. Patent #s:
5,451,942; 5,956,674: 5,974,380; 5,978,762; 6,487,535 & other
US. and worldwide patents issued & pending. DTS and DTS
Digital Surround are registered trademarks and the DTS logos
and Symbol are trademarks ofDTS. Inc. ((3 1996-2008 DTS, Inc.

All Rights Reserved.

Amplifier Section

Stereo mode (rated) 108 w + 108 W (at 3 ohms,

1 kHz, 1%THD)

Surround mode (reference) RMS output power
FL FKC/SL/SR" 144
watts (per channel at 3
ohms, 1 kHz, 10% TI-ID)
Subwoofer L/Subwooter
12*: 140 watts (at 3 ohms.
80 Hz. 10% TI-ID)

* Depending on the daunting mat/B stilling) and the
some time may he no sound oat/iii),

Inputs (Analog)

TV (AUDIO 1N) Sensuuity: 2150.250 mV

SAT CABLE (AUDIO IN) Senslllvlly: 450 250 mV

AUDIO lN/MIC Sensitiyity: AUDIO IN
250/125 mv MIC l iiiv

Inputs (Dlgltal)

TV (COAXIAL IN/OPTICAL 1N)
Impedance. 75 ohmsiL
Input Stream: Dolby
Digital 5.Icii DTS 5.1ch/
Linear PCM 2ch
(Sampling Frequency: less
than 48 kHz)

Outputs (Analog)
Phones Accepts low and highe

impedance headphones,
9-889-548-01 Sony Corporation
2009F04-1 Audio&Video Business Group
© 2009.06

Published by Sony Techno Create Corporation

SPECIFICATIONS

Super Audio CDIDVD System

Laser Diode Properties Emission Duration:
Continuous
Laser Output: Less than
44,6nw

* This output is the value measurement at a distance

or 200mm from the Objective lens sin-race on the
Optical Plckrllp Block With 7mm aperture.

Signal format system
Mexican and Latin American models:

NTSC
Other models: NTSC/PAL
USB Section
4. (USB) port;
Maxunum current: 500 mA

Tuner Section
System PLL quartzelocked dlgllal
synthesizer

FM Tuner section

Tuning range

NotthAmeticaii models: 87.5 MHz . 108.0 MHz
(100 kHz step)

87.5 MHz 7103.0 MHz
(50 kHz step)

Antenna (aerial) FM wu-e antenna (aei-ial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency i0,7 MI-Iz

Orher models:

Video Section
Outputs VIDEO 1 Vprp 75 ohms
COMPONENT:

Y: I Vpep 75 ohms
Pit/Cu. PR/CK: 0.7 Vprp
75 ohms

HDMI OUT: Type A (19 pm)

General

Power requirements
MeXican models.

Latin American models:

IZOVAC. 60 Hz
IIOVVZAOVAC.

50/60 Hz

Other models: 220 V r 240 V AC.
50/60 Hz

Power consllmpllon On: [85 W

Standby: 0.3 w (at the
Power Saving mode)
Output voltage (DIGITAL MEDIA PORT)
DC 5 v
Output cun'cnr (DIGITAL MEDIA PORT)
700 mA
430 mm x so mm x 390 mm
(w/h d) Incl. projectlng paits
Mass (approx) 4.3 kg

Dimensions (approx)

- Continued on next page -

DVD RECEIVER

SONY;

Page 2

HCD-J28888K

Supported file format

MP3 (MPEG 1 Audio Layer-3)

File Extension: mp3

Bltrale: 32 kbps . 320 kbps
Sanipling frequencies: 32144.1,48 kI-lz

WMA (USB device only)

File Extension: wina

Bttrate: 48 kbps . 192 kbps
Sainpling frequencies: 44.1 kHz

AAC (USB device only)

File Exiension: m4a

Biirnte: 48 kbps . 320 kbps
Sampling frequencies: 44.1 kHz

DivX

File Extension: avlidivx

Video codec: DIVX video

Bltrate: 8 Mbps IMAX)

Frame rate: 30 fps

Resolution. 720 x 576

Audio codec: MP3

MPEGA

File format: MP4 File Format

File Extension: mp4/m4v

Video codec: MPEG4 Simple Profile
(AVC IS not Compatible.)

Bitrale: 4 Mbps

Frame iaie: 30 fps

Resolution. 720 x 576

Audio codec: AACVLC (HEeAAC Is not
compatible.)

DRM: Not compatible

Design and specifications are subject to change
Without notice,

MODEL IDENTIFICATION
- Back Panel -

@

Pans No.
Model Part No.
E32 model 4-122-169-0I]
MX model 4-122-169-1I]
SP model 4-122-169-3I]

- Abbreviation
E32 : 110 - 240V AC area in E model
MX : Mexican model
SP : Singapore model

SAFETY-RELATED COMPONENT WARNING!

Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.

This appliance is classified as
a CLASS 1 LASER product.
This marking is located on the
rear or bottom exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAlTE

KLASS I LASERAPPARAT

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.

NOTES ON CHIP COMPONENT REPLACEMENT

Never reuse a disconnected chip component.
Notice that the minus side ofa tantalum capacitor may be dam-
aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

Keep the temperature of soldering iron around 270 °C during
repairing.

Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

Be careful not to apply force on the conductor when soldering
or unsoldering.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

LEAD FREE MARK

Unleaded solder has the following characteristics.

Unleaded solder melts at a temperature about 40 0C higher

than ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solderjoint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C.

Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!

Strong viscosity

Unleaded solder is more viscous (sticky) less prone to flow)

than ordinary solder so use caution not to let solder bridges

occur such as on [C pins, etc.

Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

SPECIAL COMPONENT NOTICE

The components identified by mark 131 contain confidential infor-
mation.

Strictly follow the instructions whenever the components are re-
paired and/or replaced.
