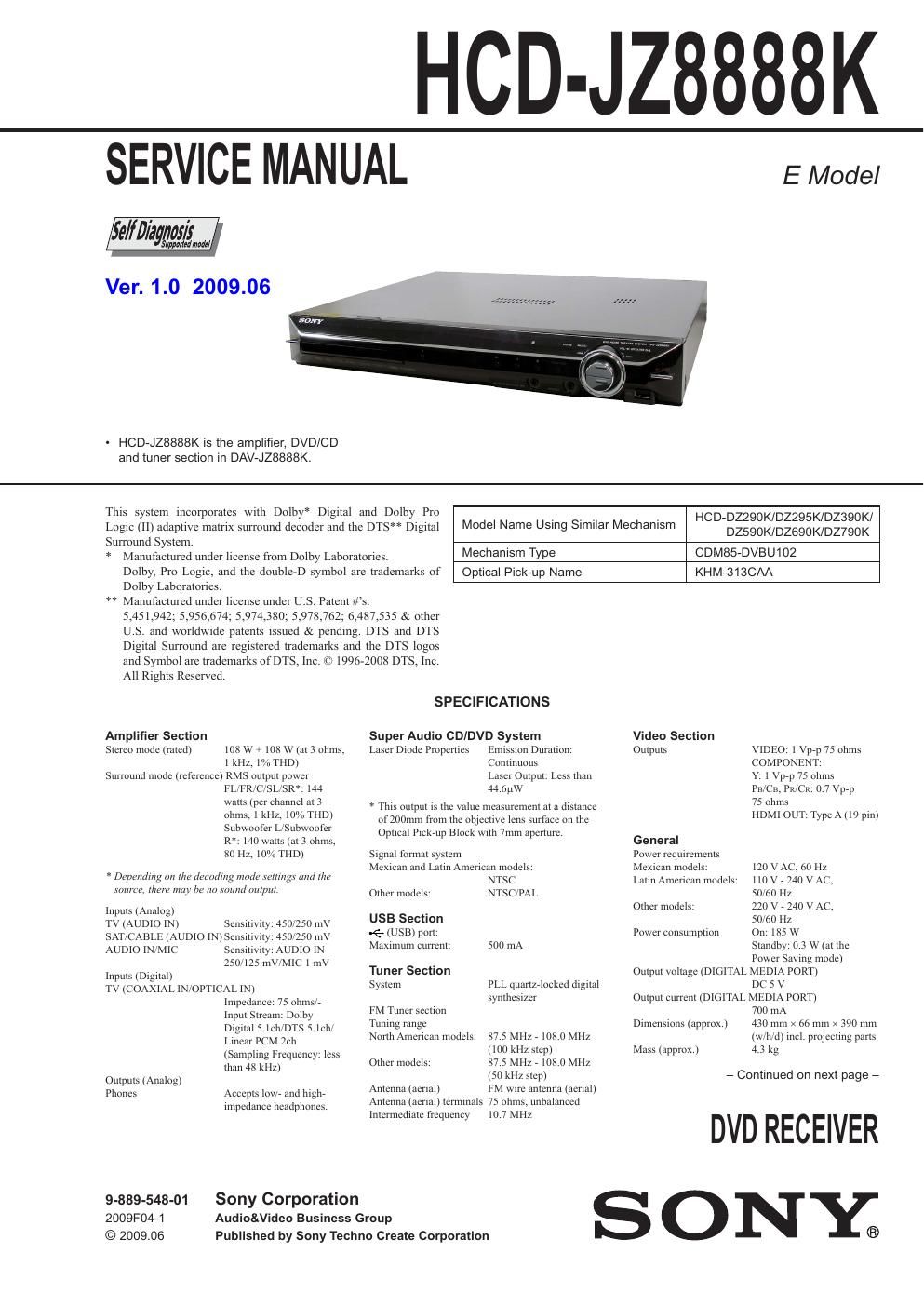

Page 1

HCD-JZ8888K

SERVICE MANUAL

ie/fD/bg/mgm

Ver. 1.0 2009.06

E Model

- HCD-JZSSSSK is the amplifier, DVD/CD
and tuner section in DAV-J28888K.

This system incorporates w1th Dolby* Digital and Dolby Pro
Logic (II) adaptive matrix surround decoder and the DTS Digital

Surround System.

* Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of

Dolby Laboratories.

. . . . HCD-DZZQOK/DZZQSK/DZ390K/
Model Name Ustng Similar Mechanism D2590K/D2690K/DZ790K
Mechanism Type CDM85-DVBU102
Optical Pick-up Name KHM-313CAA

** Manufactured under license ilnder US. Patent #s:
5,451,942; 5,956,674: 5,974,380; 5,978,762; 6,487,535 & other
US. and worldwide patents issued & pending. DTS and DTS
Digital Surround are registered trademarks and the DTS logos
and Symbol are trademarks ofDTS. Inc. ((3 1996-2008 DTS, Inc.

All Rights Reserved.

Amplifier Section

Stereo mode (rated) 108 w + 108 W (at 3 ohms,

1 kHz, 1%THD)

Surround mode (reference) RMS output power
FL FKC/SL/SR" 144
watts (per channel at 3
ohms, 1 kHz, 10% TI-ID)
Subwoofer L/Subwooter
12*: 140 watts (at 3 ohms.
80 Hz. 10% TI-ID)

* Depending on the daunting mat/B stilling) and the
some time may he no sound oat/iii),

Inputs (Analog)

TV (AUDIO 1N) Sensuuity: 2150.250 mV

SAT CABLE (AUDIO IN) Senslllvlly: 450 250 mV

AUDIO lN/MIC Sensitiyity: AUDIO IN
250/125 mv MIC l iiiv

Inputs (Dlgltal)

TV (COAXIAL IN/OPTICAL 1N)
Impedance. 75 ohmsiL
Input Stream: Dolby
Digital 5.Icii DTS 5.1ch/
Linear PCM 2ch
(Sampling Frequency: less
than 48 kHz)

Outputs (Analog)
Phones Accepts low and highe

impedance headphones,
9-889-548-01 Sony Corporation
2009F04-1 Audio&Video Business Group
© 2009.06

Published by Sony Techno Create Corporation

SPECIFICATIONS

Super Audio CDIDVD System

Laser Diode Properties Emission Duration:
Continuous
Laser Output: Less than
44,6nw

* This output is the value measurement at a distance

or 200mm from the Objective lens sin-race on the
Optical Plckrllp Block With 7mm aperture.

Signal format system
Mexican and Latin American models:

NTSC
Other models: NTSC/PAL
USB Section
4. (USB) port;
Maxunum current: 500 mA

Tuner Section
System PLL quartzelocked dlgllal
synthesizer

FM Tuner section

Tuning range

NotthAmeticaii models: 87.5 MHz . 108.0 MHz
(100 kHz step)

87.5 MHz 7103.0 MHz
(50 kHz step)

Antenna (aerial) FM wu-e antenna (aei-ial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency i0,7 MI-Iz

Orher models:

Video Section
Outputs VIDEO 1 Vprp 75 ohms
COMPONENT:

Y: I Vpep 75 ohms
Pit/Cu. PR/CK: 0.7 Vprp
75 ohms

HDMI OUT: Type A (19 pm)

General

Power requirements
MeXican models.

Latin American models:

IZOVAC. 60 Hz
IIOVVZAOVAC.

50/60 Hz

Other models: 220 V r 240 V AC.
50/60 Hz

Power consllmpllon On: [85 W

Standby: 0.3 w (at the
Power Saving mode)
Output voltage (DIGITAL MEDIA PORT)
DC 5 v
Output cun'cnr (DIGITAL MEDIA PORT)
700 mA
430 mm x so mm x 390 mm
(w/h d) Incl. projectlng paits
Mass (approx) 4.3 kg

Dimensions (approx)

- Continued on next page -

DVD RECEIVER

SONY;
