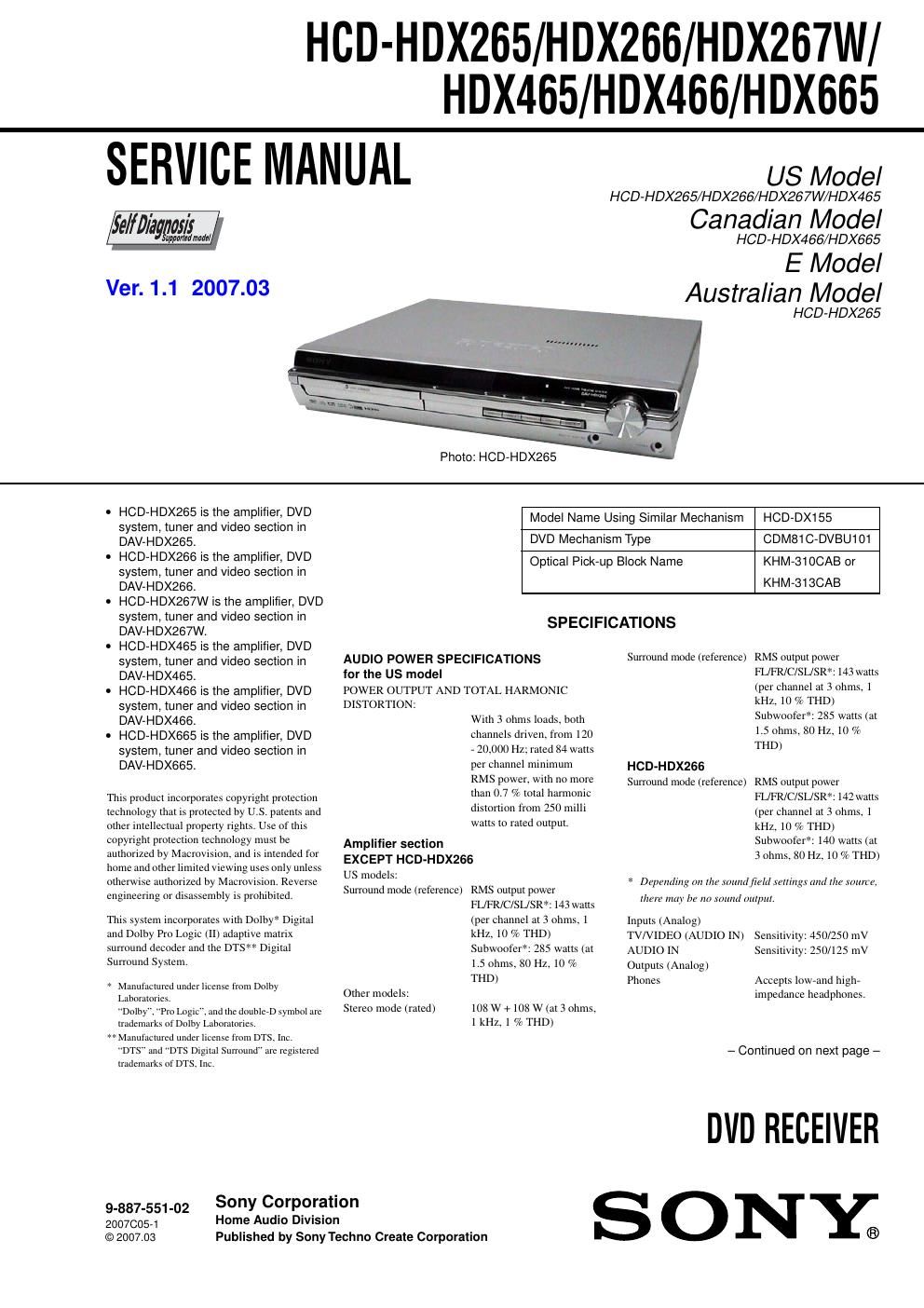

Sony hcd hdx 265 service manual

Page 2

HCD-H DX265/ H DX266/ H DX267W/ H DX465/ H DX466/ H DX665

DVD system

Laser

Signal t'orrnat system
North American models:
Other models:

Tuner section
System

FM tuner section
Trrning rang
North Americart models:

Other models:

Antertna ( rial)

Antertna (aerral) terminals
Intermediate frequency
AM lttner
Timing range

North American model:

'ctron

Notes on chip component replacement

Semiconductor laser
(DVDJ : 650 nm)
(CD1 : 790 um)
Emission drrration:
continuous

NTSC
PAL/NTSC

PLL quartzrlocked digrtal
s ynthesrzcr

87.571080 MHL (100 kHz
step)

87.571080 MHz (50 kHz
step)

FM wire antenrta (aerial)
75 ohms, unbalanced

10.7 MHL

530 7 1,710kHz (with the
interval set at 10 kHz)
5317 1,710kHz (with the
interval set at 9 kHz)

Australian model:

Other models:

Antenna (aerial)
Intermediate frequency
Video section
Outputs

General
Power requirements

North American models:

0 Never reuse a disconnected chip component.
0 Notice that the minus side of a tantalum capacitor may be
damaged by heat.

CAUTION

exposure.

Use of controls or adjustments or perfomtance of procedures
other than those specified herein may result in hazardous radiation

53171710 kHz (with thc
interval set at 9 kHz)

530 71710 kHz (with the
interval set at 10 kHz)
531 7 1,602 kHz (with thc
interval set at 9 kHz)

530 7 1,610 kHL (with the
interval set at 10 kHz)
AM loop antenna (aerial)
450 kHz

VIDEO: 1 Vp7p 75 ohms
S VIDEO:

Y: 1 Vpep 75 ohms

c; 0.286 Vp7p 75 ohms
COMPONENT:

Y: 1 Vpep 75 ohms
Pia/Ca, Pit/CR: 0.7 Vp-p
75 ohms

HDMI OUT: Type A (19
Pin)

120 V AC, (tot-u

Other models: 220 , 240 V AC, 50/60 Hz
Power outpttt (DIGITAL MEDIA PORT)

DC OUT: 5 V, 700 mA
Power consumption
EXCEPT HCDVHDX266: On: 175 W
Standby: 03 W (at the
Power Saving mode)
On: 150 W
Standby: 0.3 W (at the
Power Saving mode)

HCDVHDXZSG:

Dimensions (approx)

EXCEPT HCDVHDX267W:

430 x 86 X415 mm (17 X
3']: X 16 \lxrrtelres) (w/h/d)
incl. projecting parts
430x 86 X435 mm (17 X
3V2 X17l4rnches)(wlh/d)
incl. projecting parts

I-ICDEHDX267W:

Mass (approx)

EXCEPT HCDVHDX267W:

5.2kg(111b 8 oz)
HCDVHDX267W: 5.4 kg (11 lb 15 oz)
Design and specifications are subject to change
without notice.

ATTENTION AU COMPOSANT AVANT RAPPORT

A LA SECURITE!

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.

2

LES COMPOSANTS IDENTIFIES PAR UNE MARQUE A SUR
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE
FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS
QUE PAR DES PIECES SONY DONT LES NUMEROS SONT
DONNES DANS CE MANUEL 0U DANS LES SUPPLEMENTS
PUBLIES PAR SONY.
