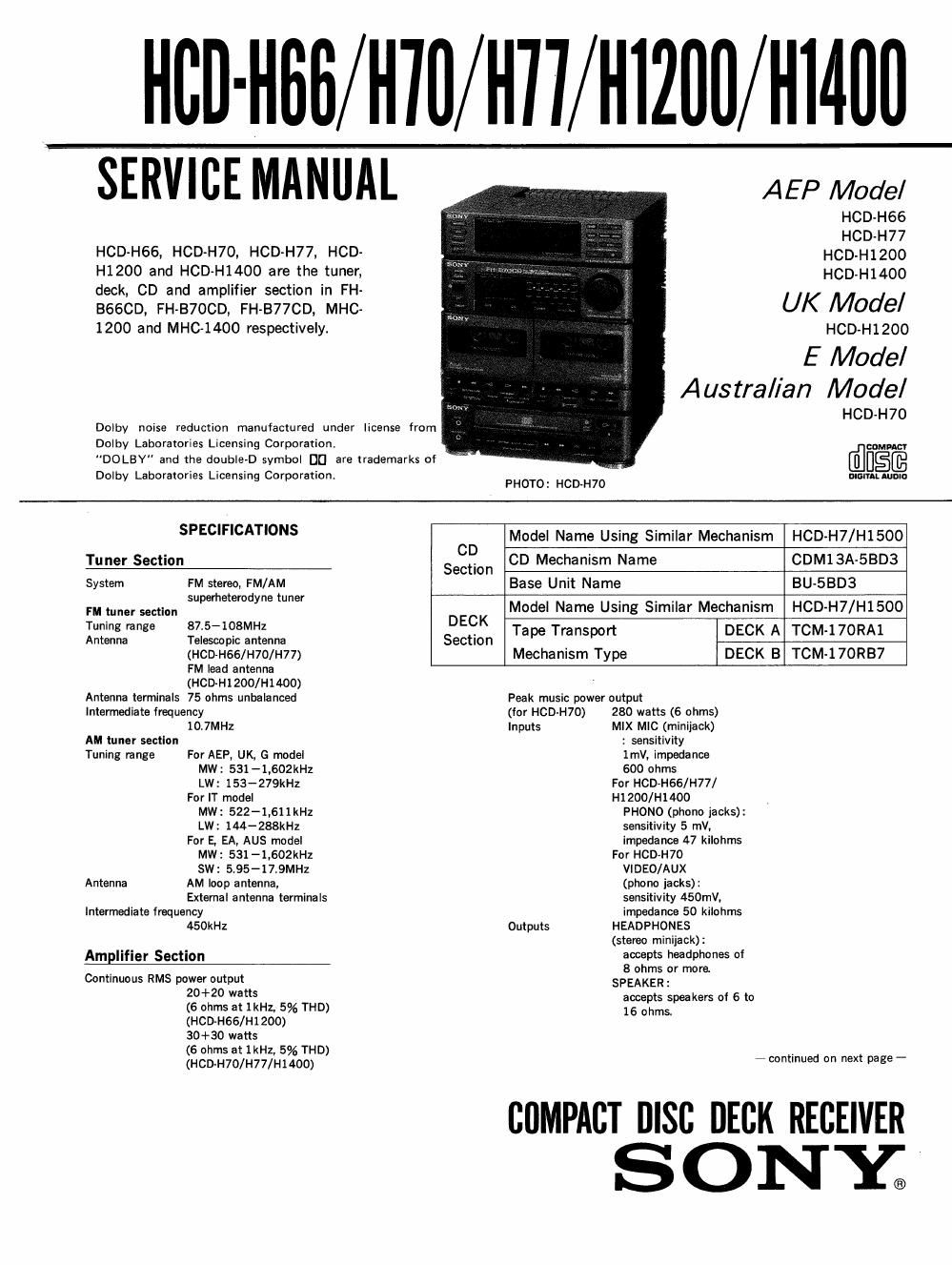

HCD-H66/H70/H77/H 1200/H 1400

Compact Disc Player Section

System Compact disc digital audio
system
Laser Semiconductor laser

()1 =780nm)

Emission duration

: continuous

Laser output Max. 446pw

This output is the value
measured at distance of
about 200 mm from the
objective lens surface on
the Optical Pick-up Block.

Cassette Deck Section

Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
40-13.000Hz (iSdB),
using TYPE I cassette
(Sony HF-S)
40-14,000Hz (IadB),
using TYPE I] cassette
Wow and llutter 0.1% WRMS 10.3% (DIN)

General

Power requirements AEP model
220-230V AC, 50/60Hz

UK model: 240V AC. 50Hz

G, IT model:
220-230V AC. 50H:

E, EA, AUS model:
110-120V or
220-240V
AC adjustable. 50/60Hz

Power consumption Except for UK model
: 90 watts
UK model: 160 watts
Dimensions Approx
615x285><260mm

(w/h/d)

(24/;X11/¢X10/

inches)

incl. projecting parts and

controls

Weight Appox 11.6kg (25 lb 9 oz)
Supplied accessories

Remote commander (1)

Sony SUM-3 (N5)

batteries (2)

AM loop antenna (1)

FM lead antenna (1)

(HCD~H1200/H1400)

Design and specifications subject to change
without notice

Note: (3 : Germany model
IT : Italian model
EA : Saudi Arabia model
AUS: Australian model

For HCD-H66/H77/H1200/H1400

This appliance is classified as 3 CLASS 1
LASER product.

The CLASS 1 LASER PRODUCT label is
located on the rear exterior.
