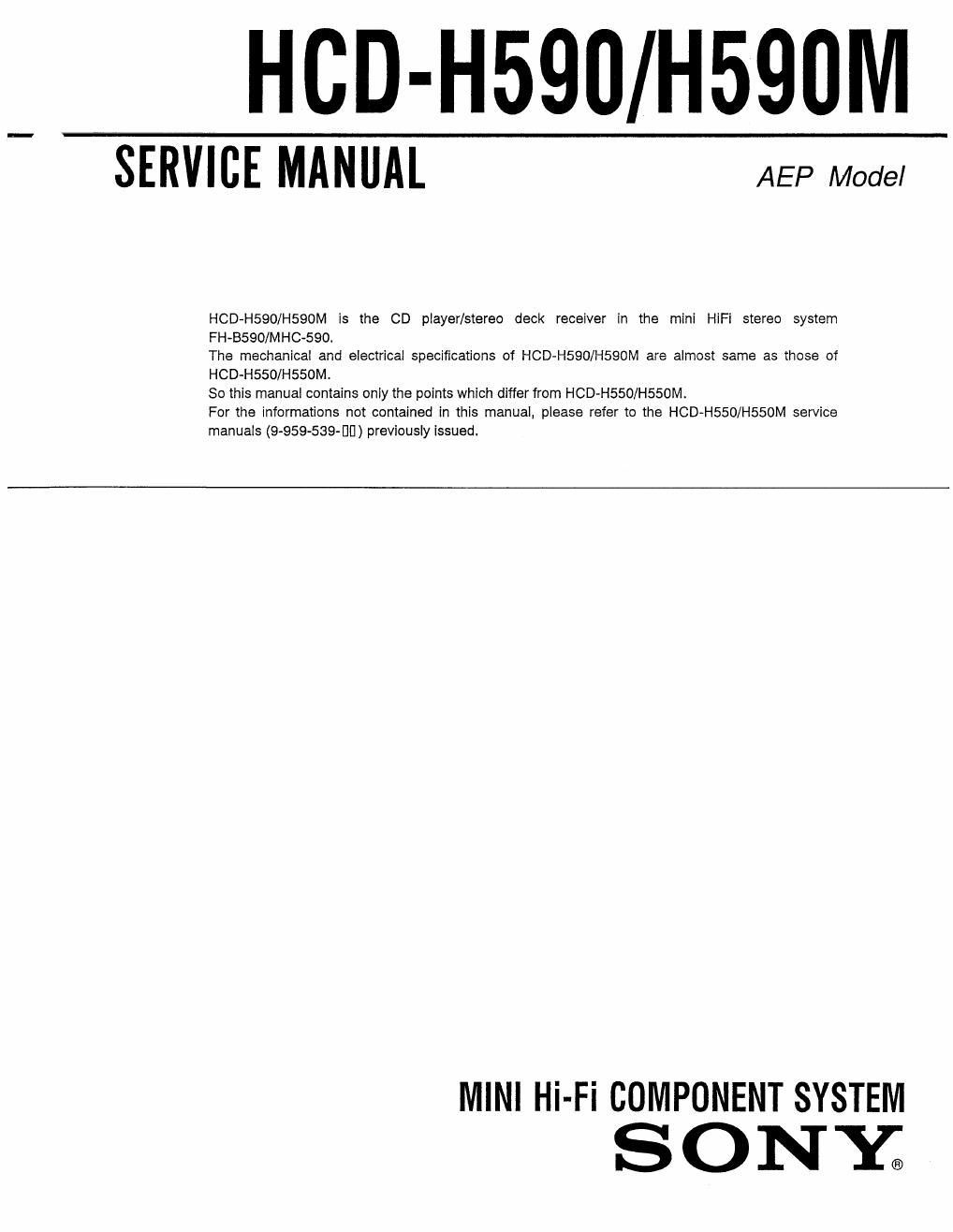

CD-H590/H590M

SERVICE MANUAL AEP Model

HCD-H590/H590M is the CD player/stereo deck receiver in the mini HiFi stereo system
FH~BSQOIMHC~590.

The mechanical and electrical specifications of HCD-HSSO/HSQOM are almost same as those of
HCD~H550IH550M.

So this manual contains only the points which differ from HCD-H550/H550M.

For the inlormations not contained in this manual, please refer to the HCD-HSSO/HSSOM service
manuals (9-959-539410) previously issued.

MINI Hi-Fi COMPONENT SYSTEM

SONZ

Page 2

0 DIFFERENT PARTS LIST

NOTE:

I Items marked "* " are no: stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering

these items.

I Abbreiations

5 :H550

G :Gennan

M: HSSOM EE : East European

critical for safety,

specified.

The components identified by mark
A or dotted line with mark A are

Replace only with pan number

IT :Italian

Page Ref. NO. HCD-H550/H550M HCD-H590/H590M
1 X-4945-164-1 LID (B) ASSY, CASSETTE X-4945-554-1 LID (B) ASSY, CASSETTE
Z X-4945-163-1 LID (A) ASSY, CASSETTE X-4945-553-1 LID (A) ASSY, CASSETTE
4 *A-636963G-A POWER BOARD, COMPLETE *A-4369-636-A POWER BOARD. COMPLETE (AEP,EE)
(51AEP, CIS/M:AEP, EE)
4 tA-6369-633-A POWER BOARD, COMPLETE (5zG/M21T) *A-4369-638-A POWER BOARD, COMPLETE (G, IT)
8 A1-575-651-21 CORD, POWER Al-STS-GSl-ZI CORD, POWER (AEP,EE)
(5zAEP, CIS, EA, MY, SP/MZAEP, EB)
54 3 AI-765-650-11 CORD, POWER (5zG/MIIT) A1-765-650-11 CORD, POWER (G, IT)
10 4-963-306-51 CASE (M) 4-963-306-52 CASE (HSEUM)
IO 4-964-234-41 CASE (FH) (S:AEP,G.CIS) *4-964-234-41 CASE (FH) (H590)
12 *A-4369-619-A MAIN BOARD, COMPLETE (MzEE) *A~4377464~A MAIN BOARD, COMPLETE (H5902EE)
12 *A-4369-E40-A MAIN BOARD, COMPLETE (M:IT) tA-4369-640-A MAIN BOARD, COMPLETE (H590M:G, IT)
12 *A-4369'617-A MAIN BOARD, WMPLETES (5:AEP) *A-4369-617-A MAIN BOARD, COMPLETE (HSQUzAEP)
12 *A-4369-639-A MAIN BOARD, CDMPLETES (MzAEP) *A-4369-639-A MAIN BOARD, COMPLETE (H590M1AEP)
18 1-765-477-21 WIRE (FLAT TYPE) (9 CORE) 1-765-477-31 WIRE (FLAT TYPE) (9 CORE)
51 *X-4944-703-1 PANEL ASSY, FRONT (SzAEP, G. CIS) #Xv4945552-1 PANEL ASSY. FRONT (H590)
51 *K-4944-817-1 PANEL ASSY, FRONT (M) 4945-5734 PANEL ASSY, FRONT (HSSUM)
SZ 4-965-452-01 BUTTON (E) (L) 4-965452--11 BUTTON (E) (L)
53 X-4944-434-1 BUTTON (M1) ASSY X~4945~550~1 BUTTON (Ml) ASSY
54 *A-4369-630-A DISPLAY BOARD, COMPLETE (MZEE) *A-4369-630-A DISPLAY BOARD. COMPLETE (EE)
54 *A-4369-631-A DISPLAY BOARD, COMPLETE (5:6) *A-4359-631-A DISPLAY BOARD. COMPLETE (G)
54 *A-4371-I4Z-A DISPLAY BOARD, COMPLETE (M:IT) *A-ASTPIAZ-A DISPLAY BOARD, COMPLETE (IT)
57 4-963-286-11 PANEL, LOADING 4-963-286-21 PANEL, LOADING
58 X-4944-415~I HOLDER (L) ASSY, CASSETTE K-4945-776-1 HOLDER (L) ASSY, CASSETTE
55 61 1-765-481-21 WIRE (FLAT TYPE) (21 CORE) 1-765-481~31 WIRE (FLAT TYPE) (21 CORE)
62 1-765478-21 WIRE (FLAT TYPE) (11 CORE) 1-765-478-31 WIRE (FLAT TYPE) (11 CORE)
54 X-4944-416-3 HOLDER (R) ASSY, CASSETTE X-4945-777-I HOLDER (R) ASSY, CASSETTE
65 1-765-480-21 WIRE (FLAT TYPE) (19 CORE) 1*765-480-31 WIRE (FLAT TYPE) (19 CORE)
66 X-4944-701-1 BUTTON (M2) ASSY X-4945-551-1 BUTTON (M2) ASSY
67 4-965-453701 BUTTON (E) (R) 4-965-453-11 BUTTON (E) (R)
69 4'963'655-01 BUTTON (CDP) 4-963-655-11 BUTTON (CDP)
70 4-963-284-11 KNOB (S) 4-963-284-21 KNOB (S)
74 *A4369-~524-A SWITCH BOARD. COMPLETE *A~4359-624A SWITCH BOARD. COMPLETE (AEP.EE)
(SzAEP. CIS/MzAEP, BE)
74 tA-4369-626-A SWITCH BOARD, COMPLETE (5:G/M:IT) *A-4369-626-A SWITCH BOARD, COMPLETE (6, IT)
ACCESSORIES & PACKING MATERIALS
78 -- *4-965-152-01 CUSHION (FRONT)
*4-965-153-01 CUSHION (REAR)
