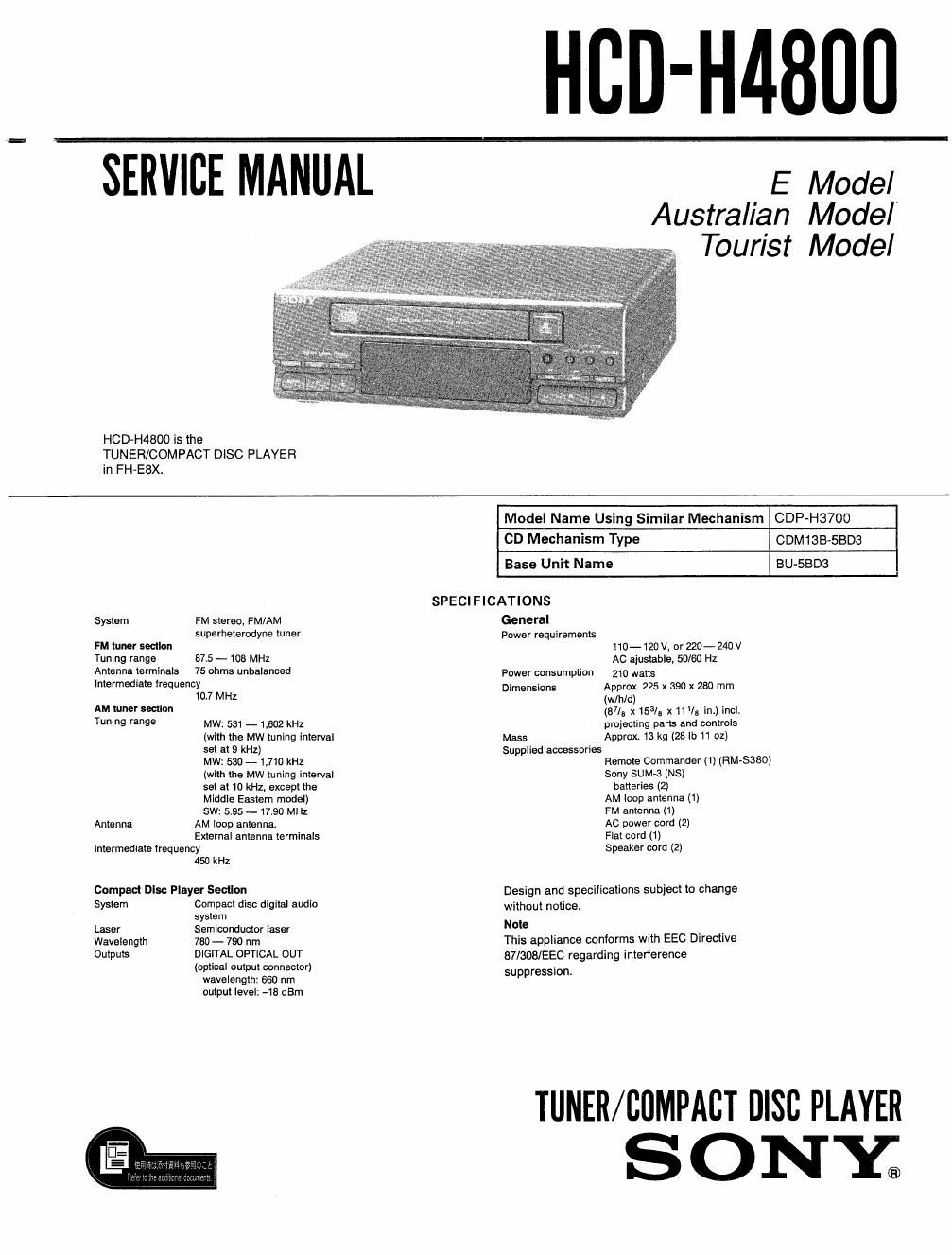

HCD-H4800
SERVICE MANUAL E Model
Australian Model
Tourist Model
HCD-H4800 is the
TUNER/COMPACT DISC PLAYER
in FH
CD Mechanism Type CDM13B-5BD3
Base Unit Name BU-SBDs
SPECIFICATIONS
System FM stereo, FM/AM General
superheterodyne tuner Power requirements
FMiunersocilon 110-120V, or 220-240V
Tuning range 57.5 - 108 MHz AC aiustable. 50/60 Hz
Antenna terminals 75 ohms unbalanced Power consumption 210 watts
intermediate irequency Dimensions Approx. 225 x 390 x 280 mm
10.7 MHz (w/hld)
AM WWW" (37/. x153]. x 11 v8 in.) incl.
Tuning range MW: 531 - 1,602 kHz projecting parts and controls
(with the MW tuning interval Mass Approx 13 kg (28 lb 11 02)
set at 9 kHz) Supplied accessories
MW: 530 - 1,710 kHz Remote Commander (1) (RM-8380)
(with the MW tuning interval Sony SUM-a (NS)
set at 10 kHz, except the batteries (2)
Middle Eastern model) AM loop antenna (1)
SW: 5.95 - 17.90 MHz FM antenna (1)
Antenna AM loop antenna, AC power cord (2)
External antenna terminals Fiat cord (1)
intermediate lrequency Speaker cord (2)
450 kHz
Compact 9'50 all 5M0" Design and specifications subject to change
System Compact disc digital audio without notice.
system
Laser Semiconductor laser "9 . ,
Wavelength 780 - 790 nm This appliance conforms with EEC Directive
0MPis DlGlTAL OPTICAL OUT 87/3081EEC regarding interference
(oplical output connector)
wavelengih: 660 nm
output level: -18 dam
suppression.
TUNER/COMPACT Disc PLAYER
S 0 NE
