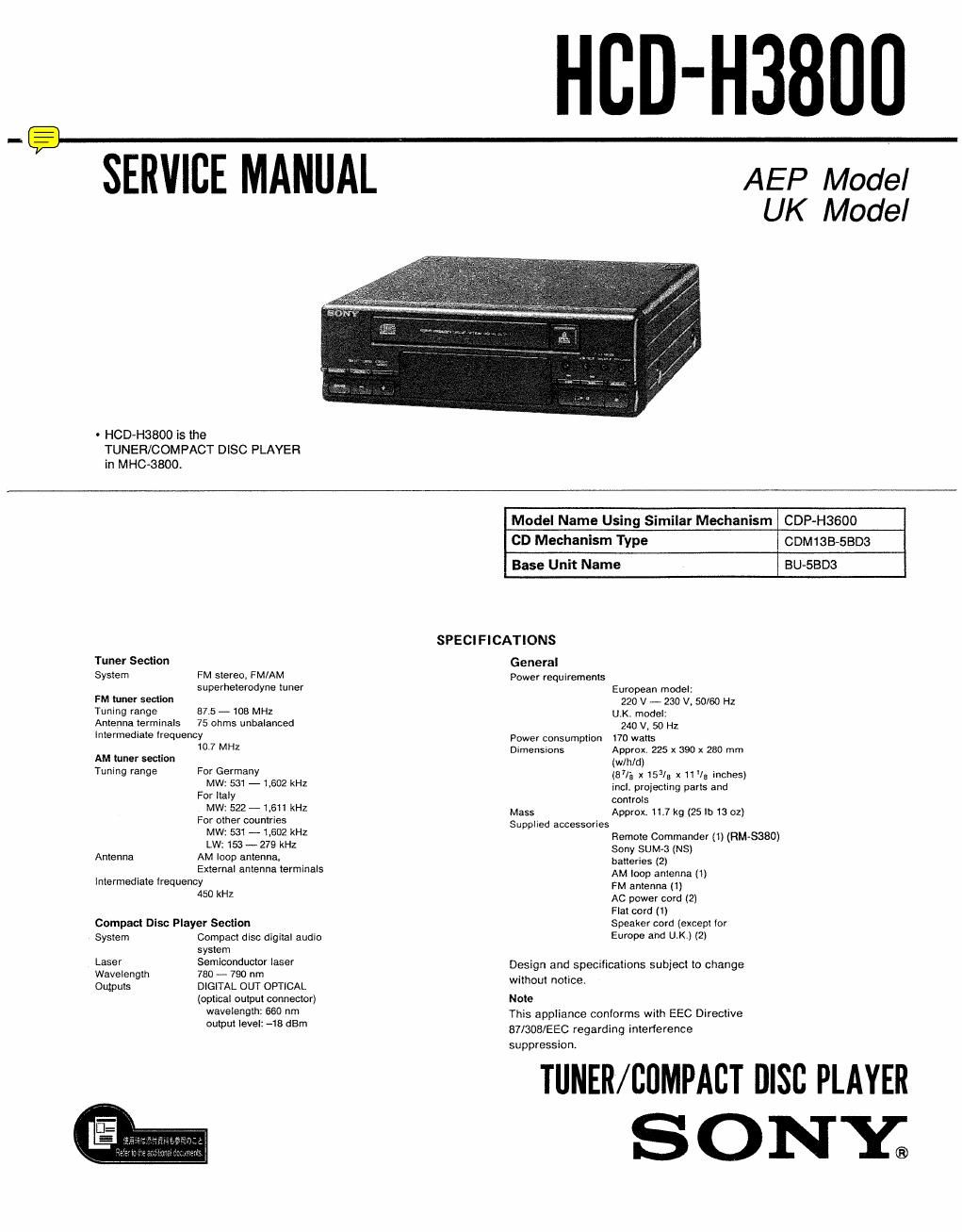

Page 1

HCD-H3800

SERVICE MANUAL AEP Model

UK Model

' HOD-H3800 is the
TUNER/COMPACT DISC PLAYER

in MHC-3800.
Model Name Using Similar Mechanism CDP-H3600
CD Mechanism Type CDM13B~SBDa
Base Unit Name BU-SBD3
SPECIFICATIONS
Tuner Section General
System FM stereo, FM/AM Power requiremenls
superheterodyne tuner European model:
FM tuner section 220 V .. 230 V. 50/60 Hz
Tuning range 87,5 "103 MHz U.K. model:
Antenna terminals 75 Ohms unbalanced 240 V 50 Hz
Intermediate lrequency Power consumption 70 watls
10.7 MHZ Dimensions Approx. 225 x 390 x 230 mm
AM tuner sectlon (w/h/d)
Tuning range For Germany (371-3 x153, x 1w. inches}
MW: 531 - 1.602 kHz incl. projectlng parts and
For "aly controls
MW: 522 -1-5 HZ Mass Approx. 11.7 kg (25 lb 13 01)
For other countries suppfied accessories
MW: 531 -- 1,602 kHz Remote Commander m (RM~8380)
LW: 153 ~ 279 kHz Sony 5U. (NS)
Antenna AM loop antenna. batteries (2)
External antenna terminals AM loop anlenna (1)
intermediate frequency FM antenna (1)
450 kHz AC power cord (2)
Flat cord (1)
Compact Disc Player Section Speaker Cord (excepl '0'
System Compact disc digital audio Europe and U-K') (2)
system
Laser Semiconductor laser Design and specifications subject to change
Wavelength 780 # 790 nm .
Outputs DIGITAL OUT OPTICAL w'mcu ouce
(optical output connector) Note
wavelength: 660 "m This appliance contorms with EEC Directive
output 'eve': '13 dam 87/308lEEC regarding interference

suppression,

TUNER/COMPACT DISC PLAYER
S ONY®
