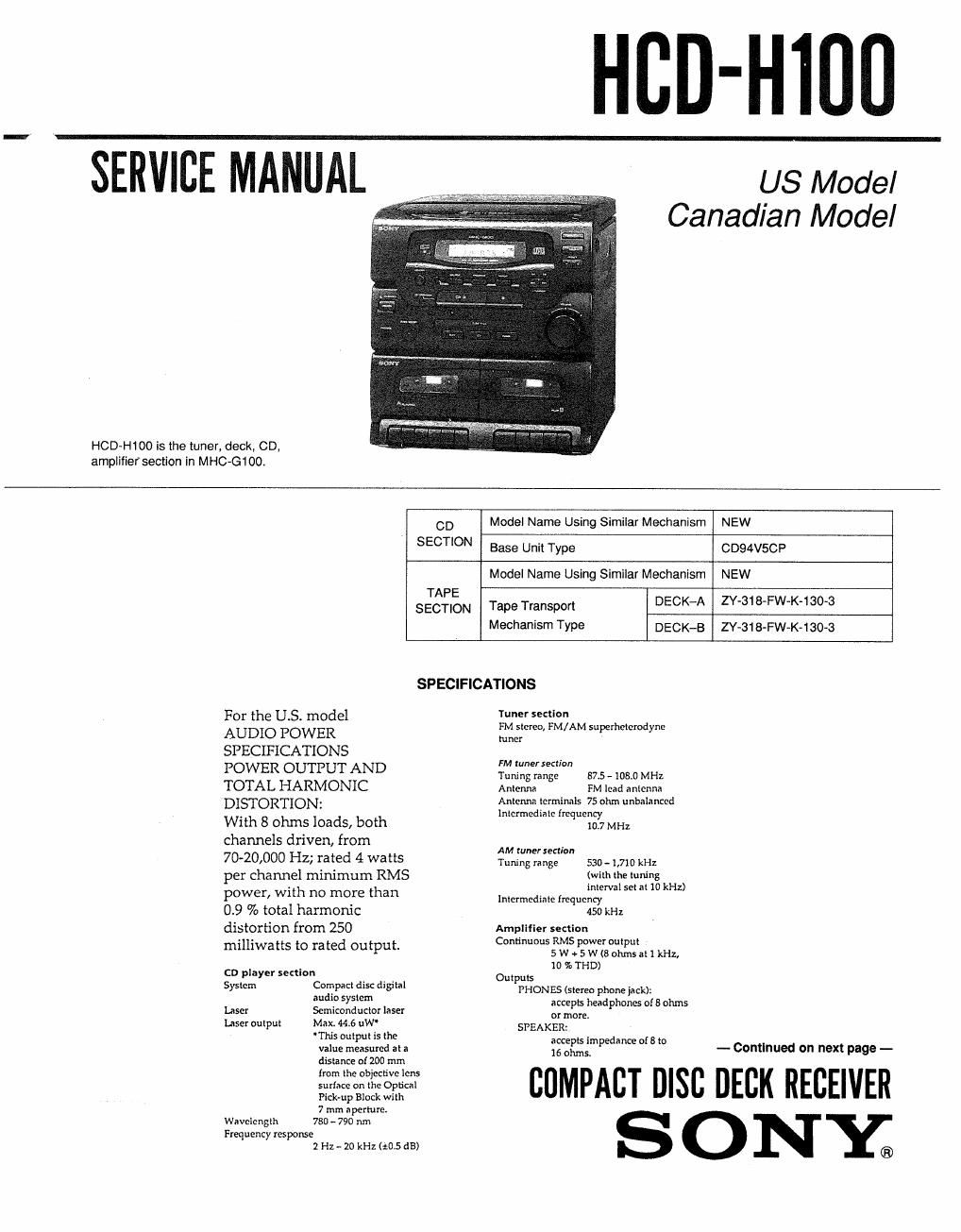

Page 1
-
HCD-Hlflfl
§ SERVICE MANUAL
HCD-H100 is Ihe tuner, deck, CD,
amplitiersection in MHC-G100.
US Model
Canadian Model
CD Model Name Using Similar Mechanism NEW
8'30) Base Unit Type cos4vscp
Model Name Using Similar Mechanism NEW
TAPE
SECTION Tape Transport DECK-A ZY-31B-FW-K-130-3
Mechanism Type DECK-B ZY-318-FW-K-130-3
SPECIFICATIONS
For the US. model 33"" can, h d
slcrco, su r own) he
AUDIO POWER m, P
SPECIFICATIONS
FM tuner section
POWER OUTPUT AND Tuning range 87.5 - 108.0 MHz
TOTAL HARMONIC Anlenna FM lead antenna
DISTORTIONZ Antenna terminals 75 ohm unbalanced
. 1 cd t
With 8 ohms loads/ both mm me (ONES; MHz
channels driven, from
70-20,000 Hz; rated 4 watts
per channel minimum RMS
power, with no more than
09 % total harmonic
distortion from 250
milliwatts to rated output.
co player section
System
audio system
Laser Semiconductor lam
Max. 44.6 uW'
This output is Ihe
Laser oulput
Compact disc digital
AM tuner section
Tuning range 530 - 1,710 kHz
(with ma tuning
interval set at 10 kHz)
Inlermediate lmqucnq
450 kHz
Amplifier section
Continuous RMS power outpuI
5W¢5W(8ohmsat1kH7-,
10 71: THD)
Outputs
PHONES (stereo phone jack):
accepts headphones of 8 ohms
or more.
SPEAKER:
value measured at a
distance a! 200 mm
from the objective lens
sumac on the Optical
Pick-up Black with
7 mm aperture.
Wavelength 780 - 790 nm
Frequency response
2 Hz - 20 kHz (20.5 dB)
accepts impedance of 8 to
15 ohms, - Continued on next page -
COMPACT DISC DECK RECEIVER
SONY;
