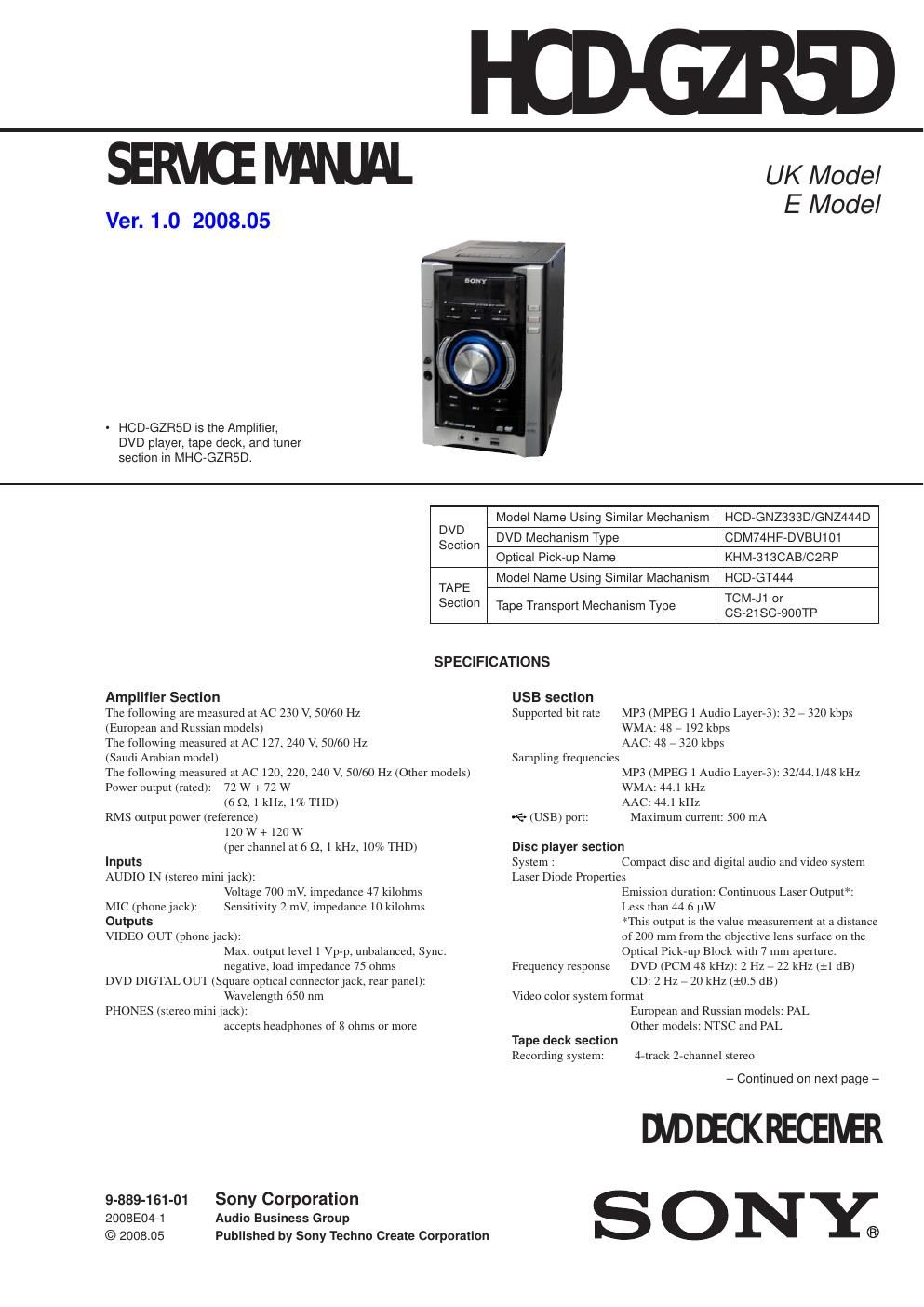

SERIICE IVMIIAL

Ver. 1.0 2008.05

- HCD-GZRSD is the Amplifier,
DVD player, tape deck, and tuner
section in MHC-GZRSD.

UK Model
E Model

Model Name Using Similar Mechanism HCD-GNZ333D/GNZ444D
3:50 DVD Mechanism Type CDM74HF-DVBU101

Optical Pick-up Name KHM-313CAB/CZFIP
TAPE Model Name Using Similar Machanism HCD-GT444
Section . TCM-J1 or

Tape Transport Mechanism Type 0321309001.},
SPECIFICATIONS

Amplifier Section
The following are measured at AC 230 V, 50/60 Hz
(European and Russian models)
The following measured at AC 127, 240 V, 50/60 Hz
(Saudi Arabian model)
The following measured at AC 120. 220, 240 V, 50/60 Hz (Other models)
Power output (rated): 72 W + 72 W
(6 Q, 1 kHz, 1% THD)
RMS output power (reference)
120 W + 120 W
(per channel at 6 Q. 1 kHz, 10% THD)
Inputs
AUDIO IN (stereo mini jack):
Voltage 700 mV. impedance 47 kilohms

MIC (phonejack): Sensitivity 2 mV, impedance 10 kilohms
Outputs
VIDEO OUT (phone jack):

Max. output level 1 Vp-p, imbalanced, Sync.
negative. load impedance 75 ohms

DVD DIGTAL OUT (Square optical connector'jack, rear panel):
Wavelength 650 nm

PHONES (stereo mini jack):
accepts headphones of 8 ohms or more

9-889-161-01 Sony Corporation
2008E04-1 Audio Business Group
© 2008.05 Published by Sony Techno Create Corporation

USB section
Supported bit rate MP3 (MPEG 1 Audio Layer-3): 32 - 320 kbps
WMA: 48 - 192 kbps
AAC: 48 - 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3): 32/44.1/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
'6' (USB) port: Maximum current: 500 mA
Disc player section
System : Compact disc and digital audio and Video system
Laser Diode Properties
Emission duration: Continuous Laser Output":
Less than 44.6 pW
*This output is the value measurement at a distance
of 200 mm from the objective lens surface on the
Optical Pick-up Block with 7 mm aperture.

DVD (PCM 48 kHz): 2 Hz - 22 kHz (:1 dB)

CD: 2 Hz - 20 kHz (10.5 dB)
Video color system format

European and Russian models: PAL
Other models: NTSC and PAL

Frequency response

Tape deck section

Recording system: 4-track 2-channel stereo

- Continued on next page -

MDHKRHIMR
S 0 NY;

Page 2

HCD-GZR5D

Tuner section
FM stereo, FM/AM superheterndyne tuner

FM tuner section
Tuning range: 87.5 - 108.0 MHZ (50 kHz step)
Antenna: EM lead antenna

Antenna terminals: 75 ohms unbalanced

Intermediate frequency: 10.7 MHZ

AM tuner section
Tuning range: European, Russian and Saudi Arabian models:
531 - 1,602 k1-lz(9 kl-lz step)

Other models:

531 - 1,602 kI-Iz (with 9 kHz tuning interval)
530 - 1,610 kI-Iz (with 10 kHz tuning interval)
Antenna: AM loop antenna

Antenna terminals: External antenna terminal

Intermediate frequency: 450 kHz

General

Power requirements
European model:
Thai model:

Other models:

AC 230 V, 50/60 Hz
AC 220 V, 50/60 Hz
AC 120, 220, 230 - 240 V, 50/60 Hz, adjustable
with voltage selector
Power consumption: 190 W
Dimensions (w/h/d) (excl. speakers):
Approx. 200 x 306 x 415 mm
Mass (excl. speakers): Approx. 7.9 kg

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pickup block may suffer electrostate
ic break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused
on the disc reflective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode em' sion,
observe from more than 30 cm away from the objective lens.

LASER DIODE AND FOCUS SEARCH OPERATION
CHECK

Carry out the S curve check in CD section adjustment and
check that the S curve waveform is output several times.

CAUTION

Use of controls or adjustments or performance oi procedures
other than those specified herein may result in hazardous radia-
tion exposure.

This appliance is classified as
a CLASS 1 LASER product.
This marking is located on the
rear or bottom exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side of a tantalum capacitor may be dame
aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

' Keep the temperature of soldering iron around 270 °C during
repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsolderingi
