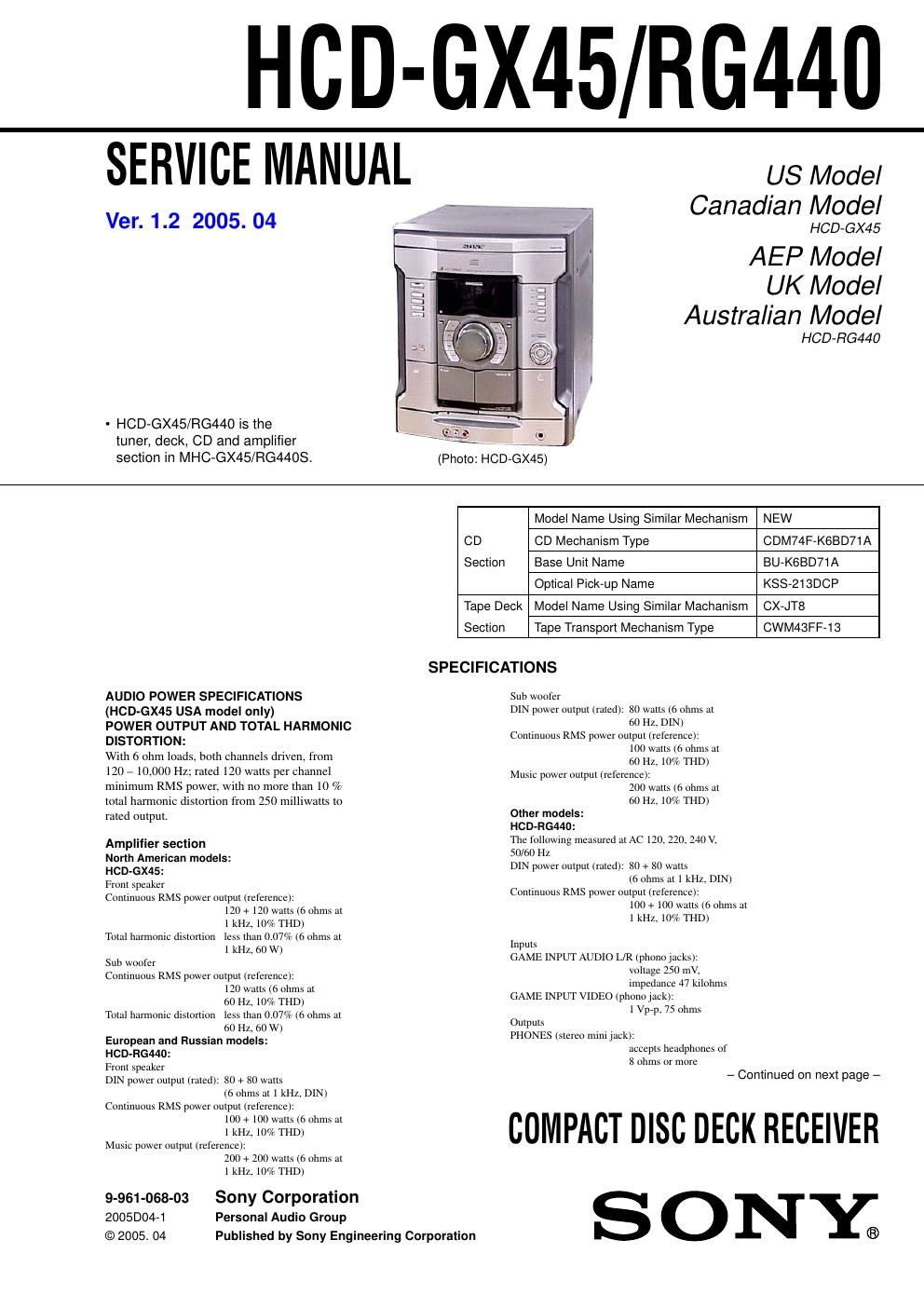

Sony hcd gx 45 rg440 mhc gx 45 rg440s v 1 2
This is the 78 pages manual for sony hcd gx 45 rg440 mhc gx 45 rg440s v 1 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd gx 45 rg440 mhc gx 45 rg440s v 1 2 (Ocr-read)
Page 1
2 HCD-GX45/RG440 VIDEO OUT (phono jack):max. output level 1 Vp-p, unbalanced, Sync negative, load impedance 75 ohms SPEAKER: accepts impedance of 6 to 16 ohms SUB WOOFER OUT: accepts impedance of 6 to 16 ohms CD player sectionSystem Compact disc and digitalaudio system Laser Semiconductor laser (λ =780 nm) Emission duration: continuous Fr equency response 2 Hz – 20 kHz (±0.5 dB) Wa velength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB T ape deck sectionRecording system 4-track 2-channel, stereo Fr equency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner sectionFM stereo, FM/AM superheterodyne tuner FM tuner sectionT uning range Russian models 65.0 – 74.0 MHz (There is no stereo effect) 87.5 – 108.0 MHz Other models 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner sectionT uning range P an-American models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,710 kHz (with the tuning interval set at 9 kHz) European, Russian, Middle Eastern and Philippine models: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz SpeakerNorth American models: Front speaker SS-RG440 for HCD-GX45: Speaker system 3-way, 3-unit, bass-reflex type Speaker units Sub Woofer: 13 cm, cone type W oofer: 13 cm, cone type Tw eeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 240 × 325 × 243 mm Mass Approx. 4.3 kg net per speaker Sub woofer speaker SS-WG990 for HCD-GX45: Speaker system Bass-reflex type Speaker units W oofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 350 mm Mass Approx. 6.4 kg European and Russian models: Front speaker SS-RG440 for HCD-RG440: Speaker system 3-way, 3-unit, bass-reflex type Speaker units W oofer: 13 cm, cone type Sub Woofer: 13 cm, cone type Tw eeter: 5 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 240 × 325 × 243 mm Mass Approx. 4.3 kg net per speaker Sub woofer speaker SS-WG990 for HCD-RG440: Speaker system Bass-reflex type Speaker units W oofer: 20 cm, cone type Nominal impedance 6 ohms Dimensions (w/h/d) Approx. 265 × 325 × 350 mm Mass Approx. 6.4 kg GeneralPo wer requirements North American models: 120 V AC, 60 Hz European and Russian models: 230 V AC, 50/60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Argentine model: 220 V AC, 50/60 Hz Mexican model: 127 V AC, 60 Hz Saudi Arabian model: 120 – 127 V/220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Ko rean model: 220 V AC, 60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Po wer consumption USA model: HCD-GX45: 180 watts European and Russian models: HCD-RG440: 150 watts 0.35 watts (at the Power Saving Mode) Other models: HCD-RG440: 150 watts Dimensions (w/h/d) Approx. 280 × 325 × 407 mm Mass North American models: HCD-GX45: Approx. 9.0 kg European and Russian models: HCD-RG440: Approx. 9.0 kg Supplied accessories: AM loop antenna (1) Remote Commander (1) Batteries (2) FM lead antenna (1) Speaker pads (12) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. HCD-GX45/RG440 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. Notes on Chip Component Replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Ke ep the temperature of soldering iron around 270°C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SETTING AND RELEASING THE CD DISC TRAY LOCK FUNCTION This set has a disc tray lock function to prevent discs for demonstration at shops from theft. While this lock function is set, the tray will not be delivered out even when the OPEN/CLOSE button is pressed. Setting method: Press the OPEN/CLOSE button while pressing the STOP button. After a few seconds, the message LOCKED will appear on the fluorescent indicator tube with the tray locked. Releasing method: Just as the lock is set, press the OPEN/CLOSE button while pressing the STOP button. After a few seconds, the message UNLOCKED will appear with the lock released. To Exposed Metal Parts on Set 0.15µF 1.5k Ω AC voltmeter(0.75V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive V OM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the S curve check in CD section adjustment and check that the S curve waveforms is output three times.
