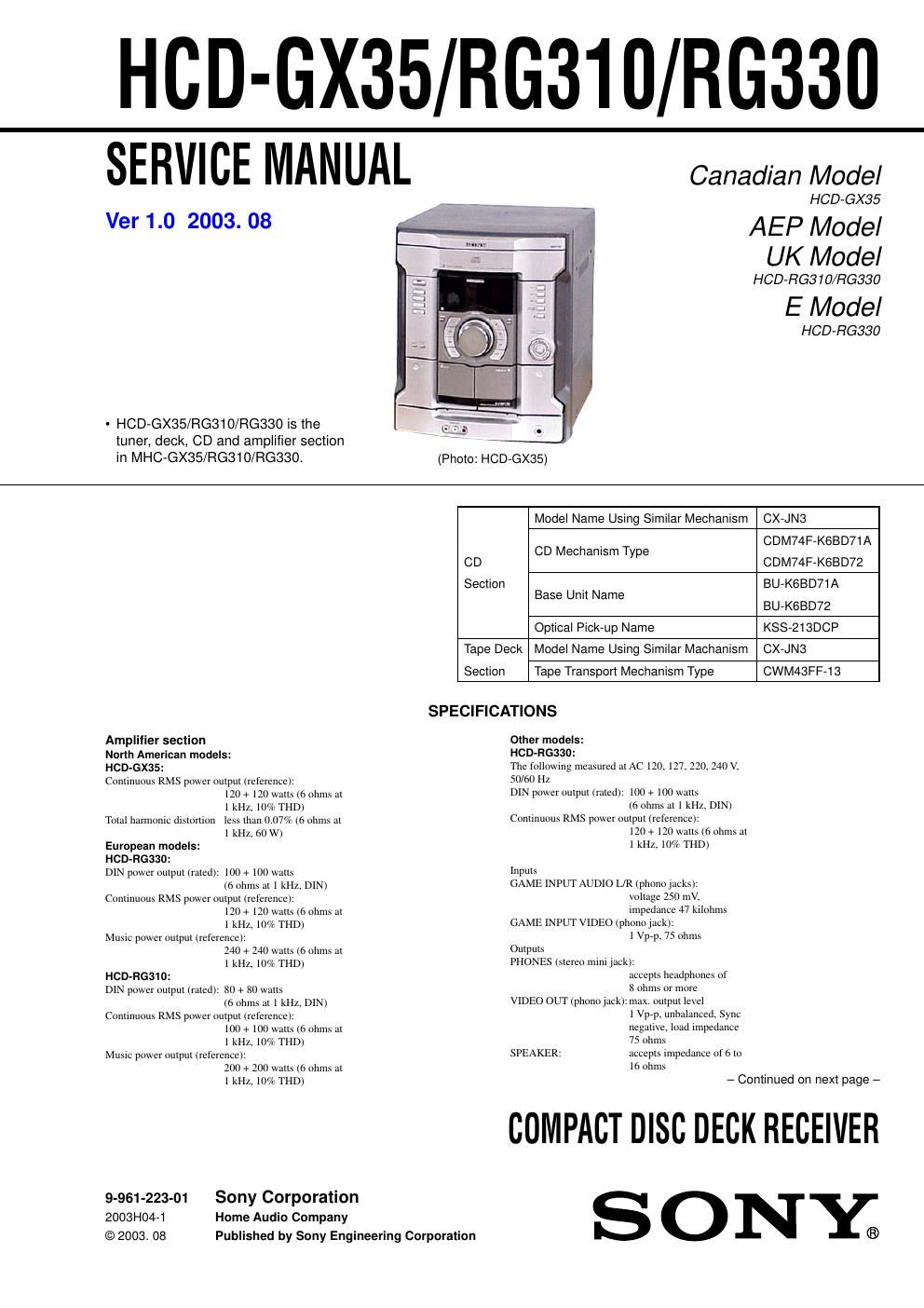

Sony hcd gx 35 rg310 rg330

Page 1

2 HCD-GX35/RG310/RG330 CD player sectionSystem Compact disc and digitalaudio system Laser Semiconductor laser (λ =780 nm) Emission duration: continuous Fr equency response 2 Hz – 20 kHz (±0.5 dB) Wa velength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB T ape deck sectionRecording system 4-track 2-channel, stereo Fr equency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner sectionFM stereo, FM/AM superheterodyne tuner FM tuner sectionT uning range Russian models 65.0 – 74.0 MHz (There is no stereo effect) 87.5 – 108.0 MHz Other models 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner sectionT uning range P an-American models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,710 kHz (with the tuning interval set at 9 kHz) European, Middle Eastern and Philippine models: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz GeneralPo wer requirements North American models: 120 V AC, 60 Hz European models: 230 V AC, 50/60 Hz Argentina model: 220 V AC, 50/60 Hz Mexican model: 127 V AC, 60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Po wer consumption Canadian model: HCD-GX35: 120 watts European models: HCD-RG330: 120 watts 0.35 watts (at the Power Saving Mode) HCD-RG310: 110 watts 0.35 watts (at the Power Saving Mode) Other models: HCD-RG330: 120 watts Dimensions (w/h/d) Approx. 280 × 325 × 407 mm Mass North American models: HCD-GX35: Approx. 9.0 kg European models: HCD-RG330: Approx. 9.0 kg HCD-RG310: Approx. 9.0 kg Other models: HCD-RG330: Approx. 9.0 kg Supplied accessories: AM loop antenna (1) Remote Commander (1) Batteries (2) FM lead antenna (1) Speaker pads (8) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. MODEL IDENTIFICATION – BACK PANEL – MODEL PARTS No. GX35: CND 4-244-697-01 RG330: E2, E51 4-244-697-11 RG310: AEP, UK 4-244-697-21 RG330: AEP, UK, AR, MX - Abbreviation CND : Canadian model E2 : 120 V AC Area in E model E51 : Chilean and Peruvian model AR : Argentina model MX : Mexican model PA R TS No.
