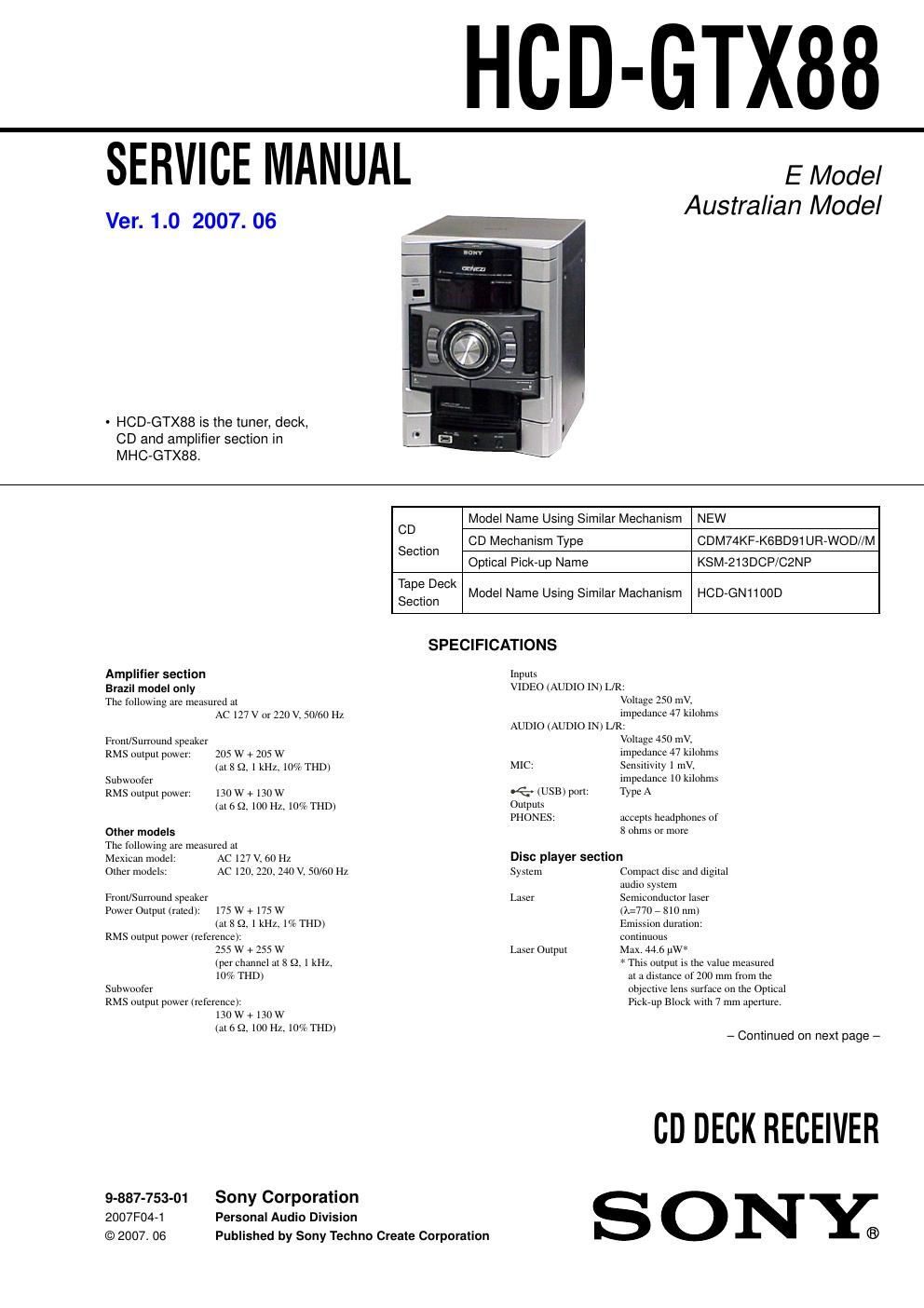

Sony hcd gtx 88 service manual

Page 2

HCD-GTX88

Frequency response 20 Hz 7 20 kHz

Wave length 770 7 810 nm
Sigua17to7noise ratio More than 90 dB
Dynamic range More than 88 dB

Tape deck section

Recording system 47track 27channel stereo

Frequency response 50 7 13,000 Hz (:3 dB)s
using Sony TYPE 1 tape

Tuner section
FM stereo. FM/AM sttperheterodyne tuner

FM tuner section
Tuning range

Brazil model: 87.5 7 108.0 MHz
(100 kHz step)
Other models: 87.5 7 103.0 MHz
(50 kHz step)
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Latin American and Oceanian models:
530 r 1.710 kHz (wuh [he
lnierval se[ a! 10 kHz)
531 r 1.710 kHz (wllh [he
interval set at 9 kHz)
Olher models: 531 r 1,602 kHz (Wllh [he
interval set at 9 kHz)
530 71,61()kHz(wllhlhe
Imerval set at 10 kHz)
Antenna AM loop antenna
Anlenna [ermillals External anienna [ermlnnl
Intermediate frequency 450 kHz

USB section

Supported bli rate MP3 (MPEG 1 Audio Layer 3):

32 r 320 kbps, VBR

Sampling frequencies MP3 (MPEG 1 Audio Layer 3):

32/44.1/4R kHz

Transfer speed FullSpeed
Supported USB device Mass Storage Class
MEIXImum current 500 mA

General

Power requirements

Mexican model: 127 V AC, 60 Hz

Brazil model: 127 V or 220 v AC, 50/60 Hz
Adjustable with vollage
selector

Oceanian tuodel: 230 7 240 v AC, 50/60 Hz

Argentina model: 220 V AC. 50/60 Hz

Other models; 120 V 220 v or 230 7 240 V AC.
50/60 Hz. adjustable with
voltage selector

Power consumption 430 W

Dimensions (w/h/d) (Approx)
281>< 361x 417 mm

Mass (Approx.) 142 kg

Design and .[pet'ifiL'tll/IWS are tub/en! m Lhangk wit/mm
notice.

SAFETY-RELATED COMPONENT WARNING!!

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
