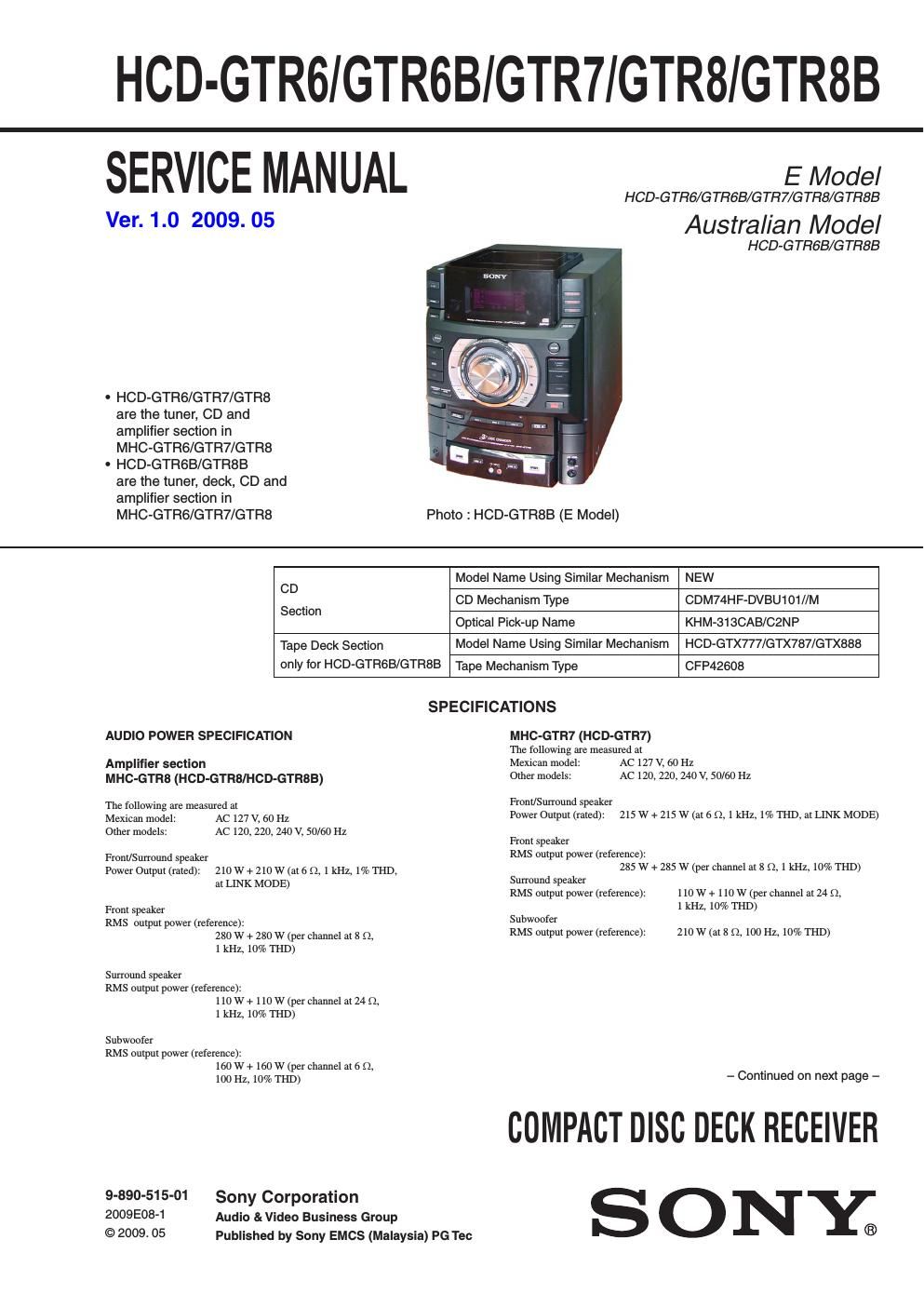

Sony hcd gtr 6 gtr 7 gtr 8

Page 2

HCD-GTR6/GTR6BIGTR7/GTR8/GTRBB

MHC-GTRG (HCD-GTRS/HCD-GTRSB)
The tollowing are measured at
Ac 120, 220, 240 V. 50/60 Hz

Front/Surround speaker

Power Output (rated): 200 w + 200 w (at 4 r1, 1 kHz. 1% THD. at LINK MODE)

Front speaker
RMS output power (reference):

225 W + 225 W (per channel at 8 Q. 1 kHz. 10% THD)

Surround speaker
RMS output power (reference):

225 W + 225 W (per channel at 8 Q, 1 kHz. 10% THD)

inputs
VIDEO (AUDIO IN) UR:

Voltage 250 mV. impedance 47 kilohms
PC IN UR: Voltage 700 mV, impedance 47 kilohms
MIC: Sensitivity 1 mV. impedance 10 kilohms
oe. (USB) port: Type A
Outputs
PHONES: Accepts headphones of s a or more

Disc player section
System Compact disc and digital audio system
Laser Diode Properties Emission Duration: Continuous
Laser 0utput*: Less than 44.6 pw
* This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pickrup Block with 7 mm aperture.
Frequency response 20 Hz 7 20 kHz
Signaletoenoise ratio More than 90 dB
Dynamic range More than 88 dB

Tape deck section
(Except for Latin American and Mexican models)
Recording system 4rtrack Zechannel stereo

Tu net section
FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range
North American models:

87.5 7108.0 MHz (100 kHz step)
Other models: 87.5 7 108.0 MHz (50 kHz step)
Antenna FM lead antenna
Antenna terminals 75 ohms unbalanced
intermediate frequency 10.7 MHz

AM tuner section
Tuning range PanrAmerican and Oceanian models:
530 7 1,710 kHz (with the interval set at 10 kHz)
531 7 1,710 kHz (with the interval set at 9 kHz)
530 7 1,610 kHz (with the interval set at 10 kHz)
531 7 1,602 kHz (with the interval set at 9 kHz)
Antenna AM loop antenna

Antenna terminals External antenna terminal

intermediate frequency 450 kHz

Other models:

USB section

Supported bit rate

MP3 (MPEG 1 Audio Layer 3): 32 r 320 kbpS. V'BR
WMA: 48 r 192 kbpS AAC: 48 r 320 kbps

Sampling frequencies MP3 (MPEG 1 Audio Layer 3): 32144.1/48 kHz

Transfer speed

WMA: 44.1 kHz
AAC: 44.1 kHz
FullrSpeed

Supported USB device Mass Storage Class
Maximum current 500 mA

General

Power requirements

Mexican model: 127 V AC, 60 Hz

Australian model: 230 7 240 V AC. 50/60 Hz

Argentina model: 220 V AC. 50/60 Hz

Other models: 120 V, 220 V or 230 r 240 V AC. 50/60 Hz.

Power consumption

adjustable with voltage selector

MHCVGTR8: 460 W
MHCVGTR7: 440 W
MHCrGTR6: 300 W

Dimensions (w/h/d) (Approx)

Mass (Approx.)

HCDrGTRB/HCDrGTRSB/
HCDrGTR7/
HCDrGTRSMCDrGTRéB: 295x380x457mm

HCDrGTR8B: 16.5 kg
HCDrGTR8/HCDrGTRT 15.8 kg
HCDrGTRSB: 14.5 kg
HCDrGTRS: 13.8 kg

Design and specifications are subject to change without notice.

- Standby power consumption: 0.5 W
- Halogenated flame retardants are not
used in the certain printed wiring boards.

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK A OR DO'I'I'ED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. RE-

PLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR

IN SUPPLEMENTS PUBLISHED BY SONY.
