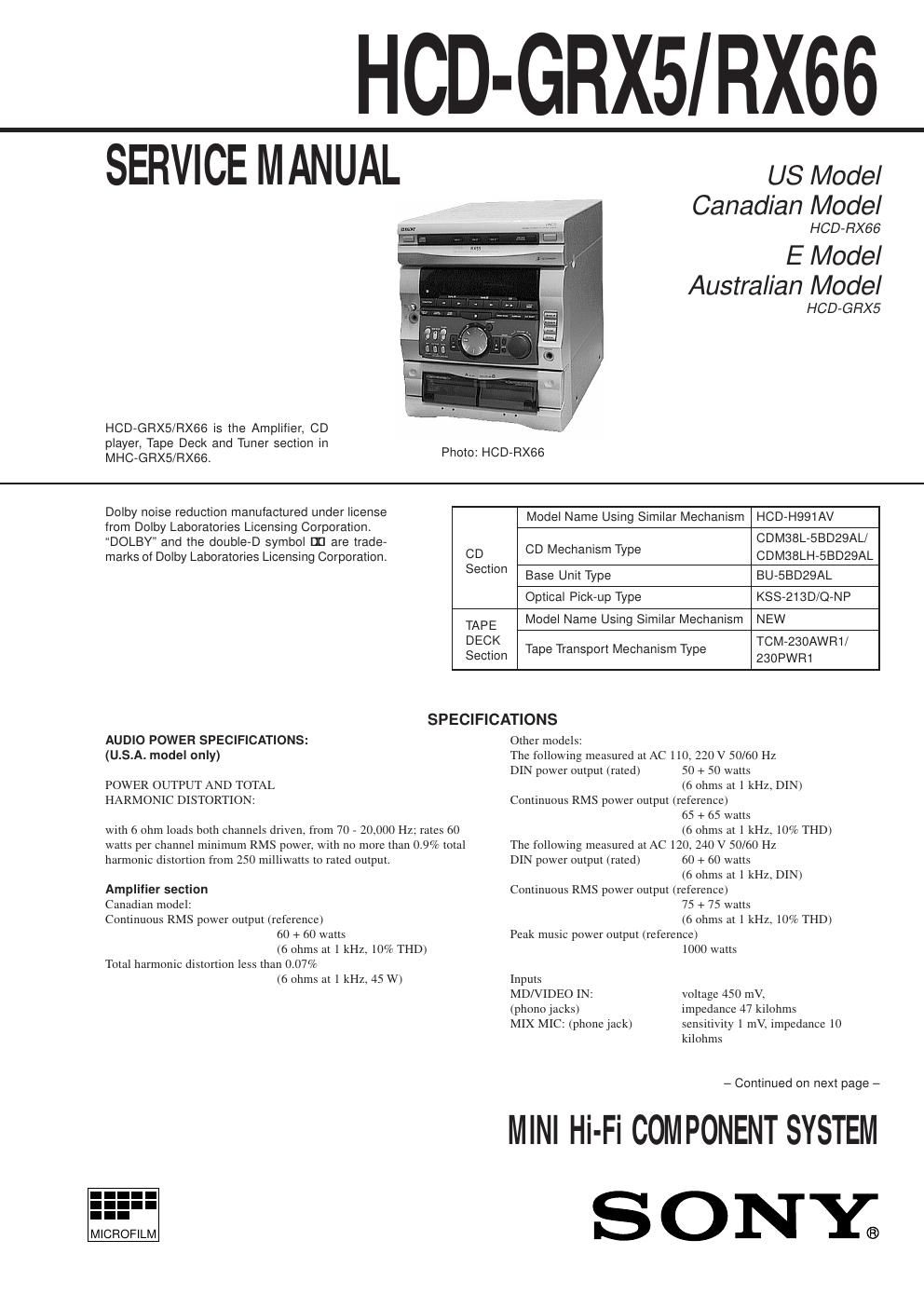

Sony hcd grx 66 service manual

Page 1

Ð 2 Ð Specifications (continued) Outputs MD/VIDEO OUT: voltage 250 mV, (phono jacks) impedance 1 kilohms PHONES: accepts headphones of 8 ohms (stereo phone jack) or more SPEAKER: accepts impedance of 6 to 16 ohms SUPER WOOFER: Voltage 1 V, impedance 1 kilohm CD player section System Compact disc and digital audio system Laser Semiconductor laser (l=780nm) Emission duration: continuous Laser output Max. 44.6 mW* *This output is the value measured at distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz - 20 kHz (±0.5 dB) Wavelength 780 -790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 600 nm Output Level -18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 - 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I cassette 40 - 14,000 Hz (±3 dB), using Sony TYPE II cassette Wow and flutter ±0.15% W.Peak (IEC) 0.1% W.RMS (NAB) ±0.2% W.Peak (DIN) Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range 87.5 - 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner sectionTuning range North American models: 530 - 1,710 kHz (with the interval set at 10 kHz) 531 - 1,710 kHz (with the interval set at 9 kHz) Middle Eastern models: MW: 531 - 1,602 kHz (with the interval set at 9 kHz) SW: 5.95 - 17.90 MHz (with the interval set at 5 kHz) Other models: MW: 531 - 1,602 kHz (with the interval set at 9 kHz) 530 - 1,710 kHz (with the interval set at 10 kHz) SW: 5.95 - 17.90 MHz (with the interval set at 5 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHzGeneral Power requirements North American models: 120 V AC, 60 Hz Mexican model: 120 V AC, 50/60 Hz Australian, and Israel models: 220 - 240 V AC, 50/60 Hz Thai model: 220 - 240 V AC, 50/60 Hz Other models: 110 - 120 V or 220 - 240 V AC, 50/60 Hz Power consumption U.S.A. model: 140 watts Canadian model: 120 watts Other models: 140 watts Dimensions (w/h/d) Approx. 280 ´ 335 ´ 380 mm (11 1/8 ´ 13 1/8 ´ 15 in.) Mass U.S.A. model: Approx. 8.8 kg (19 lbs. 6 oz.) Canadian model: Approx. 8.4 kg (18 lbs. 8 oz.) Other models: Approx. 9.4 kg (20 lbs. 12 oz.) Supplied accessories: AM loop antenna (1) Remote RM-SR5 (1) Batteries (2) FM lead antenna (1) Speaker cords (2) Front speaker pads (8) Design and specifications are subject to change without notice.
