Sony hcd grx 5 pages 1 30

Page 1

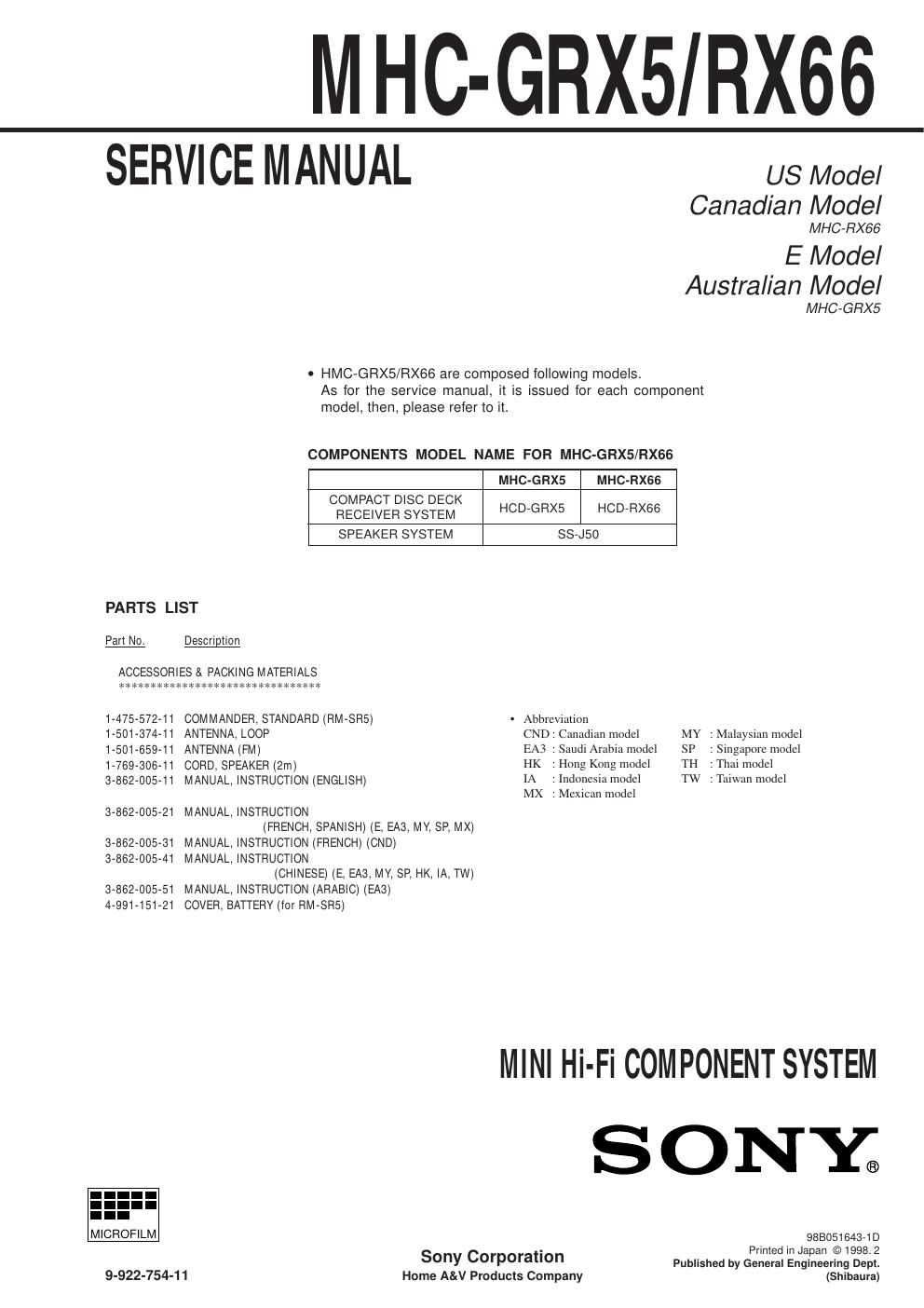

MICROFILM SERVICE MANUAL MINI Hi-Fi COMPONENT SYSTEM US Model Canadian Model HCD-RX66 E Model Australian Model HCD-GRX5 Model Name Using Similar Mechanism HCD-H991AV CD Mechanism TypeCDM38L-5BD29AL/ CDM38LH-5BD29AL Base Unit Type BU-5BD29AL Optical Pick-up Type KSS-213D/Q-NP Model Name Using Similar Mechanism NEW Tape Transport Mechanism TypeTCM-230AWR1/ 230PWR1 HCD-GRX5/RX66 HCD-GRX5/RX66 is the Amplifier, CD player, Tape Deck and Tuner section in MHC-GRX5/RX66.Photo: HCD-RX66 Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. ÒDOLBYÓ and the double-D symbol a are trade- marks of Dolby Laboratories Licensing Corporation.CD Section TAPE DECK Section SPECIFICATIONS AUDIO POWER SPECIFICATIONS: (U.S.A. model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, from 70 - 20,000 Hz; rates 60 watts per channel minimum RMS power, with no more than 0.9% total harmonic distortion from 250 milliwatts to rated output. Amplifier section Canadian model: Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Total harmonic distortion less than 0.07% (6 ohms at 1 kHz, 45 W)Other models: The following measured at AC 110, 220 V 50/60 Hz DIN power output (rated) 50 + 50 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 65 + 65 watts (6 ohms at 1 kHz, 10% THD) The following measured at AC 120, 240 V 50/60 Hz DIN power output (rated) 60 + 60 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 75 + 75 watts (6 ohms at 1 kHz, 10% THD) Peak music power output (reference) 1000 watts Inputs MD/VIDEO IN: voltage 450 mV, (phono jacks) impedance 47 kilohms MIX MIC: (phone jack) sensitivity 1 mV, impedance 10 kilohms Ð Continued on next page Ð
