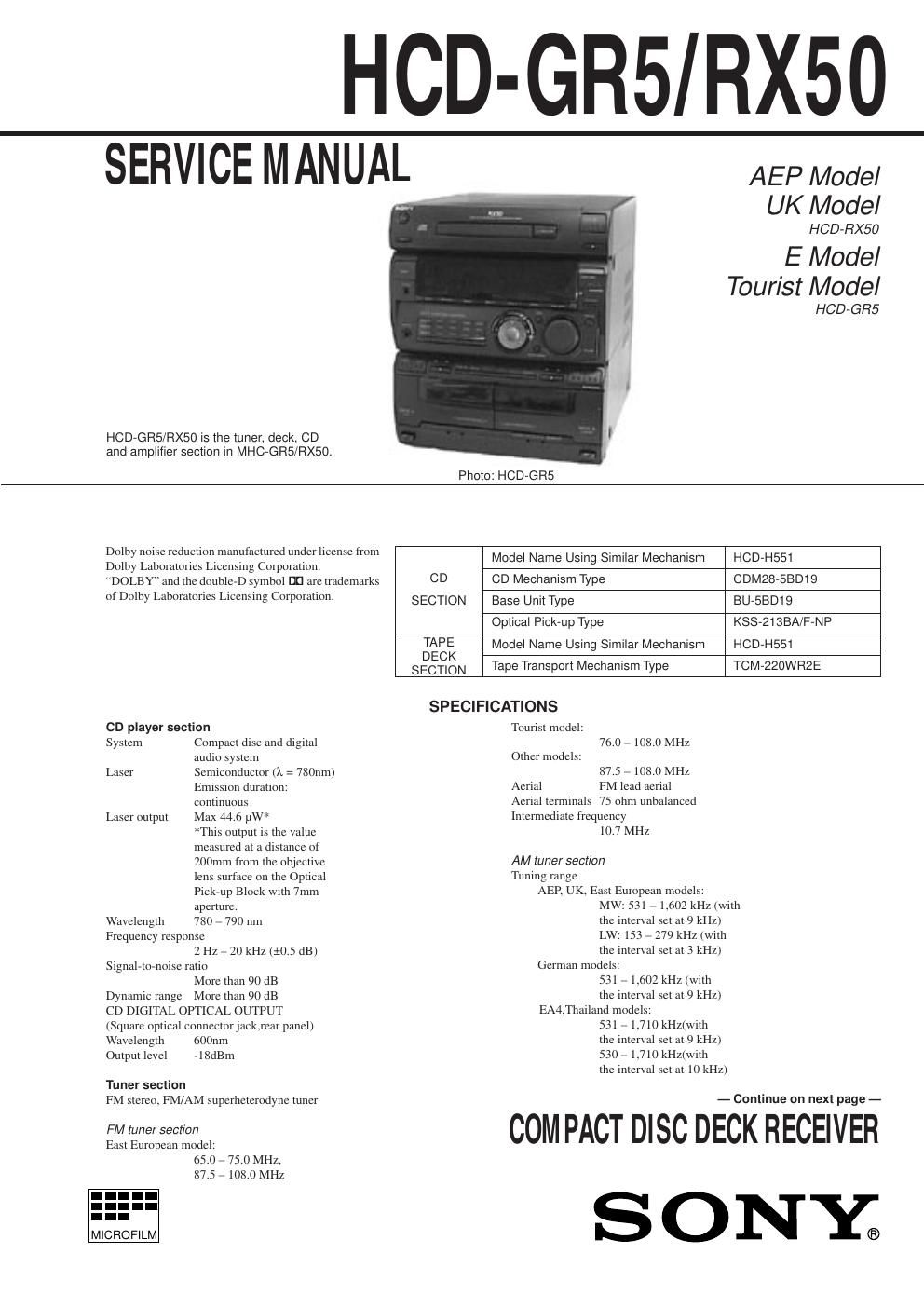

Sony hcd gr 5 rx50
This is the 66 pages manual for sony hcd gr 5 rx50.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd gr 5 rx50 (Ocr-read)
Page 1
Ñ 2 Ñ Other models: MW: 531 Ð 1,602 kHz (with the interval set at 9 kHz) MW: 530 Ð 1,710 kHz (with the interval set at 10 kHz) SW: 5.95 Ð 17.90 MHz (with the interval set at 10 kHz) Antenna AM loop antenna, External antenna terminals Intermediate frequency 450 kHz Amplifier section (AEP,UK,German,East European models) DIN power output 40W+40W (6 ohms, at 1kHz, DIN) Continuous RMS power output 50W+50W (6 ohms, at 1kHz, 10% THD) Music power output 85W+85W (6 ohms, at 1kHz, 10% THD) (Other models) Peak music power output 800W Continuous RMS power output 50W+50W (6 ohms, at 1kHz, 10% THD) Inputs MIX MIC (phone jacks): sensitivity 1 mV, impedance 10 kilohms AUDIO IN: Audio (Phono Jacks) Voltage 450mV Impedance 47 kilohms Outputs PHONES (stereo phone jack): accepts headphones of 8 ohms or more. SPEAKER: accepts impedance of 6 to 16 ohms. AUDIO OUT: Audio (Phono Jacks) Voltage 450mV Impedance 1 kilohms GR5 model: SUPPER WOOFER: Voltage 1 V, impedance 1 kilohms Tape player section Recording system 4-track 2-channel stereo Frequency response (DOLBY NR OFF) 40 Ð 13,000 Hz (±3 dB), using Sony TYPE I cassette 40 Ð 14,000 Hz (±3 dB), using Sony TYPE II cassette Wow and flutter 0.3% W.RMS (NAB)General Power requirements AEP,UK,German,East European models: 220 Ð 230 V AC, 50/60 Hz EA4,Thailand models: 220 Ð 240 V AC, 50/60 Hz Other models: 110 Ð 120 V, 220 Ð 240 V AC, 50/60 Hz Adjustable with the voltage selector Power consumption 95 W Dimensions Approx. 280 x 330 x 360 mm (11 1/8 x 13 x 14 1/4 in) (w/h/d) incl. projecting parts and controls Mass Approx. 7.5 kg (16 lb 9 oz) Design and specifications are subject to change without notice. ¥ Abbreviation EA4: Without voltage selector Saudi Arabia model
Page 2
Ñ 3 Ñ MODEL PARTS No. GR5 : E model GR5 : EA3,Taiwan, Tourist model GR5 : Singapore,Malaysia model GR5 : Hong Kong model GR5 : Indonesian model GR5 : EA4,Thailand model RX50 : AEP,German model RX50 : UK model RX50 : East European model SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement ¥ Never reuse a disconnected chip component. ¥ Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing ¥ Keep the temperature of soldering iron around 270ûC during repairing. ¥ Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). ¥ Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This caution label is located inside the unit. MODEL IDENTIFICATION Ñ BACK PANEL Ñ Parts No. 4-988-833-0¹ 4-988-833-1¹ 4-988-833-2¹ 4-988-833-3¹ 4-988-833-4¹ 4-988-833-5¹ 4-988-834-0¹ 4-988-834-1¹ 4-988-834-2¹ ¥ Abbreviation EA3: With voltage selector Saudi Arabia model. EA4: Without voltage selector Saudi Arabia model.
