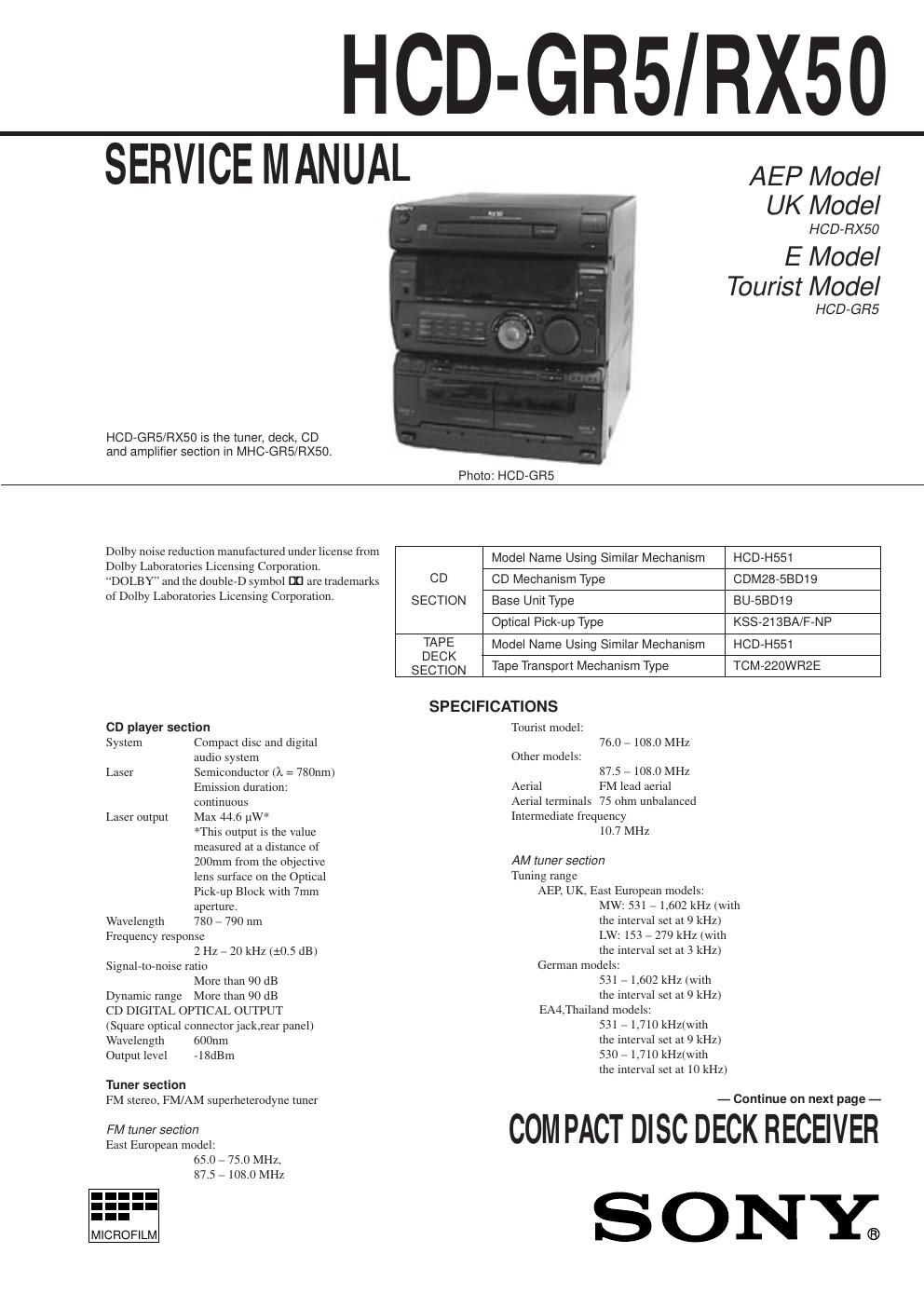

Page 1

HCD-GR5/RX50

SERVICE MANUAL

AEP Model
UK Model

HCD-FIX50

E Model

I .
, Tour/st Model
/ HOD-6R5
I
HCD-GRS/FIXSO is the tuner, deck, CD
and amplifier section in MHC-GRS/FIXSO.
Photo: HCD-GRS
Dolby noise reduction manufactured under license from Model Name Using Similar Mechanism HCD-H551
Dolby Laboratories Licensing Corporation. _
DOLEY and the double-D symbol on are trademarks CD CD MeChan'sm Type CDM285BD1 9
of Dolby Laboratories Licensing Corporation. SECTION Base Unit Type BU-5BD19
Optical Pick-up Type KSS-21SBAlF-NP
322'; Model Name Using Similar Mechanism HCD-H551
SECTION Tape Transport Mechanism Type TCM-220WR2E
SPECIFICATIONS

CD player section

System Compact disc and digital
audio system
Laser Semiconductor (X = 780nm)

Emission duration:
continuous
Max 44.6 pW<
*This output is the Value
measured at a distance of
200mm from the objective
lens surface on the Optical
Pick-up Block with 7mm
aperture.
Wavelength 780 - 790 nm
Frequency response

2 Hz - 20 kHz ($0.5 dB)
Signal-to-noise ratio

More than 90 dB
Dynamic range More than 90 dB
CD DIGITAL OPTICAL OUTPUT
(Square optical connector jack,rear panel)
Wavelength 600nm
Output level -18dBm

Laser output

Tuner section
FM stereo, FMJAM superheterodyne tuner

FM tuner section

East European model:
65.0 - 75.0 MHz,
87.5 -108.0M1-Iz

MICROFILM

Tourist model:

76.0 - 108.0 MHz
Other models:

87.5 - 108.0 MHz
Aerial FM lead aerial
Aerial terminals 75 ohm unbalanced
Intermediate frequency

10.7 MHz

AM tuner section
Tuning range
AEP, UK. East European models:
MW: 531 - 1.602 kI-Iz (with
the interval set at 9 kHz)
LW: 153 - 279 kHz (with
the interval set at 3 kHz)
German models:
531 - 1,602 kHz (with
the interval set at 9 kHz)
EA4,Thailand models:
531 - 1,710 kHz(with
the interval set at 9 kHz)
530 - 1,710 kHz(with
the interval set at 10 kHz)

- Continue on next page -

COM PACT DISC DECK RECEIVER

SONY®
