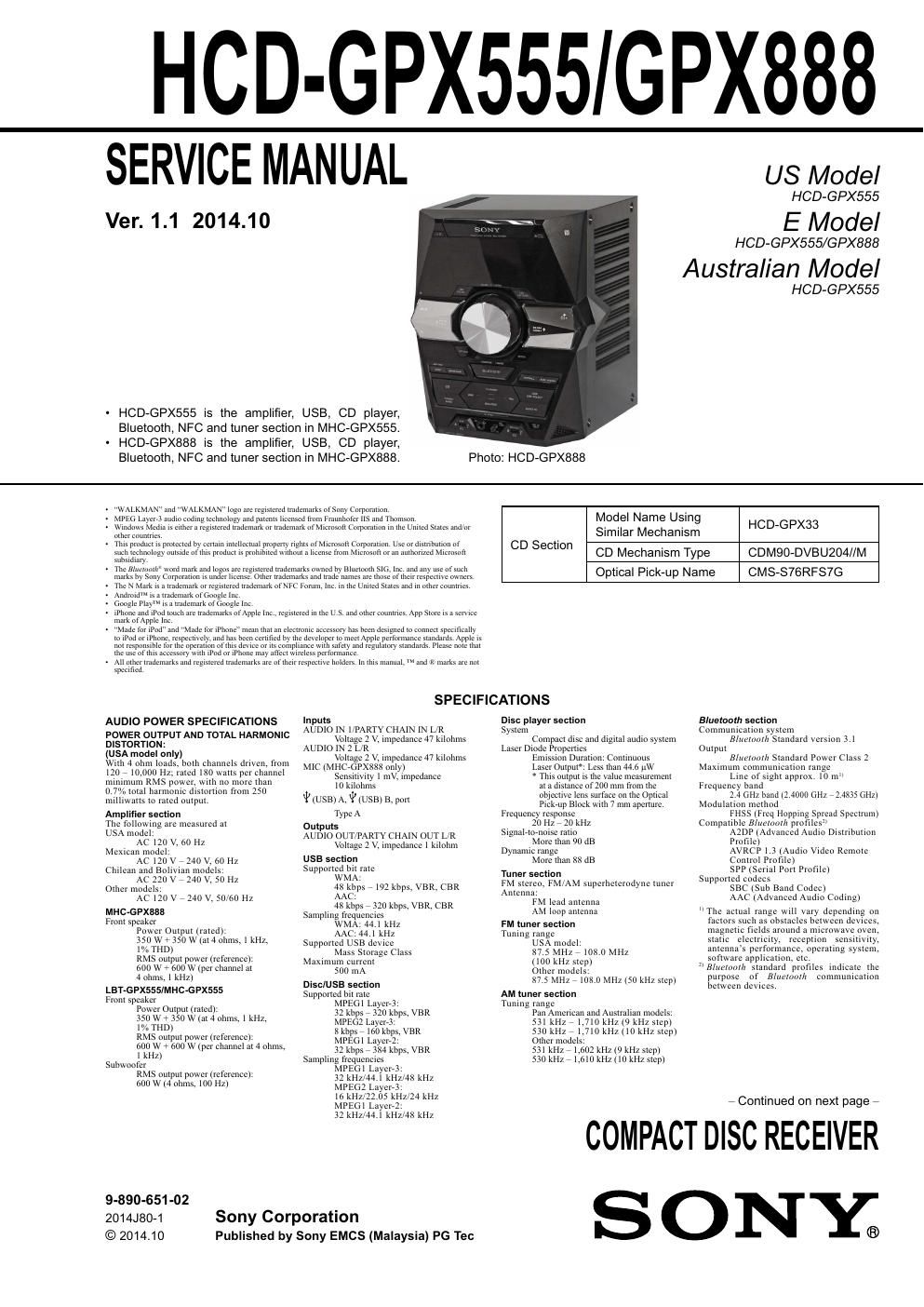

HCD-GPX555lGPX888
Ver. 1.1

General
Pow cr requirements
USA model,
AC 120 v, 60 Hz
Mcxlcnn model.
AC 120 v 240 v. 60 Hz
Clltlcan and Boltrtan models.
AC 220 v 240 v. 50 Hz
()llm' modcls
AC 120 v 240 v. 50/60 H;
Pow cr consumption
MHGGPXXSX 150 w
Lnnwxsss MHCVGFXSSS zso w
Dimensions m h d) (excl speakers)
(Approx )
MHGGPXXSX
294 mm x 3m mm x 131 mm
(II 5/: in x 14 I/un x 11 la in)
Lnnwxsss MHCVGYXSSS,
294 mm x 351 mm x 125 mm
(11 5/ran wmm mam)
Mnss tcxcl. speakers) (Approx )
5.4 mm lb |5 o4)
Supplied accessories
Remote control (I)
R6 (5116 AA) batteries (2)
FM lcnd AM loop notcnnd 1 II
Spacer (2. (MHCGPXXXS only)
Spcakcrpads (In) (MHoonxsx only)

Dcsrgn and spcclflcauons are subject to change Without noucc.

cuss r LASER PRODUCT
LASER KLASSE t

LUOKAN I LASERLAITE
KLASS r ussmpmam

This appliance is classified as a CLASS 1
LASER product by IEC60825-1:2007. This
marking is located on the rear exterior.

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

- Keep the temperature of soldering iron around 270 °C during
repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsoldering.

SAFETY CHECK-OUT

After correcting the original service problem, perform the
following safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, metallized knobs,
screws, and all other exposed metal parts for AC leakage.

Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and

frotn all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes.).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The limit indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
ofa passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 VAC range are suitable. (See
Fig. A)

To Exposed Metal
Paris on Set

A C
/ voltmeter
m75w

SE LSkQ

a15pF

_ Earth Ground
Fig. A. Using an AC voltmeter to checkAC leakage.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
