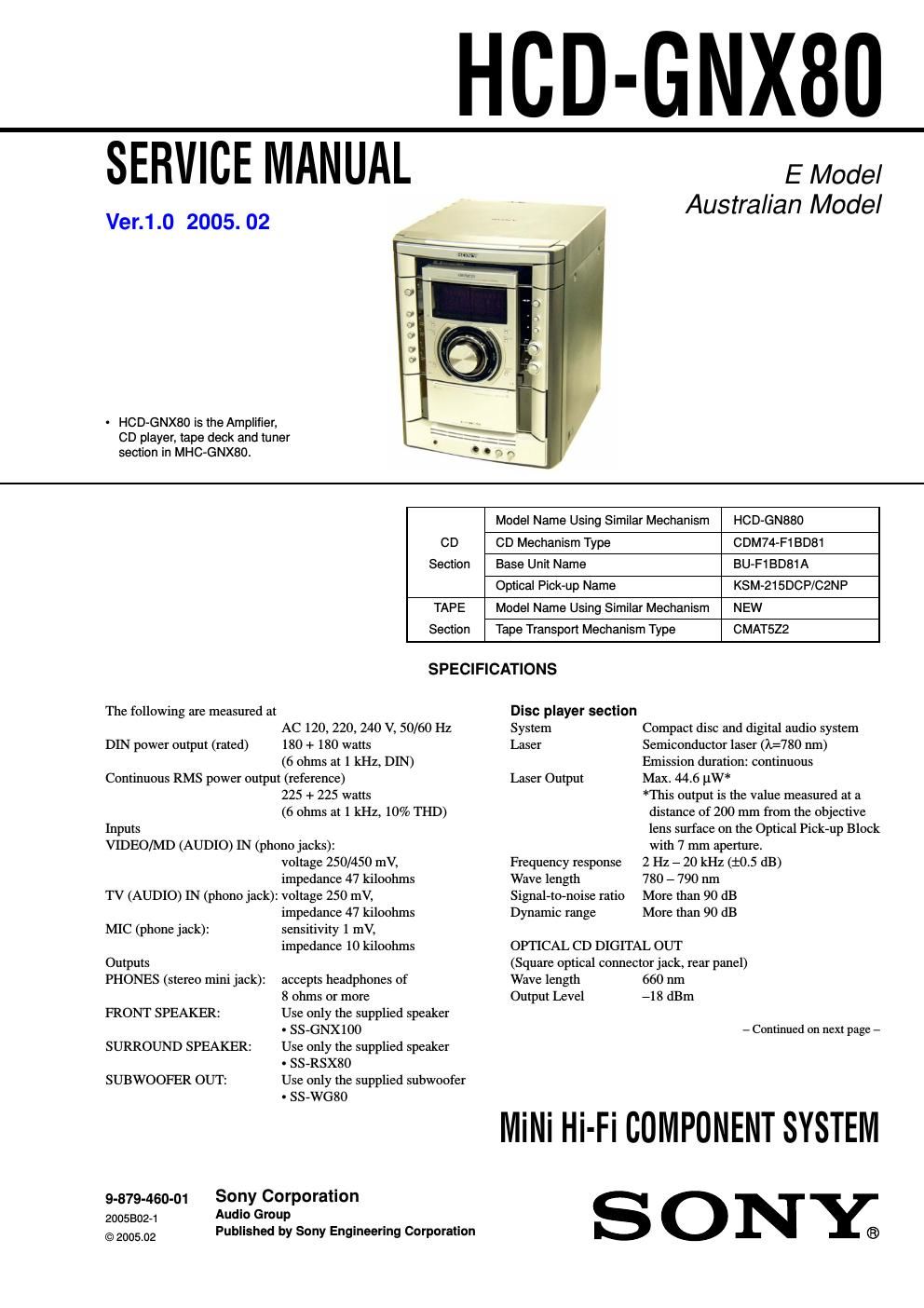

HCD-GNXBD

SERVICE MANUAL

Ver.1.0 2005. 02

' HCD-GNXBO is the Amplifier,
CD player, tape deck and tuner
section in MHC-GNXSO.

E Model
Australian Model

Model Name Using Similar Mechanism HCD-GN880
CD CD Mechanism Type CDM74-F1BD81
Section Base Unit Name BU-F1BDB1A
Optical Pick-up Name KSM-215DCP/02NP
TAPE Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type CMAT5Z2

SPECIFICATIONS

The following are measured at
AC 120, 220, 240 V, 50/60 Hz
180 + 180 watts
(6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)

225 + 225 watts

(6 ohms at 1 kHz, 10% THD)

DIN power output (rated)

Inputs
VIDEO/MD (AUDIO) IN (phono jacks):
voltage 250/450 mV,
impedance 47 kiloohms
TV (AUDIO) IN (phono jack): voltage 250 mV,
impedance 47 kiloohms
sensitivity 1 mV,
impedance 10 kiloohms

MIC (phone jack):

Outputs
PHONES (stereo mini jack): accepts headphones of

8 ohms or more

FRONT SPEAKER: Use only the supplied speaker
~ SS-GNX 100

SURROUND SPEAKER: Use only the supplied speaker
~ SS-RSX80

SUBWOOFER OUT: Use only the supplied subwoofer
~ SS-WGSO

Sony Corporation
Audio Group
Published by Sony Engineering Corporation

9-879-460-01
20053021
© 2005.02

Disc player section

System Compact disc and digital audio system

Laser Semiconductor laser Ot=780 nm)
Emission duration: continuous

Laser Output Max 44.6 pWl

*This output is the value measured at a
distance of 200 mm from the objective
lens surface on the Optical Pick-up Block
with 7 mm aperture

Frequency response 2 Hz ~ 20 kHz (i015 dB)

Wave length 780 ~ 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
OPTICAL CD DIGITAL OUT

(Square optical connector jack, rear panel)
Wave length 660 nm

Output Level ~18 dBm

- Continued on next page -

MiNi Hi-Fi COMPONENT SYSTEM
S ONE;

Page 2

HCD-GNX80

Tape deck section
Recording system
Frequency response

4»track 2-channel stereo
50 e 13,000 Hz (i3 dB),
using Sony TYPE I tape

Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
Antenna
Antenna terminals
Intermediate frequency
AM tuner section
Tuning range
North and Latin American models:
530 71,710 kHz
(with the interval set at 10 kHz)
531 ~ 1,710 kHz
(with the interval set at 9 kHz)

87.5 A1080 MHz
FM lead antenna
75 ohm unbalanced
10.7 MHz

Other models: 531 7 1,602 kHz
(with the interval set at 9 kHz)
530 ~ 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

General

Power requirements

Australian model: 230 ~ 240 V AC, 50/60 Hz

Other models: 120 V, 220 V or 230 A 240 V AC,
50/60 Hz
Adjustable with voltage selector

Power consumption 350 W

Dimensions (w/h/d) (Approx) 280 x 360 x 398.5 mm
Mass (Approx)
Supplied accessories: Remote Commander (1)
Batteries (2)

AM loop antenna (1)

FM lead antenna ( 1)
Front speaker pads (8)
Surround speaker pads (8)
Subwoofer pads (4)

Design and specifications are subject to change without notice.

Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of soldering iron around 270°C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

This appliance is classified as
a CLASS 1 LASER product.
This label is located on the rear
exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPAFIAT

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

If LEAD FREE MARK

Unleaded solder has the following characteristics.

- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!

- Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
