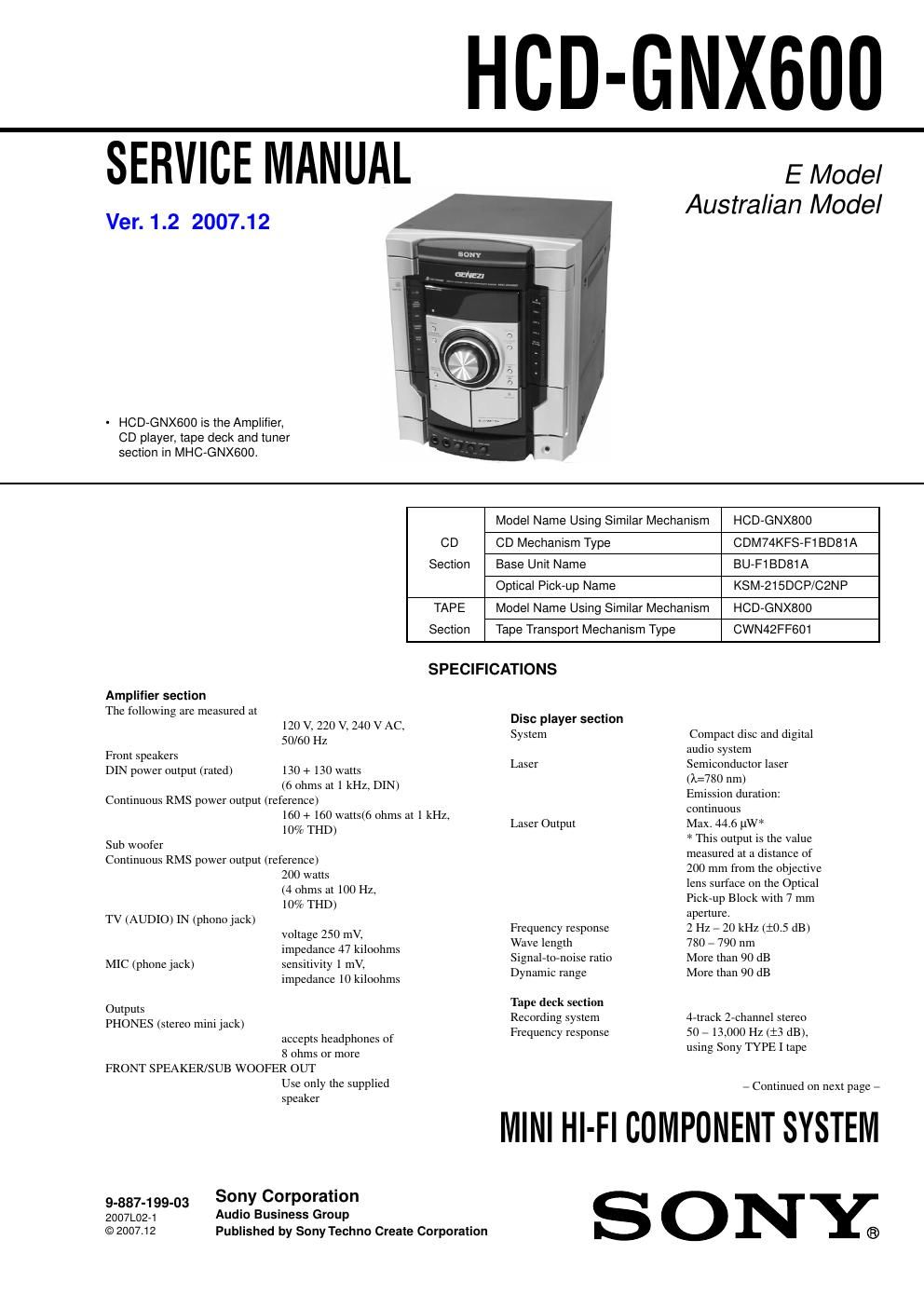

Page 1

HCD-GNXfiUU

SERVICE MANUAL

Ver. 1.2 2007.12

' HCD-GNX600 is the Amplifier,
CD player, tape deck and tuner
section in MHC-GNXSOO.

E Model
Australian Model

Model Name Using Similar Mechanism HCD-GNXSOO
CD CD Mechanism Type CDM74KFS-F1 BD81A
Section Base Unit Name BU-F1BD81A
Optical Pick-up Name KSM-215DCP/C2NP
TAPE Model Name Using Similar Mechanism HCD-GNXSOO
Section Tape Transport Mechanism Type CWN42FF601
SPECIFICATIONS

Amplifier section
The following are measured at
120 V, 220 V, 240 V AC,
50/60 Hz
From speakers
DIN power output (rated) 130 + 130 watts
(6 ohms at 1 kHz. DIN)
Continuous RMS power output (reference)
160 + 160 watts(6 ohms at 1 kHz,

10% Tl-lD)
Sub woofer
Continuous RMS power output (reference)
200 watts
(4 ohms at 100 Hz,
10% Tl-lD)

TV (AUDIO) IN (phono jack)

voltage 250 mV,
impedance 47 kiloohms
sensitivity 1 mV,
impedance 10 kiloohms

MIC (phone jack)

Outputs
PHONES (stereo mini jack)
accepts headphones of
8 ohms or more
FRONT SPEAKER/SUB WOOFER OUT
Use only the supplied
speaker

Sony Corporation

9-887-199-03
20010271 Audio Business Group
© 2007.12 Published by SonyTechno Create Corporation

Disc player section
System Compact disc and digital
audio system
Semiconductor laser
(A2780 nm)

Emission duration:
continuous

Max. 44.6 uW*

4 This output is the value
measured at a distance of
200 mm from the objective
lens surface on the Optical
Pick-up Block with 7 mm

Laser

Laser Output

aperture.
Frequency response 2 Hz - 20 kHz (10.5 dB)
Wave length 780 - 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB

Tape deck section
Recording system
Frequency response

4-track 2-channel stereo
50 - 13,000 Hz (i? dB),
using Sony TYPE [ tape

- Continued on next page -

MINI Hl-Fl COMPONENT SYSTEM
S ONE;

Page 2

HCD-GNX600

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

Antenna

Antenna terminals
Intermediate frequency
AM tuner section
Tuning range

Latin American models:

Other models:

Antenna
Antenna terminals
Intermediate frequency

General

Power requirements
Australian model:
Argentina model:
Other models:

Power consumption
Dimensions (w/h/d) (Approx)
Mas. Approx.)

Supplied accessories:

87.5 - 108.0 MHz
FM lead antenna
75 ohm unbalanced
10.7 MHZ

530 - 1,710 kHz

(with the interval set at 10 kHz)
531 - 1,710kHz

(with the interval set at 9 kHz)
531 - 1,602 kHz

(with the interval set at 9 kHz)
530 - 1,710 kHz

(with the interval set at 10 kHz)
AM loop antenna

External antenna terminal

450 kHz

230 - 240 V AC, 50/60 Hz
220 V AC, 50/60 Hz

120 V or 220 - 240 V AC,
50/60 Hz

Adjustable with voltage selector
110 watts

280 X 326 X 385.5 mm

6.3 kg

Remote Commander (1)
Batteries (2)

AM loop antenna (1)

FM lead antenna (1)

Front speaker pads (8)
Sub woofer pads (4)

Design and specifications are subject to change

without notice.

Notes on chip component replacement
Never reuse a disconnected chip component.
Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of soldering iron around 270°C
during repairing.
Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

This appliance is classified as
c.4651 LASER FRODUCT a CLASS 1 LASER product.
LuoKAN 1 LASERLAITE This label is located on the rear
KLASS1 LASERAPPARAT exterior.

Unleaded solder

Boards requiring use of unleaded solder are printed with the lead
free mark (LF) indicating the solder contains no lead.

(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)

ll,- ' LEAD FREE MARK

Unleaded solder has the following characteristics.

- Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solderjoint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!

- Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A 0R DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
