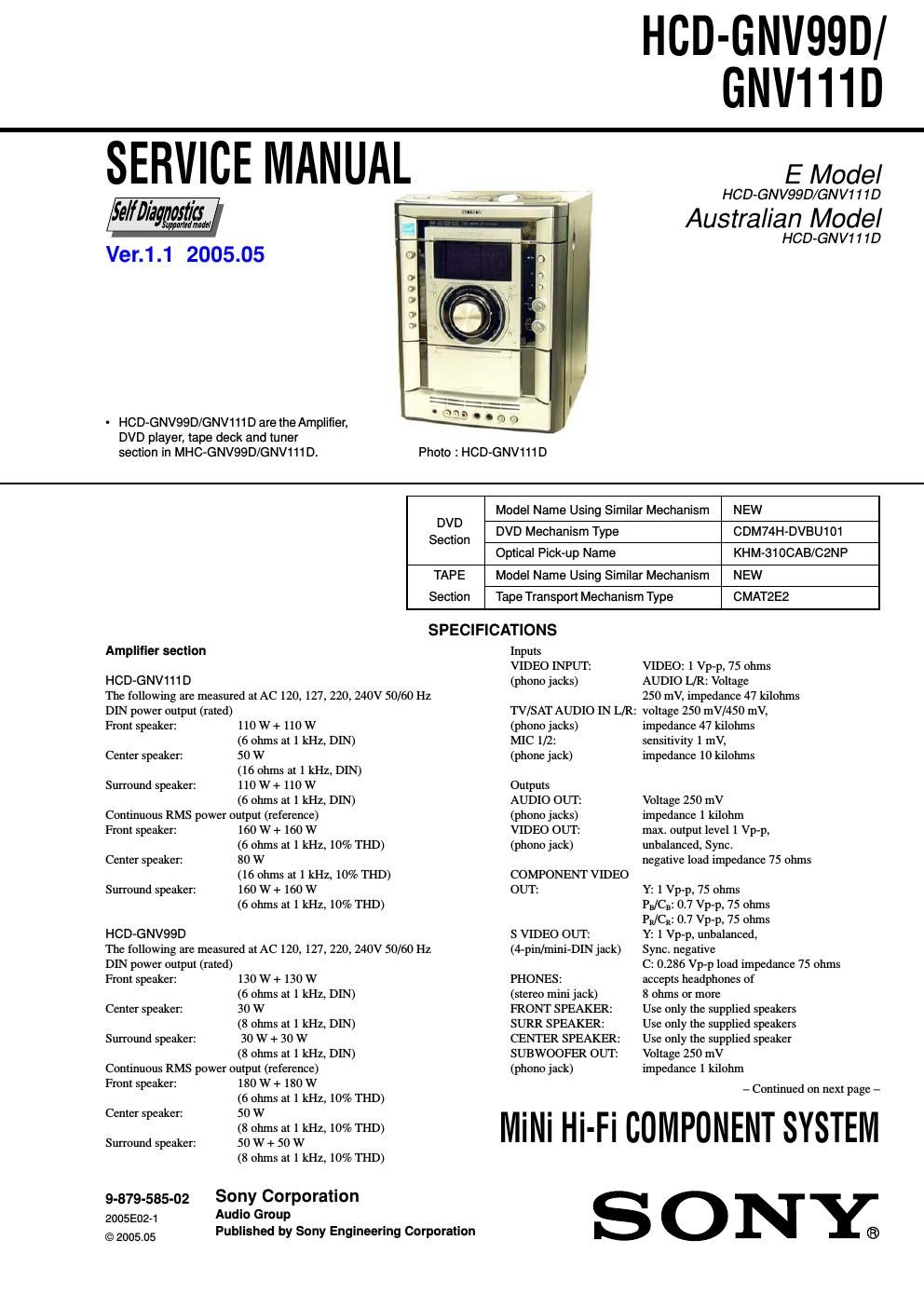

Sony hcd gnv 99 d service manual

This is the 102 pages manual for sony hcd gnv 99 d service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 102
sony hcd gnv 99 d service manual

Extracted text from sony hcd gnv 99 d service manual (Ocr-read)


Page 2

HCD-GNV99D/GNV111D

Ver.1.1

Disc player section
System

Laser

Frequency response

Compact disc and digital audio and video
system

Semiconductor laser

(DVD: A = 650 nm, CD: A = 790 nm)
Emission duration: continuous

DVD (PCM 48 kHz):

2 Hz - 22 kHz (ildB)

CD: 2 Hz - 20 kHz (:05 dB)

Video color system format

Tape deck section
Recording system
Frequency response

Tuner section

NTSC and PAL

4-track 2-channel stereo
50 - 13,000 Hz (:3 dB), using Sony TYPE I
tape

FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

Antenna

Antenna terminals
Intermediate frequency
AM tuner section
Tuning range

Saudi Arabian model:

Other models:

Antenna
Antenna terminals
Intermediate frequency

General

Power requirements
Australian model:
Mexican model:
Saudi Arabian model:

Other models:

Power consumption
MHC-GNVl 1 1D
MHC-GNV99D

87.5 - 108.0 MHz (50 kHz step)
FM lead antenna

75 ohms unbalanced

10.7 MHz

5 3 l- 1 ,602 kHz

(with the interval set at 9 kHz)
531 - 1,602 kHz

(with the interval set at 9 kHz)
530 - 1,710 kHz

(with the interval set at 10 kHz)
AM loop antenna

External antenna terminal

450 kHz

230 - 240 V AC, 50/60 Hz

127 V AC, 60Hz

120 - 127 V, 220 V or

230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
120 V, 220 V or

230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector

380W
285 W

Dimensions (w/h/d) (Approx)

HCD-GNVl 1 1D
HCD-GNV99D

Mass (Approx)
HCD-GNVl 1 1D
HCD-GNV99D

280 X 371 X 398.5 mm
2130 X 360 X 398.5 mm

16.1 kg
15.2 kg

Design and specifications are subject to change without notice.

Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing
- Keep the temperature of soldering iron around 270°C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.

This appliance is classified as
a CLASS 1 LASER product.
This label is located on the rear
exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
