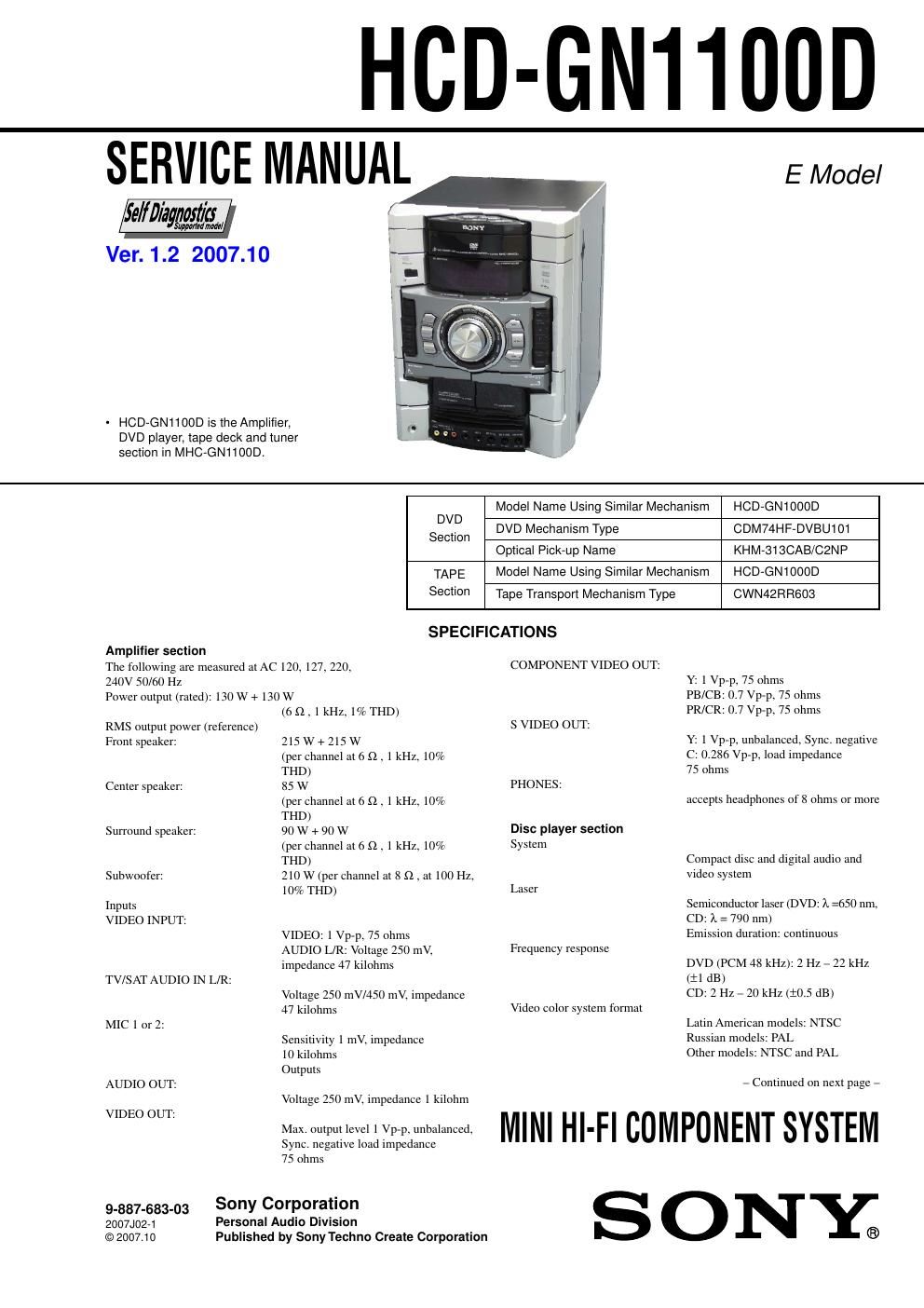

HCD-GN1100D
Tape deck section
Recording system
Frequency response
Tuner section
4-track 2-channel stereo
50 - 13,000 Hz (:3 dB),
using Sony TYPE I tape
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
Antenna
Antenna terminals
Intermediate frequency
AM tuner section
Tuning range
Antenna
Antenna terminals
Intermediate frequency
General
Power requirements
Power consumption
Dimensions (w/h/d) (Approx)
Mass (Approx)
87.5 - 108.0 MHZ (50 kHz step)
FM lead antenna
75 ohms unbalanced
10.7 MHZ
Saudi Arabian:
531 - 1,602 kHz (with the interval set
at 9 kHz)
Other models:
531 - 1,602 kHz (with the interval set
at 9 kHz)
530 - 1,710 kHz (with the interval set
at 10 kHz)
AM loop antenna
External antenna terminal
450 kHz
Saudi Arabian model: 120 - 127 V,
220 V or 230 - 240 V AC, 50/60 Hz,
adjustable with voltage selector
Thai model: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V or
230 - 240 V AC, 50/60 Hz, adjustable
with voltage selector
350W
281x 361 X417 mm
16.0 kg
Design and specifications are subject to change without notice.
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self~diagnosis function is activated to
prevent the system from malfunctioning, a
5-character service number (e.g. C 13 50) with a
combination of a letter and 4 digits appears on
the TV screen and the front panel display. In this
case, check the following table.
First 3 Cause and corrective action
characters of
the service
number
C 13 This disc is dirty.
Clean the disc with a soft cloth
C 31 The disc is not inserted correctly.
Restart the system, then refinsert
the d' c correctly.
E XX To pre *nt a malfunction, the
(XX is a has performed the sellidiagnosis
number) function.
Contact your nearest Sony dealer or
local authorieed Sony service
facility and give the 57character
service number.
Example: E 61 10
When displaying the version numberon the
TV screen
When you turn on the system, the version
number [VER.X.XX] (X is a number) may
appear on the TV screen. Although this is not a
malfunction and for Sony service use only,
normal system operation will not be possible.
Turn off the system, and then turn on the system
again to operate.
