Sony hcd f 250av
This is the 82 pages manual for sony hcd f 250av.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd f 250av (Ocr-read)

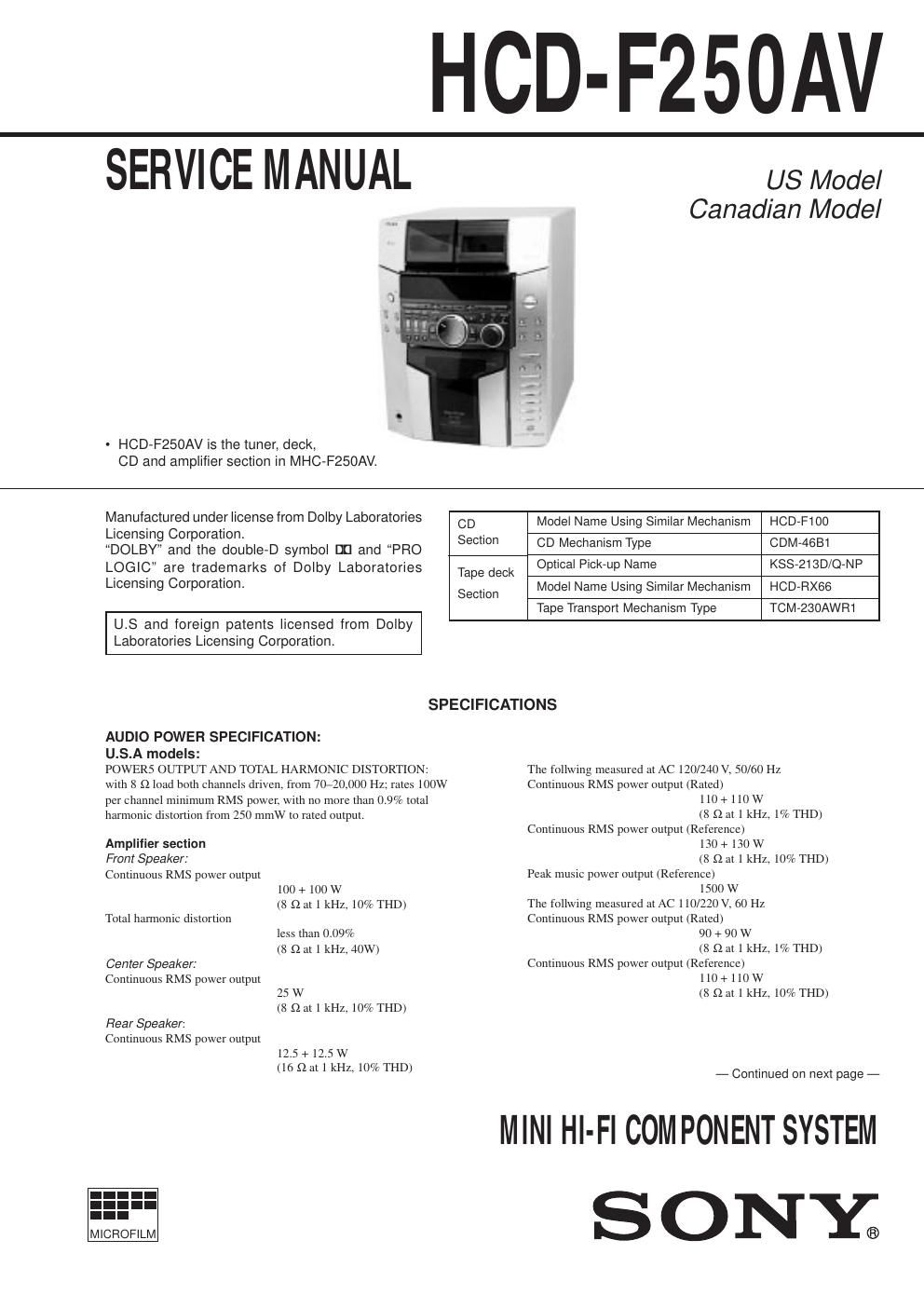

Page 1
Ñ 2 Ñ InputsVIDEO/MD IN: (phono jacks) voltage 250 mV / 450 mV, impedance 47 kW MIX MIC (except for Australian and European models): (phone jack) sensitivity 1 mV, impedance 10 kW OutputsVIDEO/MD OUT (phono jacks): voltage 250 mV impedance 1 kW PHONES (stereo phone jack): accepts headphones of 8 W or more SPEAKER: accepts impedance of 8 to 16 W REAR SPEAKER: accepts impedance of 16 W CENTER SPEAKER: accepts impedance of 8 W SUPER WOOFER: Voltage 1 V, impedance 1 kW CD player section System Compact disc and digital audio system Laser Semiconductor laser (l = 780 nm) Emission duration: continuous Laser output Max. 44.6 mW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz Ð 20 kHz (±0.5 dB) Wavelength 780 Ð 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength: 600 nm Output level: Ð18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 Ð 13,000 Hz (±3 dB), using Sony (DOLBY NR OFF) TYPE I cassette 40 Ð 14,000 Hz (±3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range2 band models: 87.5 Ð 108.0 MHz 3 band (FM-MW-SW) models: 87.5 Ð 108.0 MHz 3 band (FM-MW-LW) models: 87.5 Ð 108.0 MHz Antenna FM lead antenna Antenna terminals 75 W unbalanced Intermediate frequency 10.7 MHzAM tuner section Tuning range2 Band type: 530 Ð 1,710 kHz (with the interval set at 10 kHz) 531 Ð 1,710 kHz (with the interval set at 9 kHz) 3 Band type: MW: 531 Ð 1,602 kHz (with the interval set at 9 kHz) 530 Ð 1,710 kHz (with the interval set at 10 kHz) SW: 5.95 Ð 17.90 MHz (with the interval set at 5 kHz) Antenna AM loop antenna Antenna terminals External antenna terminals Intermediate frequency 450 kHz General Power consumptionU.S.A. models: 250 W Canadian models: 250 VA Dimensions (w/h/d) Approx. 280 ´ 375 ´ 455 mm Mass Approx. 12 kg (26 lbs. 7 oz.) Supplied accessories AM loop antenna (1) Remote RM-SF250AV(1) Batteries(2) FM lead antenna(1) Speaker cords(5) Front speaker pads(8) Center speaker pads (4) Design and specifications are subject to change without notice.
Page 2
Ñ 3 Ñ SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, ÒmetallizedÓ knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturersÕ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The ÒlimitÓ indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 k ½ AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside the unit. ATTENTION AU COMPOSANT AYANT RAPPORT Ë LA SƒCURITƒ! LES COMPOSANTS IDENTIFƒS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHƒMATIQUES ET LA LISTE DES PIéCES SONT CRITIQUES POUR LA SƒCURITƒ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIéSES SONY DONT LES NUMƒROS SONT DONNƒS DANS CE MANUEL OU DANS LES SUPPƒMENTS PUBLIƒS PAR SONY.
