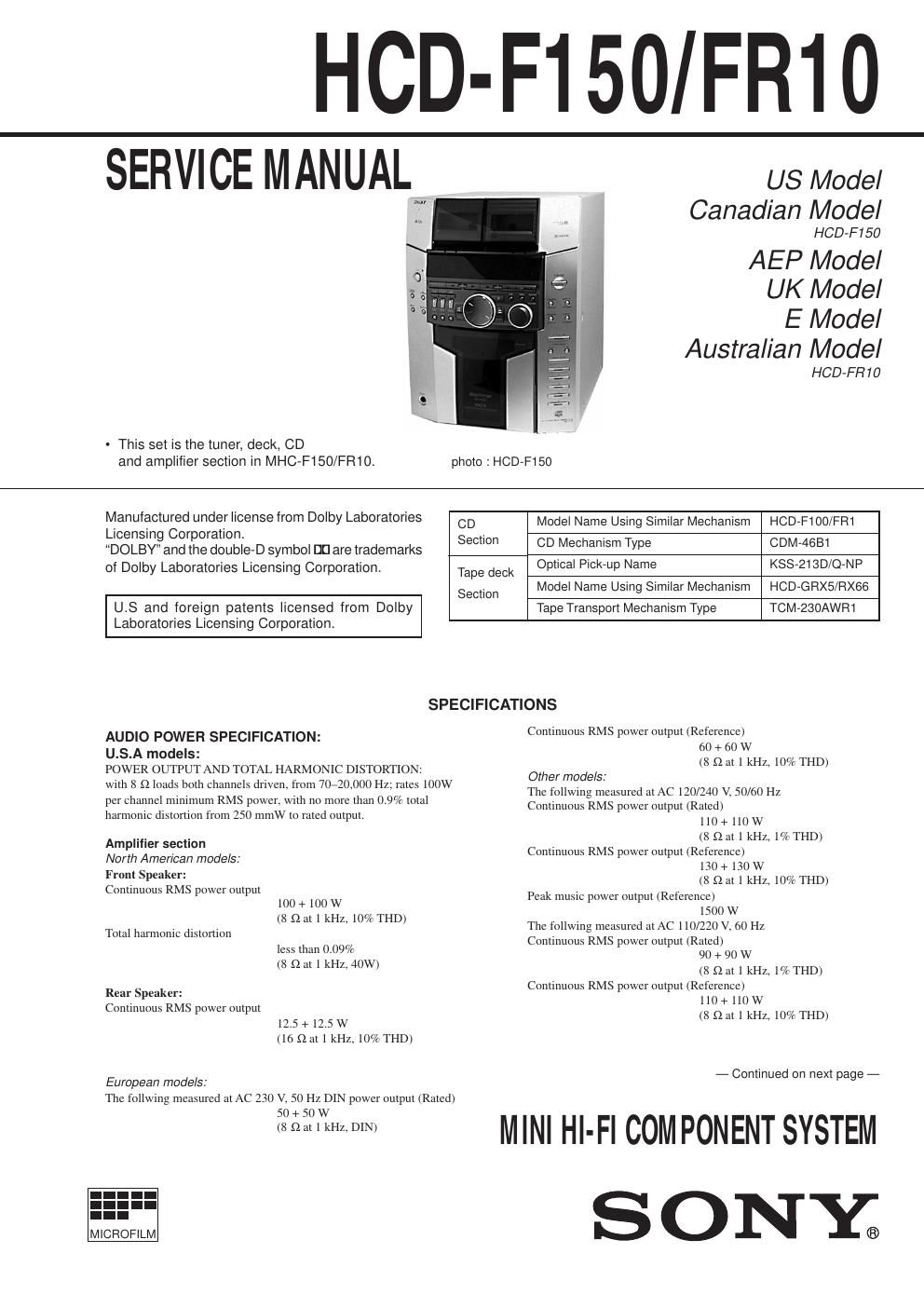

Sony hcd f 150 service manual

Page 1

Ñ 2 Ñ InputsVIDEO/MD IN: (phono jacks) voltage 250 mV / 450 mV, impedance 47 kW MIX MIC (except for Australian and European models): (phone jack) sensitivity 1 mV, impedance 10 kW OutputsVIDEO/MD OUT (phono jacks): voltage 250 mV impedance 1 kW PHONES (stereo phone jack): accepts headphones of 8 W or more SPEAKER: MHC-F150: accepts impedance of 8 to 16 W MHC-FR10 (European models): accepts impedance of 8 to 16 W MHC-FR10 (Other models): accepts impedance of 8 to 16 W REAR SPEAKER: accepts impedance of 16 W SUPER WOOFER: Voltage 1 V, impedance 1 kW CD player section System Compact disc and digital audio system Laser Semiconductor laser (l = 780 nm) Emission duration: continuous Laser output Max. 44.6 mW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz Ð 20 kHz (±0.5 dB) Wavelength 780 Ð 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength: 600 nm Output level: Ð18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 Ð 13,000 Hz (±3 dB), using Sony (DOLBY NR OFF) TYPE I cassette 40 Ð 14,000 Hz (±3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range2 band models: 87.5 Ð 108.0 MHz 3 band (FM-MW-SW) models: 87.5 Ð 108.0 MHz 3 band (FM-MW-LW) models: 87.5 Ð 108.0 MHz Antenna FM lead antenna Antenna terminals 75 W unbalanced Intermediate frequency 10.7 MHzAM tuner section Tuning range2 Band type: North American models: 530 Ð 1,710 kHz (with the interval set at 10 kHz) 531 Ð 1,710 kHz (with the interval set at 9 kHz) Other models: 531 Ð 1,602 kHz (with the interval set at 9 kHz) 530 Ð 1,710 kHz (with the interval set at 10 kHz) 3 Band type: European models: MW: 531 Ð 1,602 kHz (with the interval set at 9 kHz) LW: 153 Ð 279 kHz (with the interval set at 3 kHz) Other models: MW: 531 Ð 1,602 kHz (with the interval set at 9 kHz) 530 Ð 1,710 kHz (with the interval set at 10 kHz) SW: 5.95 Ð 17.90 MHz (with the interval set at 5 kHz) Antenna AM loop antenna Antenna terminals External antenna terminals Intermediate frequency 450 kHz General Power consumptionMHC-F150: 200 W MHC-FR10: European models: 150 W Other models: 250 W Dimensions (w/h/d) Approx. 280 ´ 375 ´ 455 mm Mass MHC-F150: Approx. 12 kg (26 lbs. 7 oz.) MHC-FR10: European models: Approx. 10 kg (22 lbs. 1 oz.) Other models: Approx. 12 kg (26 lbs. 7 oz.) Supplied accessories AM loop antenna (1) Remote RM-SF150 (1) Batteries (2) FM lead antenna (1) Speaker cords (4) Design and specifications are subject to change without notice.
