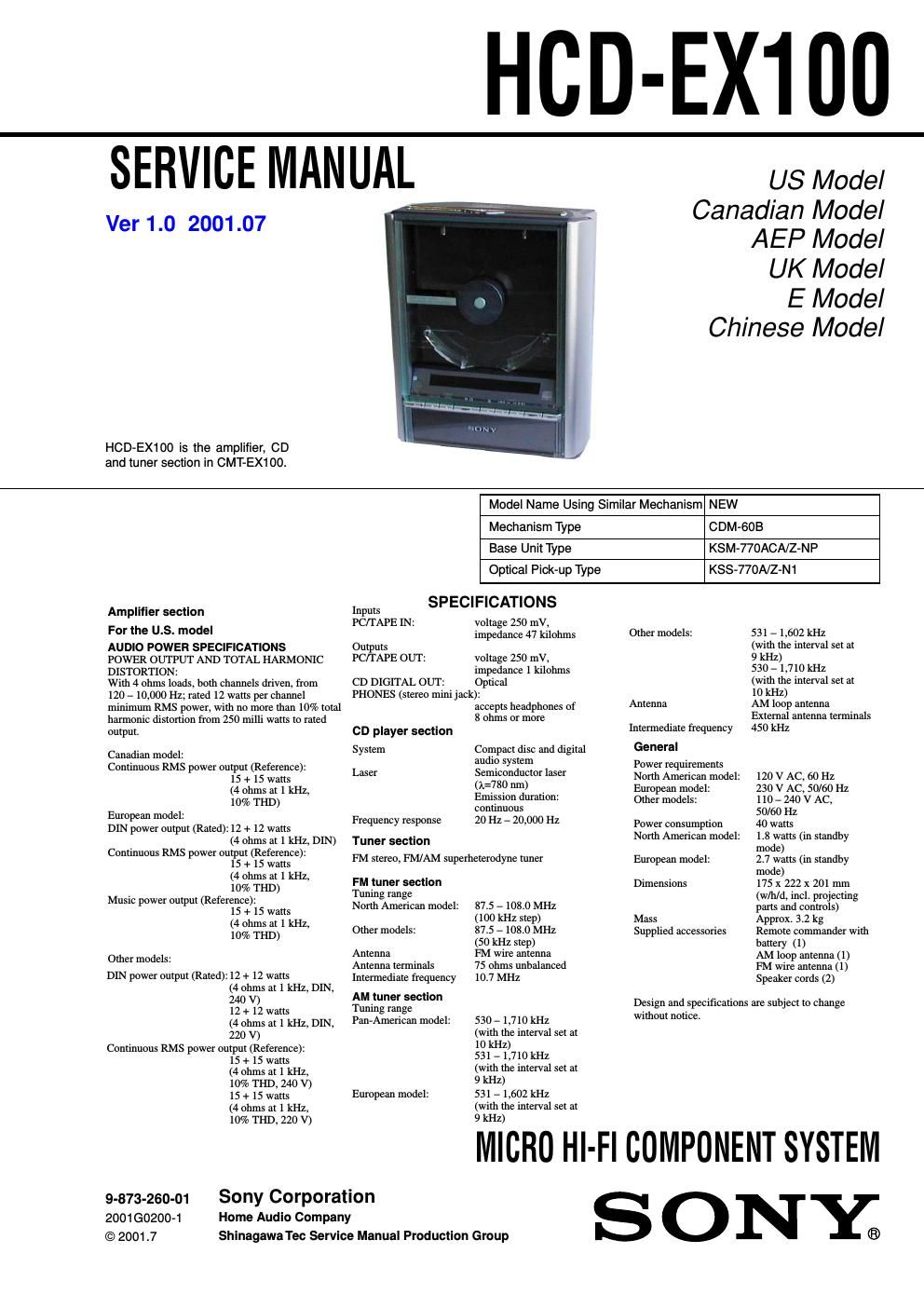

Sony hcd ex 100
This is the 46 pages manual for sony hcd ex 100.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd ex 100 (Ocr-read)
Page 1
2 HCD-EX100 SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 0.15µFTo Exposed Metal Parts on Set 1.5kΩAC voltmeter (0.75V) Earth Ground SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTIONUse of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of soldering iron around 270˚C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
Page 2
3 HCD-EX100 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the S curve check in CD section adjustment and check that the S curve waveform is output four times. TABLE OF CONTENTS 1. SERVICING NOTE .......................................................... 4 2. GENERAL .......................................................................... 7 3. DISASSEMBLY 3-1. Rear Cover, Bottom Plate, Case and Eject Board ................. 9 3-2. Panel Board and Stabilizer .................................................. 10 3-3. AMP Block ......................................................................... 10 3-4. CD Block ............................................................................ 11 3-5. Motor Assy, CAM and SW Board ...................................... 11 3-6. Base Unit and Pick Up Assy ............................................... 12 3-7. Main Board, REG Board and Power Board ........................ 12 4. ELECTRICAL ADJUSTMENT ................................... 13 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 14 5-2. Block diagrams – Tuner/CD Section – ............................... 16 Block diagrams – AMP Section – ....................................... 17 5-3. Printed Wiring Board – Main Section – .............................. 18 5-4. Schematic Diagram – Main (1/3) Section – ........................ 19 5-5. Schematic Diagram – Main (2/3) Section – ........................ 20 5-6. Schematic Diagram – Main (3/3) Section – ........................ 21 5-7. Printed Wiring Board – LED/Loading/SW/AMP Section – 22 5-8. Schematic Diagram – LED/Loading/SW/AMP Section Section – ...................... 23 5-9. Printed Wiring Board – Panel/Eject Section – .................... 24 5-10. Schematic Diagram – Panel/Eject Section – ..................... 25 5-11. Printed Wiring Board – REG Section – ............................ 26 5-12. Schematic Diagram – REG Section – .............................. 27 5-13. Printed Wiring Board – Power Section – ......................... 28 5-14. Printed Wiring Board – Power Section – ......................... 29 5-15. IC Block Diagrams ........................................................... 30 5-16. IC Pin Functions ............................................................... 33 6. EXPLODED VIEWS 6-1. Front and Case Section ....................................................... 36 6-2. Chassis Section ................................................................... 37 6-3. Mechanism Section ............................................................. 38 6-4. Base Unit Section ................................................................ 39 7. ELECTRICAL PARTS LIST................................. 40
