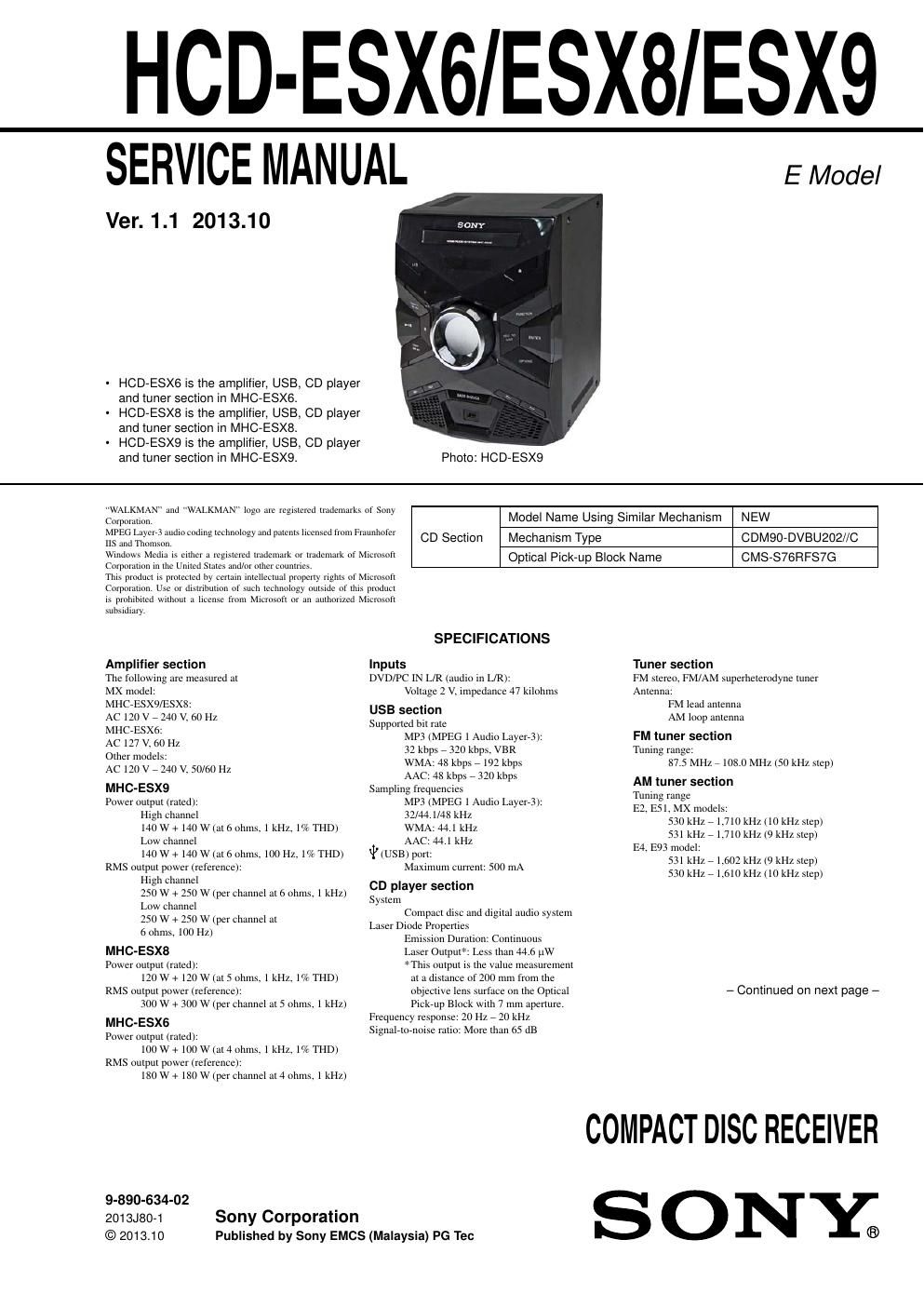

HCD-ESX6/ESX8/ESX9
Ver. 1.1

General
Power requirements
MX model:
MHCVESXWESXX:
AC 120 v , 240 v, 60 Hz
MHCVESXE:
AC 127 v. 60 H7.
Other models:
AC 120 v , 240 v. 50/60 Hz
Power consumption
Ml-ICVESX): 165 W
Ml-lCrEsxx: 100 W
MHCVESXG: 70 w
Dimensions (w/li/d) (excl, speakers)
(Approx.)
240 mm x 308 mm x 246 mm
Mass (excl, speakers) (Approx)
MHCVESX9: 3.0 kg
MHCVESXX: 2.9 kg
MHCESXfi: 2.8 kg
Supplied accessories
Remote control (1)
R6 (Size AA) batteries (2)
FM lead/AM loop antenna (1)

Design and specifications are subject to change without notice.

- Abbreviation
E2 : 120 VAC area in E model
E4 :African model
E51 : Chilean and Peruvian models
E93 :240 VAC area in E model
MX : Mexican model

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

- Keep the temperature of soldering iron around 270 repairing.

' Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION
The use of optical instruments with this product will increase eye
hazard.

This appliance is classified as
a CLASS 1 LASER product.
KLAsst LASERAPPARAT This marking is located on the
rear exterior.

CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAlTE

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
