Sony hcd eh 25 service manual
This is the 54 pages manual for sony hcd eh 25 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd eh 25 service manual (Ocr-read)

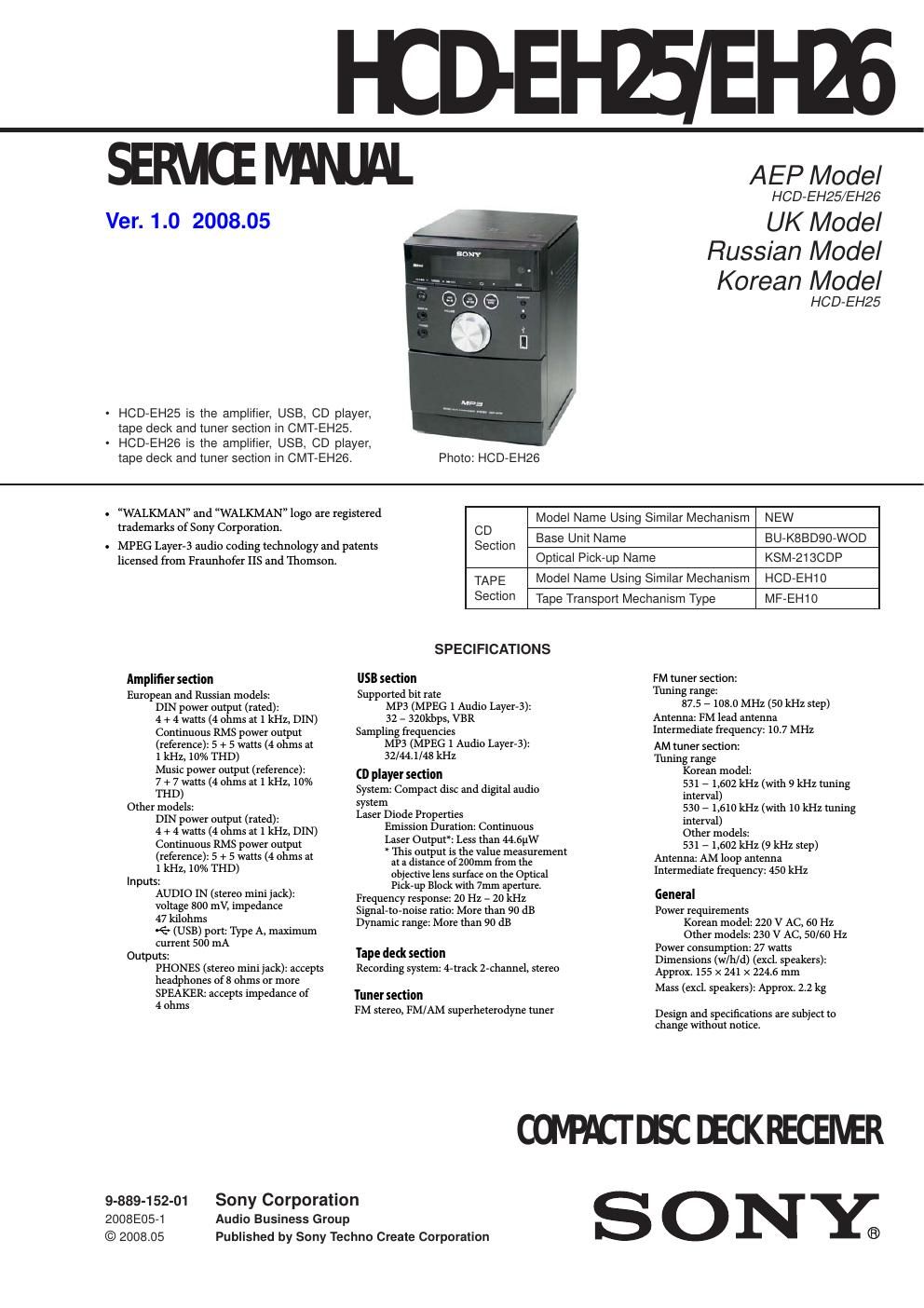

Page 1
HCD-EH25/EH26 2 1. SERVICING NOTES ............................................. 3 2. GENERAL .................................................................. 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Rear Cabinet Block ......................................................... 5 3-3. Front Cabinet Block, Top Cabinet Block, MAIN Board ................................................................... 6 3-4. MF-EH10 (Tape Mechanism Deck), Cassette Lid .......... 6 3-5. Base Unit Block (BU-K8BD90-WOD) .......................... 7 3-6. Optical Pick-up Block (KSM-213CDP) ......................... 7 4. TEST MODE ............................................................ 8 5. MECHANICAL ADJUSTMENTS ...................... 9 6. ELECTRICAL ADJUSTMENTS ........................ 9 7. DIAGRAMS 7-1. Block Diagram - CD SERVO Section - .......................... 12 7-2. Block Diagram - TUNER/USB Section - ....................... 13 7-3. Block Diagram - MAIN/POWER SUPPLY Section - .... 14 7-4. Printed Wiring Board - CD Board - ................................ 16 7-5. Schematic Diagram - CD Board - ................................... 17 7-6. Printed Wiring Board - USB Board - .............................. 18 7-7. Schematic Diagram - USB Board - ................................. 19 7-8. Printed Wiring Board - MAIN Board - ........................... 20 7-9. Schematic Diagram - MAIN Board (1/3) - ..................... 21 7-10. Schematic Diagram - MAIN Board (2/3) - ..................... 22 7-11. Schematic Diagram - MAIN Board (3/3) - ..................... 23 7-12. Printed Wiring Board - PANEL Board - ......................... 24 7-13. Schematic Diagram - PANEL Board - ............................ 25 7-14. Printed Wiring Board - PT-VBUS Board - ..................... 26 7-15. Schematic Diagram - PT-VBUS Board - ........................ 26 8. EXPLODED VIEWS 8-1. Overall Section ............................................................... 27 8-2. Front Cabinet Section ..................................................... 28 8-3. Top Cabinet Section ........................................................ 29 8-4. Base Unit Section (BU-K8BD90-WOD) ........................ 30 9. ELECTRICAL PARTS LIST .............................. 43 Accessories are given in the last of the electrical parts list. TABLE OF CONTENTS NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those speci fi ed herein may result in hazardous radia- tion exposure. This appliance is classifi ed as a CLASS 1 LASER product. This marking is located on the rear exterior.
Page 2
HCD-EH25/EH26 3 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostat- ic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The fl exible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc re fl ective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscous (sticky, less prone to fl ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Model POWER VOLTAGE INDICATION AEP, UK and Russian models AC 230 V, 50/60 Hz Korean model AC 220 V, 60 Hz MODEL IDENTIFICATION LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning on the SW750. (push switch type) The following checking method for the laser diode is operable. - Method Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the SW750 as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or dam- aged. 3. Check the object lens for con fi rming normal emission of the laser diode. If not enitting, there is a trouble in the automatic power control cirsuit or the optical pick-up. In this operation, the object lens will move up and down 2 times along with inward motion for the focus search. SW750 Fig.1 Method to push the SW750 Power Voltage Indication – Rear Cabinet –
