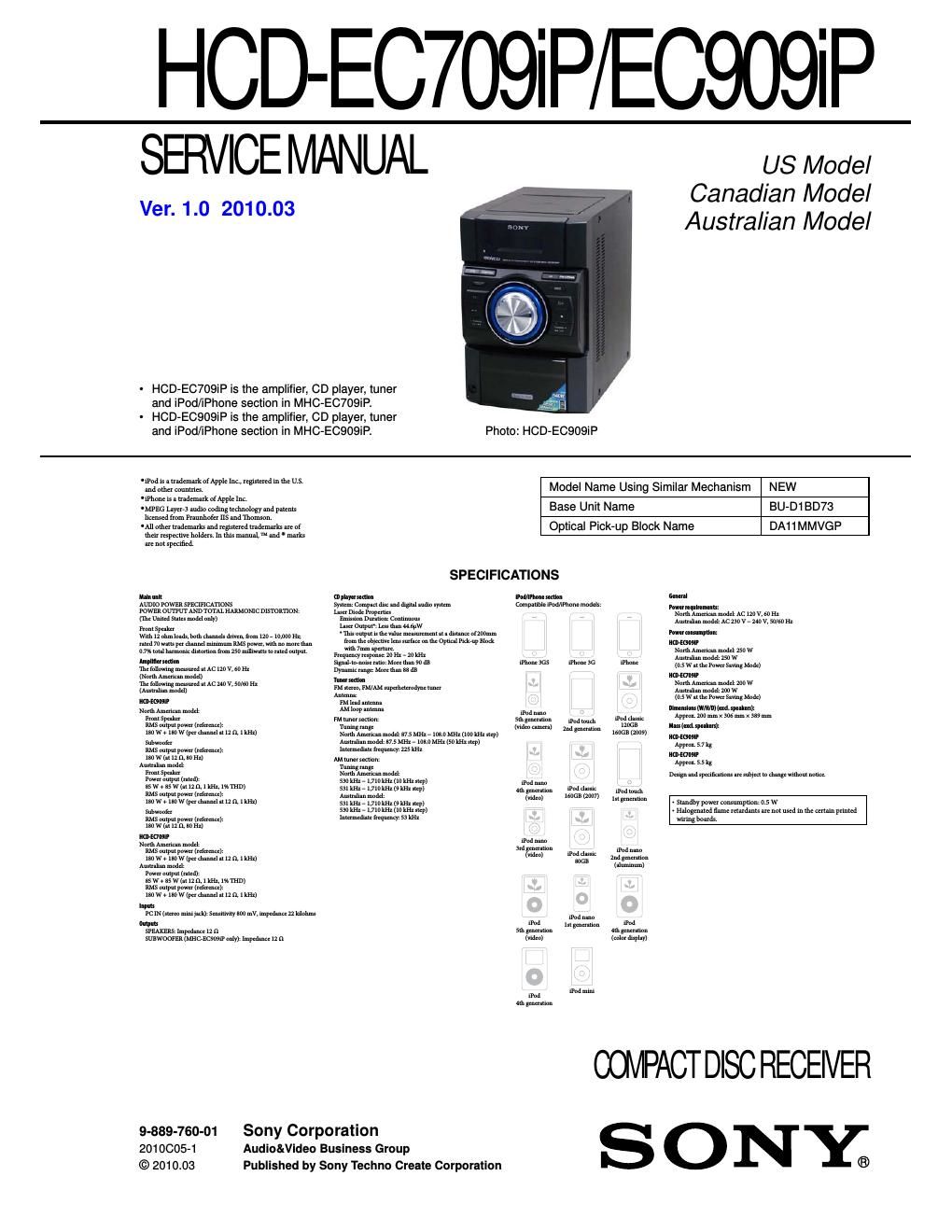

Sony hcd ec 909 ver1 0
This is the 52 pages manual for sony hcd ec 909 ver1 0.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd ec 909 ver1 0 (Ocr-read)
Page 1
HCD-EC709iP/EC909iP 2 NOTES ON CHIP COMPONENT REPLACEMENT - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. FLEXIBLE CIRCUIT BOARD REP AIRING - Keep the temperature of soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the follow-ing safety check before releasing the set to the customer:Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below . LEAKAGE TESTThe AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods.1. A commercial leakage tester , such as the Simpson 229 or RCA WT -540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63T rd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 k 0.15 F AC voltmeter(0.75 V) T o Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONENT W ARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMA TIC DIAGRAMS AND IN THE P ARTS LIST ARE CRITICAL TO SAFE OPERA TION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE P ART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. A TTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS P AR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMA TIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT . NE REMPLACER CES COMPOSANTS QUE P AR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS P AR SONY. CAUTION Use of controls or adjustments or performance of procedures other than those speci ed herein may result in hazardous radia- tion exposure. This appliance is classi ed as a CLASS 1 LASER product.This marking is located on the rear exterior .
Page 2
HCD-EC709iP/EC909iP 3 1. SERVICING NOTES ............................................. 4 2. DISASSEMBL Y 2-1. Disassembly Flow ........................................................... 6 2-2. Side Panel (L)/(R) ........................................................... 6 2-3. Ornament Plate (Dock) or iPod Assy .............................. 7 2-4. IP Board Block, Base (Dock) Block ............................... 8 2-5. Top Panel Block .............................................................. 8 2-6. Back Panel Block ............................................................ 9 2-7. MAIN Board ................................................................... 9 2-8. Front Panel Block ........................................................... 10 2-9. Knob (VOL) .................................................................... 10 2-10. Base Unit (BU-D1BD73) ................................................ 11 2-1 1. Optical Pick-up Block (DA1 1MMVGP) ........................ 11 3. TEST MODE ............................................................ 12 4. ELECTRICAL CHECK ......................................... 13 5. DIAGRAMS 5-1. Block Diagram - CD SER VO, TUNER Section - ........... 14 5-2. Block Diagram - MAIN Section - ................................... 15 5-3. Block Diagram - PANEL, POWER SUPPL Y Section - ........................... 16 5-4. Printed Wiring Board - BD73 Board - ............................ 18 T ABLE OF CONTENTS 5-5. Schematic Diagram - BD73 Board - ............................... 19 5-6. Printed Wiring Boards - iPod & iPhone, JACK Section - ................................... 20 5-7. Schematic Diagram - iPod & iPhone, JACK Section - ................................... 21 5-8. Printed Wiring Board - MAIN Board (Component Side) - ................................ 22 5-9. Printed Wiring Board - MAIN Board (Conductor Side) - .................................. 23 5-10. Schematic Diagram - MAIN Board (1/2) - ..................... 24 5-1 1. Schematic Diagram - MAIN Board (2/2) - ..................... 25 5-12. Printed Wiring Board - P ANEL Board - ......................... 26 5-13. Schematic Diagram - P ANEL Board - ............................ 27 5-14. Printed Wiring Board - POWER Board - ........................ 28 5-15. Schematic Diagram - POWER Board - .......................... 29 6. EXPLODED VIEWS 6-1. Overall Section ............................................................... 34 6-2. Top Panel Section ........................................................... 35 6-3. Front Panel Section ......................................................... 36 6-4. iPod Dock Section .......................................................... 37 6-5. MAIN Board Section ...................................................... 38 6-6. Chassis Section ............................................................... 39 7. ELECTRICAL PARTS LIST .............................. 40
