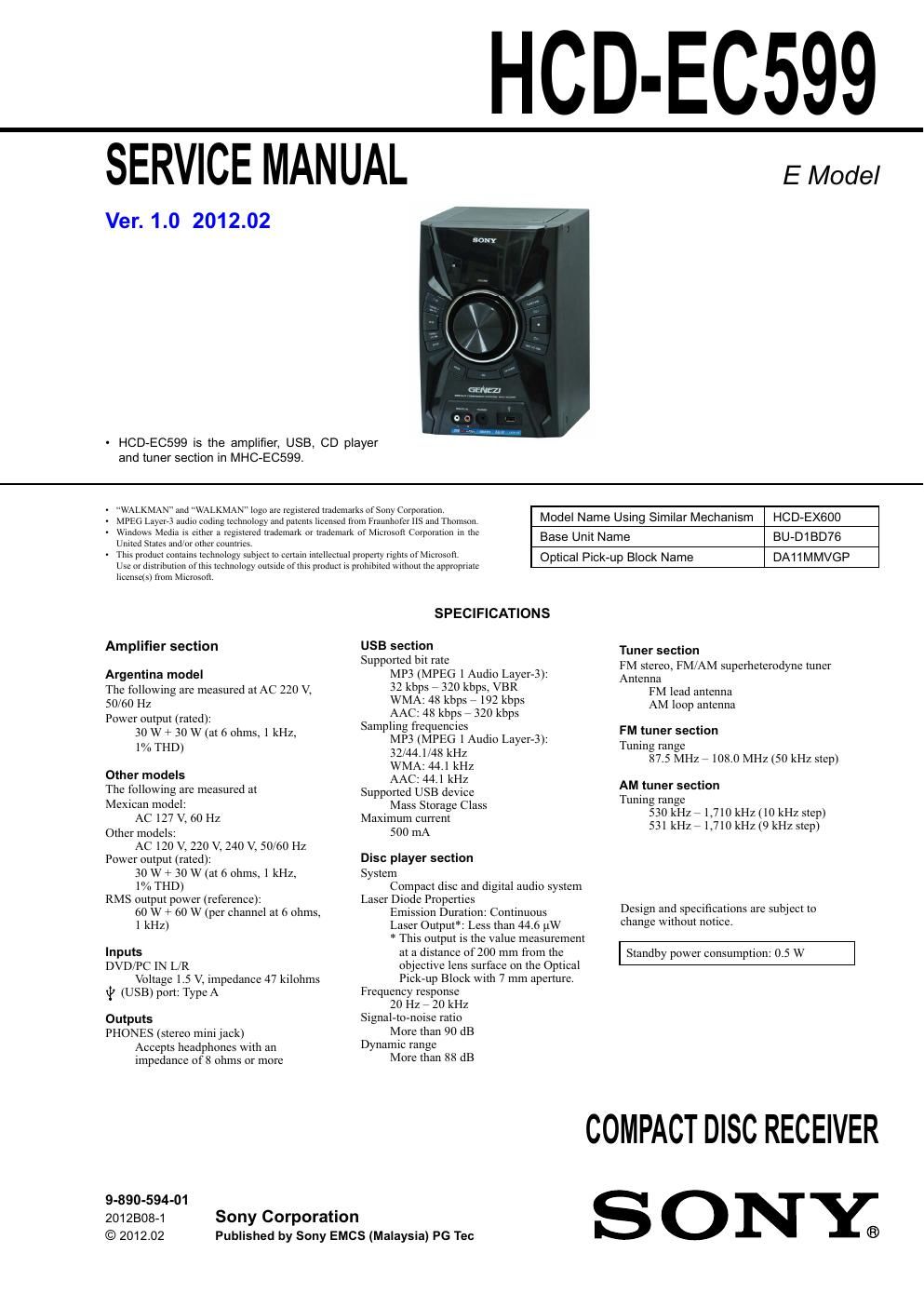

HCD-EC599

SERVICE MANUAL

Ver. 1.0 2012.02

and tuner section in MHC-EC599.

HCD-ECSSQ is the amplifier, USB, CD player

E Model

. "WALKMAN" and \tALKMAN" logo arc mgtsmm Iradc 1rks ofSony Corporation.
«1.ng technology and patents licensed from Fraunhotcr us and Thomson.
dra .s cirhcr A rcgisrcrcd rmdcmnrk or tradcnmrk of Microsoft Corporation in the

MPEG L
. Window
United States andrororhcr countries.

~ 3 audi

. This product Bantams technology subject to certain Intellectual propcrty rights of Microsoft.
Use or distribution ofthts technology outside or this product 15 prohlblmd whom the npproprmtc

ltccnsc(s) from Microsoft

Amplifier section

Argentina model
The following are measured at AC 220 V,
50/60 Hz
Power output (rated):
30 W + 30 W (at 6 ohms, 1 kHz.
1% THD)

Other models
The following are measured at
Mexican model:
AC 127 V, 60 Hz
Other models:
AC 120 V, 220 V, 240 V, 50/60 Hz
Power output (rated):
30 W + 30 W (at 6 ohms, 1 kHz.
1% THD)
RMS output power (reference):
60 W + 60 W (per channel at 6 ohms.
1 kHz)

Inputs
DVD/PC IN UR

Voltage 1.5 V, impedance 47 kilohms
4; (USB) port: TypeA

Outputs

PHONES (stereo mini jack)
Accepts headphones with an
impedance of 8 ohms or more

9-390-594-01
2012B08-1
© 2012.02

Sony Corporation
Published by Sony EMCS (Malaysia) PG Tec

Model Name Using Similar Mechanism HCD-EX600
Base Unit Name BU-D1BD76
Optical Pick-up Block Name DA11MMVGP

SPECIFICATIONS

USB section
Supported bit rate
MP3 (MPEG 1 Audio Layer-3):
32 kbps 7 320 kbps, VBR
WMA: 48 kbps 7 192 kbps
AAC: 48 kbps 7 320 kbps
Sampling frequencies
MP3 (MPEG 1 Audio Layer-3):
32/441/48 kHz
WMA: 44.1 kHz
AAC: 44.1 kHz
Supported USB device
Mass Storage Class
Maximum current
500 mA

Disc player section
System
Compact disc and digital audio system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 pW
* This output is the value measurement
at a distance of 200 mm from the
objective lens surface on the Optical
Pick-up Block with 7 mm aperture.
Frequency response
20 Hz 7 20 kHz
Signal-to-noise ratio
More than 90 dB
Dynamic range
More than 88 dB

Tuner section
FM stereo, FM/AM superheterodyne tuner
Antenna

FM lead antenna

AM loop antenna

FM tuner section
Tuning range
87.5 MHz 7 108.0 MHz (50 kHz step)

AM tuner section

Tuning range
530 kHz7 1,710 kHz (10 kHz step)
531 kHZ71,710 kHz (9 kHz step)

Design and specifications are subject to
change without notice.

Standby power consumpt .5 W

COMPACT DISC RECEIVER

SONY;

Page 2

HCD-EC599

NOTES ON CHIP COMPONENT REPLACEMENT

- Never reuse a disconnected chip component.

- Notice that the minus side ofa tantalum capacitor may be dam»
aged by heat.

FLEXIBLE CIRCUIT BOARD REPAIRING

- Keep the temperature of soldering iron around 270 °C during
repairing.

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsoldering.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure.

This appliance is classified as
a CLASS 1 LASER product.
This marking is located on the
rear exterior.

CLASSl LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

5-10.

5-11.
5-12.
5-13.
5-14.

6-1.
6-2.
6-3.
6-4.
