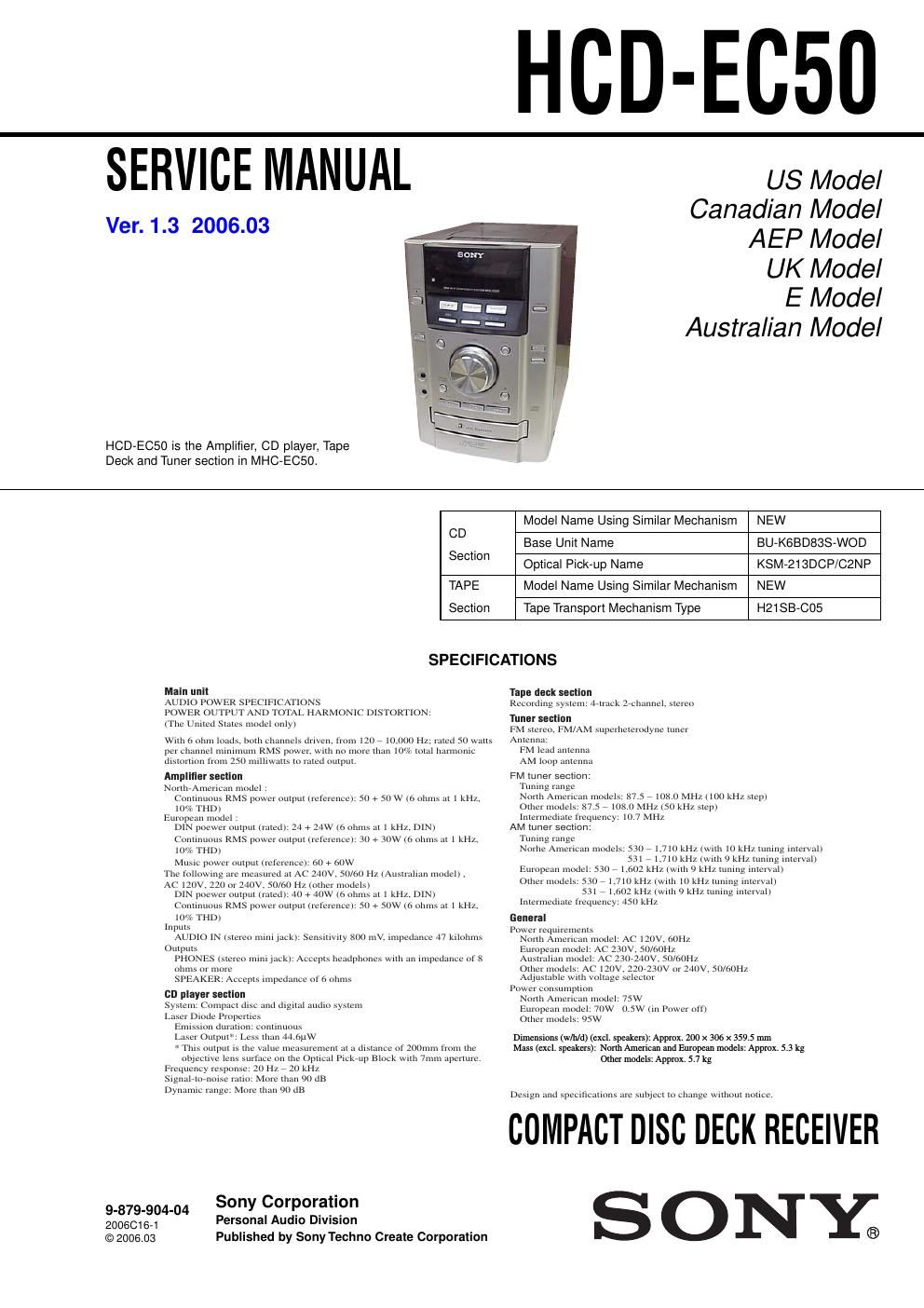

Sony hcd ec 50
This is the 78 pages manual for sony hcd ec 50.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd ec 50 (Ocr-read)
Page 1
2 HCD-EC50 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Side Panel (L) And Side Panel (R) .................................. 7 3-3. Top Section ...................................................................... 7 3-4. Front Panel Section ......................................................... 8 3-5. PANEL Board .................................................................. 8 3-6. JACK Board ..................................................................... 9 3-7. MAIN Board .................................................................... 9 3-8. CD Section And Base Unit (BU-K6BD83S-WOD) Section ....................................... 10 3-9. Chassis (main mold) ........................................................ 11 3-10. PT Board And Power Transformer .................................. 11 4. MECHANICAL ADJUSTMENTS ......................... 12 5. ELECTRICAL ADJUSTMENTS .......................... 12 6. DIAGRAMS 6-1. Block Diagram - BD/DRIVER Section - .................. 18 6-2. Block Diagram - TUNER Section - .......................... 19 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS Q UE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. 6-3. Block Diagram - MAIN Section - ............................. 20 6-4. Printed Wiring Board - BD Section - ........................ 21 6-5. Schematic Diagram - BD Section - ........................... 22 6-6. Printed Wiring Board - MAIN Section - ................... 23 6-7. Schematic Diagram - MAIN Section (1/3) - ............. 24 6-8. Schematic Diagram - MAIN Section (2/3) - ............. 25 6-9. Schematic Diagram - MAIN Section (3/3) - ............. 26 6-10. Printed Wiring Board - PANEL Section - ................. 27 6-11. Schematic Diagram - PANEL Section - .................... 28 6-12. Printed Wiring Board - AMP Section - ..................... 29 6-13. Schematic Diagram - AMP Section - ........................ 30 6-14. Printed Wiring Board - POWER Section - ................ 31 6-15. Schematic Diagram - POWER Section - .................. 31 7. EXPLODED VIEWS 7-1. Overall Section ................................................................ 38 7-2. Front Panel Section ......................................................... 39 7-3. Chassis Section ................................................................ 40 7-4. Top Section ...................................................................... 41 7-5. CD Section And Base Unit (BU-K6BD83S-WOD) Section ....................................... 42 8. ELECTRICAL PARTS LIST .................................. 43
Page 2
3 HCD-EC50 Notes on chip component replacement- Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmete r (0.75 V) To Exposed Metal Parts on Set Earth Ground CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation e xposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the S curve check in CD section adjustment and check that the S curve waveforms is output three times. SECTION 1 SERVICING NOTES This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation e xceeding the limit for Class 1. When carrying this system 1 Remove all discs to protect the CD mechanism. 2 Hold down CD u (play/pause) on the unit, and press ?/1 until STANDBY appears. 3 After LOCK appears, unplug the power cord. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CAUTION
