Page 2

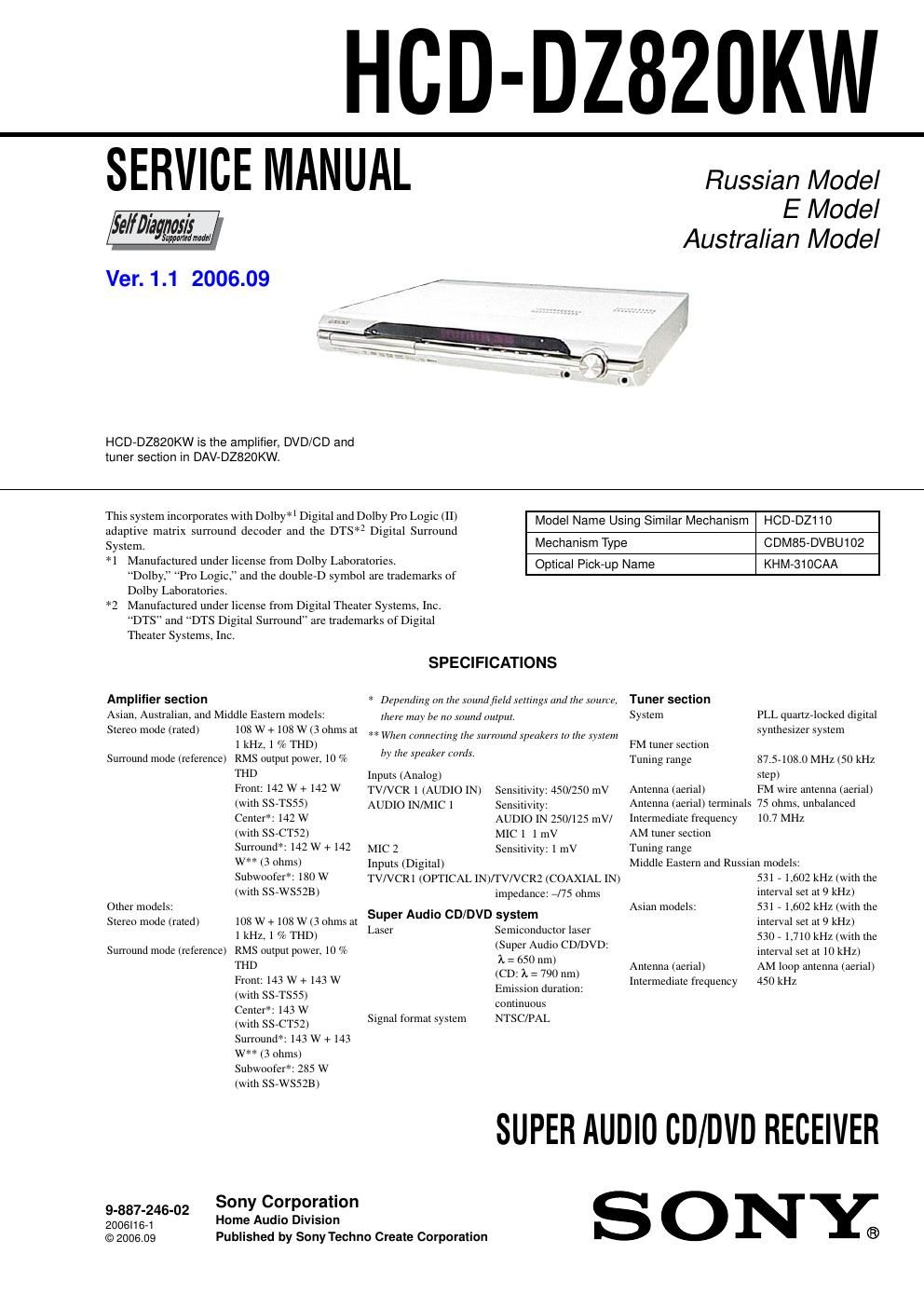

HCD-D2820KW
Video section
Outputs
Inputs
General
Power requirements
Power consumption
Dimensions (approx)
Mass (approx.)
VIDEO: 1 Vpip 75 ohms
S VIDEO:
Y: 1 Vpip 75 ohms
C: 0.286 Vprp 75 ohms
COMPONENT:
Y: 1 Vprp 75 ohms
PE/CH, PR/CRI 0.7 Vp-p
75 ohms
HDMI OUT: Type A (19
pin)
TV/VCRl: 1 Vprp
75 ohms
220 , 240 V AC, 50/60 Hz
On: 170 W
Standby: 0.3 W (at the
Powcr Saving Mode)
430 X 55 X 390 mm
(w/h/d) incl. projecting
pans
4.0 kg
Design and specifications are subjcct to change
without notice.
MODEL IDENTIFICATION
- Rear Panel -
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as
a CLASS 1 LASER product
KLA551 LASERAPPARAT This marking is located on
the rear or bottom exterior.
CLASSI LASER PRODUCT
LUOKAN 1 LASERLAITE
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
I:
Parts No.
Model Part No.
E3 model 2-661-238-2l]
EXCEPT E3 models 2-661-238-7l]
' Abbreviation
E3 :240V AC area in E model
Notes on chip component replacement
- Never reuse a disconnected chip component.
- Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
- Keep the temperature of the soldering iron around 270 °C
during repairing.
- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
- Be careful not to apply force on the conductor when soldering
or unsoldering.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
LP: LEAD FREE MARK
Unleaded solder has the following characteristics.
- Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
0 Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
- Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE
WITH MARK A ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
