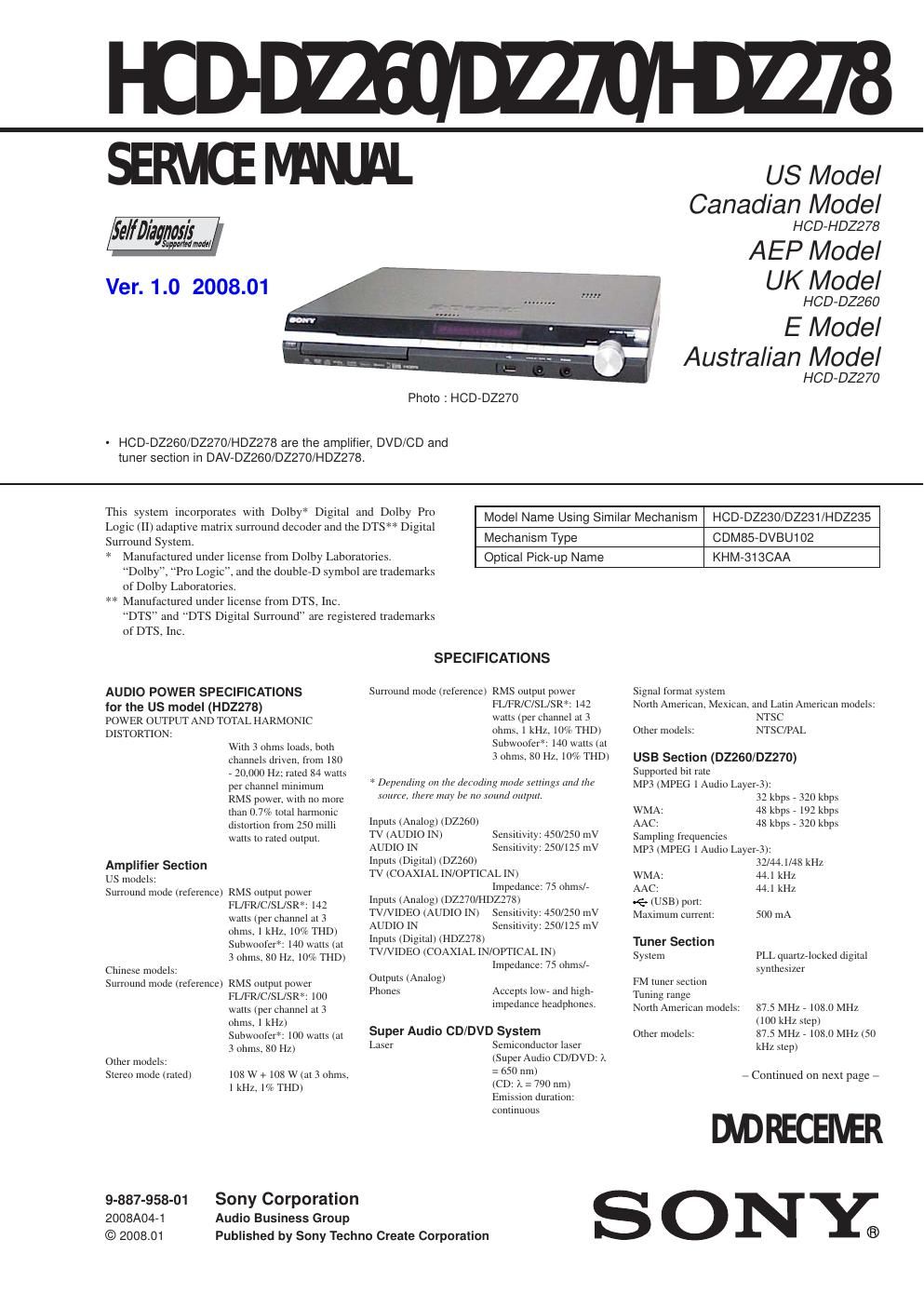

Sony hcd dz 260 hcd dz 270 hcd hdz278

Page 2

HCD-D2260/ D2270/ HD2278

Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate trequency 10.7 MHZ
AM tuner section
Timing range
North American Mexican, and Latin American models:
530 kHz , 11710 kHz (With
the interval set at 10 kHz)
531kl-lz , 1.710 kHz (With
the interval set at 9 kHz)
European, Russian and Middle Eastern models:
531 kHz , 11602 kHz (With
the interval set at 9 kHz)
Australian and New Zealand models:
531 kHz , 1710 kHz (With
the interval set at 9 kHz)
530 kHz 711710 kHz(w1th
the interval set at 10 kHz)
531 kHz , 11602 kHz (With
the interval set at 9 kHz)
530 kHz , 11610 kHz (With
the interval set at 10 kHz)
AM loop antenna (aerial)
450 kHz

Other models:

Antenna (aerial)
Intermediate frequency

Video Section (D2260)
Outputs R/G/B: 0.7 Vprp 75 ohms
I-IDMI OUT: Type A (19 pin)

Video Section (DZZ7D/HDZZ73)
Outputs VIDEO: 1 Vprp 75 ohms
COMPONENT:
Y: 1 Vpsp 75 olnns
lB/CB, PR/CR: 0.7 Vprp
75 ohms
I-IDMI OUT: Type A (19 pin)

Ge neral

Power requirements
NOi1li Atnerrcan models:
Mexican models:
Argentine models:
Latin American models:
Other models:

Power consumption

120 V AC. 60 HZ

120 V AC. 60 HZ

20 V , 240 V AC, 50/60 HZ
110 V , 240 V AC, 50/60 HZ
220 V , 240 V AC. 50/60 Hz

HD2278: On: 155 w
Standby 0.3 w (at the
Power Saving mode)
DZZfiO/DZZ70: On: loow

Standby: (1.3 w (at the
Power Saving mode)

Output voltage (DIGITAL MEDIA PORT)

(DzzoO/HDzz7x only) DC 5 v

Output current (DIGITAL MEDIA PORT)

(DZ260/HDZZ7R only) 700 rnA

Dimensions (approx) 430 mm x to mm x 335 mm
(17 in x 25/3 in x 15 1/4 in)
(w/h/d) incl, projecting parts

Mass (approx. ) 4.2 kg (9 lb 5 oz)

Design and specifications are subiect to change without
notice.

SAFETY-RELATED COMPONET WARNING!

COMPONENTS IDENTIFIED BY MARKAOR DOTTED LINE
WITH MARKAON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL T0 SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS iDENTiPiEs PAR UNE MARQUE ASUFI
LES DIAGRAMMES SCHEMATIQUES ET LA LISTE DES
PIECES SONT CRITIQUES POUR LA SECURITE DE FONC-
TIONNEMENT. NE REMPLACEFI CES com- POSANTS oUE
PAR DES PIECES SONY DONT LES NUMEROS SONT DON-
NES DANS CE MANUEL ou DANS LES SUPPLEMENTS
PUBLiEs PAR SONY.

2

MODEL IDENTIFICATION
- Back Panel -

meow
CEF:

Parts No.
Model Part No.
AEP, UK models 3-273-759-0D
US model 3-273-759-1 D
CND model 3-273-759-2U
E3 model 3-273-760-0D
MX model 3-273-760-2D
E12 model 3-273-760-4D
AUS model 3-273-760-5D
AR model 3-273-760-61]
E15 model 3-273-760-91]
- Abbreviation

AR : Argentina model

AUS :Australian model

CND : Canadian model

E3 : 240 V AC Area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model

MX : Mexican model

Special Component Notice

The components identified by mark [31 contain confidential infure
mation.

Strictly follow the instructions whenever the components are re
paired and/or replaced.

Notice pour composants spéciaux

Les composunts identifies par la marque [El Contiennent des infor-
mations confidentielles.

Suivre scrupuleusement les instructions chaque fois quun com-
posant est remplacé et / ou reparé.
