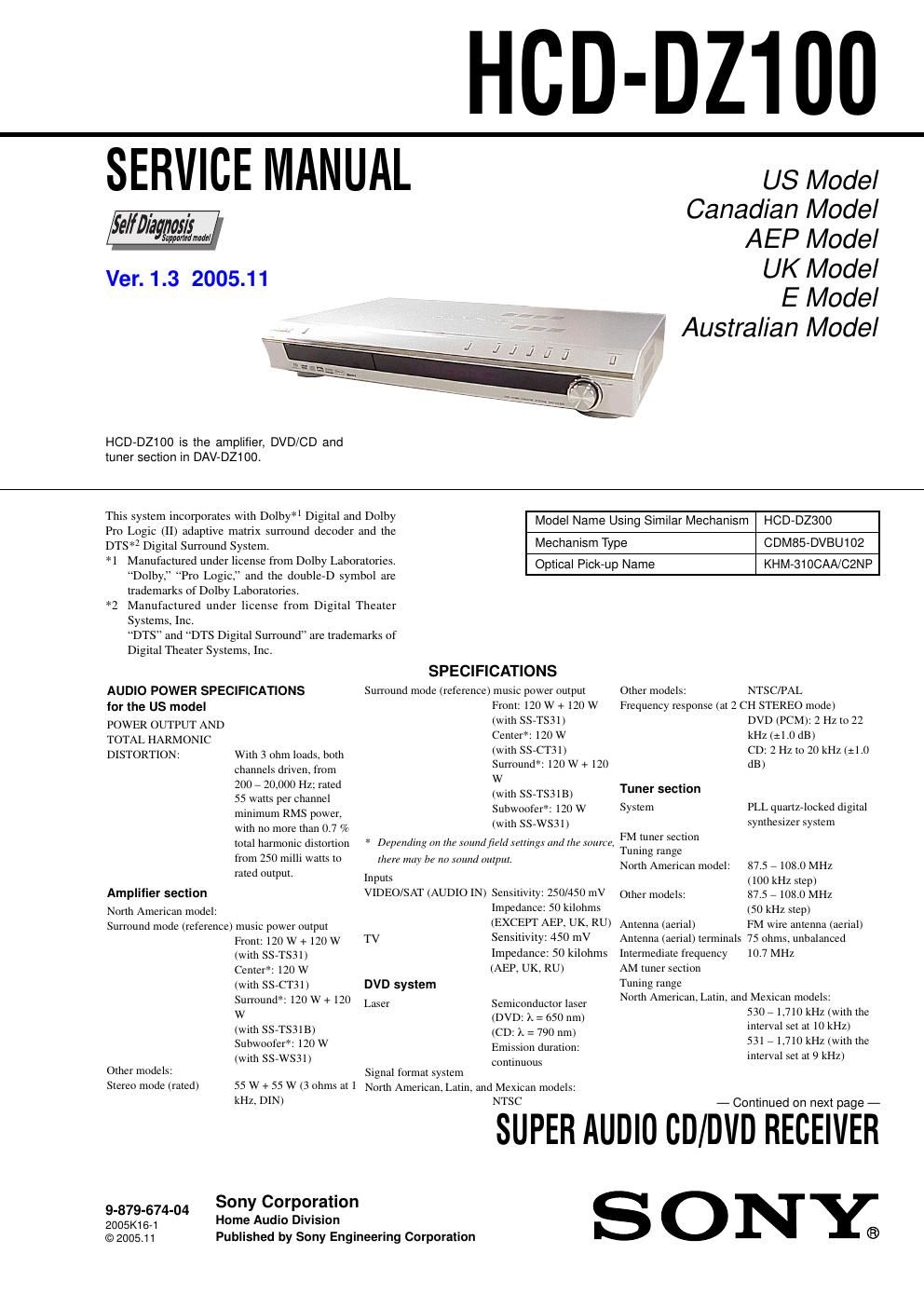

Sony hcd dz 100
This is the 86 pages manual for sony hcd dz 100.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd dz 100 (Ocr-read)
Page 1
2 HCD-DZ100 Ve r. 1.2 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. - Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! - Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. - Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing - Keep the temperature of the soldering iron around 270 °C during repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Video section Outputs Video: 1 Vp-p 75 ohmsS video: Y: 1 Vp- p 75 ohms C: 0. 286 Vp-p 75 ohms COMP ONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.7 V p-p 75 ohms Video: 1 Vp-p 75 ohms R/G/B: 0.7 Vp-p 75 ohms (EXCEPT AEP, UK, RU) (AEP, UK, RU) An tenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz Midd le eastern models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the interval set at 10 kHz) 5 31 – 1,602 kHz (with the interval set at 9 kHz) General Power requirements North American and Mexican models: 120 V AC, 60 Hz Centra l/South American models: 110 – 240 V AC, 50/60 Hz Taiwan model: 12 Korean model: 220 V AC, 60 Hz 0 V AC, 50/60 Hz Other models: 220 – 240 V AC, 50/60 Hz Power c onsumption On: 135 W Standby: 0.3 W (at the Power Saving mode) Dimensions (approx.) 430 70 295 mm (17 2 7/8 11 5/8 inches) (w/h /d) incl. projecting parts Mass (appr ox.) 3.6 kg (7 lb 15 oz) Design and specifications are subject to change without notice. × × ×× MODEL IDENTIFICATION – Rear Panel – Model Part No. AEP, UK models 2-588-951-0 [] RU model 2-588-951-1 [] EA model 2-588-951-2 [] SP model 2-588-951-3[] CND model 2-588-951-4[] AUS model 2-588-951-5 [] KR model 2-588-951-6 [] E32 model 2-588-951-7[] MX model 2-588-951-9[] US model 2-634-883-1[] -Abbreviation AU S: Australian model CND : Canadian model E32 : 110-240V AC area in E model EA : Saudi Arabia model KR : Korean model MX : Mexican model RU : Russian model SP : Singapore model Parts No.
Page 2
3 HCD-DZ100 TABLE OF CONTENTS 1. SERVICING NOTE ................................................... 4 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 10 3-2. Case, Front Panel Assy .................................................... 11 3-3. FL Board ........................................................................\ .. 12 3-4. KEY Board, STBY Board ............................................... 12 3-5. I/O Board, DC Fan .......................................................... 13 3-6. DMB11 Board ................................................................. 13 3-7. MAIN Board .................................................................... 14 3-8. DVD Mechanism Deck (CDM85-DVBU102) ................ 15 3-9. Tray ........................................................................\ .......... 15 3-10. Belt, MS-203 Board ........................................................ 16 3-11. Optical Pick-up (KHM-310CAA/C2NP) ........................ 17 4. TEST MODE ............................................................... 18 5. DIAGRAMS 5-1. Block Diagram – RF/SERVO Section – ......................... 24 5-2. Block Diagram – VIDEO Section – ............................... 25 5-3. Block Diagram – AMP Section – ................................... 26 5-4. Block Diagram – AUDIO Section – ............................... 27 5-5. Block Diagram – POWER Section – .............................. 28 5-6. Printed Wiring Board – DMB11 Board (Side A) – ........ 29 5-7. Printed Wiring Board – DMB11 Board (Side B) – ........ 30 5-8. Schematic Diagram – DMB11 Board (1/5) – ................. 31 5-9. Schematic Diagram – DMB11 Board (2/5) – ................. 32 5-10. Schematic Diagram – DMB11 Board (3/5) – ................. 33 5-11. Schematic Diagram – DMB11 Board (4/5) – ................. 34 5-12. Schematic Diagram – DMB11 Board (5/5) – ................. 35 5-13. Printed Wiring Board – MAIN Section (Side A) – ........ 36 5-14. Printed Wiring Board – MAIN Board (Side B) – ........... 37 5-15. Schematic Diagram – MAIN Board (1/7) – ................... 38 5-16. Schematic Diagram – MAIN Board (2/7) – ................... 39 5-17. Schematic Diagram – MAIN Board (3/7) – ................... 40 5-18. Schematic Diagram – MAIN Board (4/7) – ................... 41 5-19. Schematic Diagram – MAIN Board (5/7) – ................... 42 5-20. Schematic Diagram – MAIN Board (6/7) – ................... 43 5-21. Schematic Diagram – MAIN Board (7/7) – ................... 44 5-22. Printed Wiring Board – PANEL Section – ..................... 45 5-23. Schematic Diagram – PANEL Section – ....................... 46 5-24. Printed Wiring Board – I/O Board – .............................. 47 5-25. Schematic Diagram – I/O Board (1/2) – ........................ 48 5-26. Schematic Diagram – I/O Board (2/2) – ........................ 49 5-27. Printed Wiring Board – MS-203 Board – ....................... 50 5-28. Schematic Diagram – MS-203 Board – ......................... 50 6. EXPLODED VIEWS 6-1. Overall Section ................................................................ 63 6-2. Front Panel Section ......................................................... 64 6-3. Chassis Section ................................................................ 65 6-4. DVD Mechanism Deck Section (CDM85-DVBU102) ... 66 7. ELECTRICAL PARTS LIST .................................. 67 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PA RT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS Q UE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 k Ω 0.15 µF AC voltmete r (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. Ve r. 1.2
