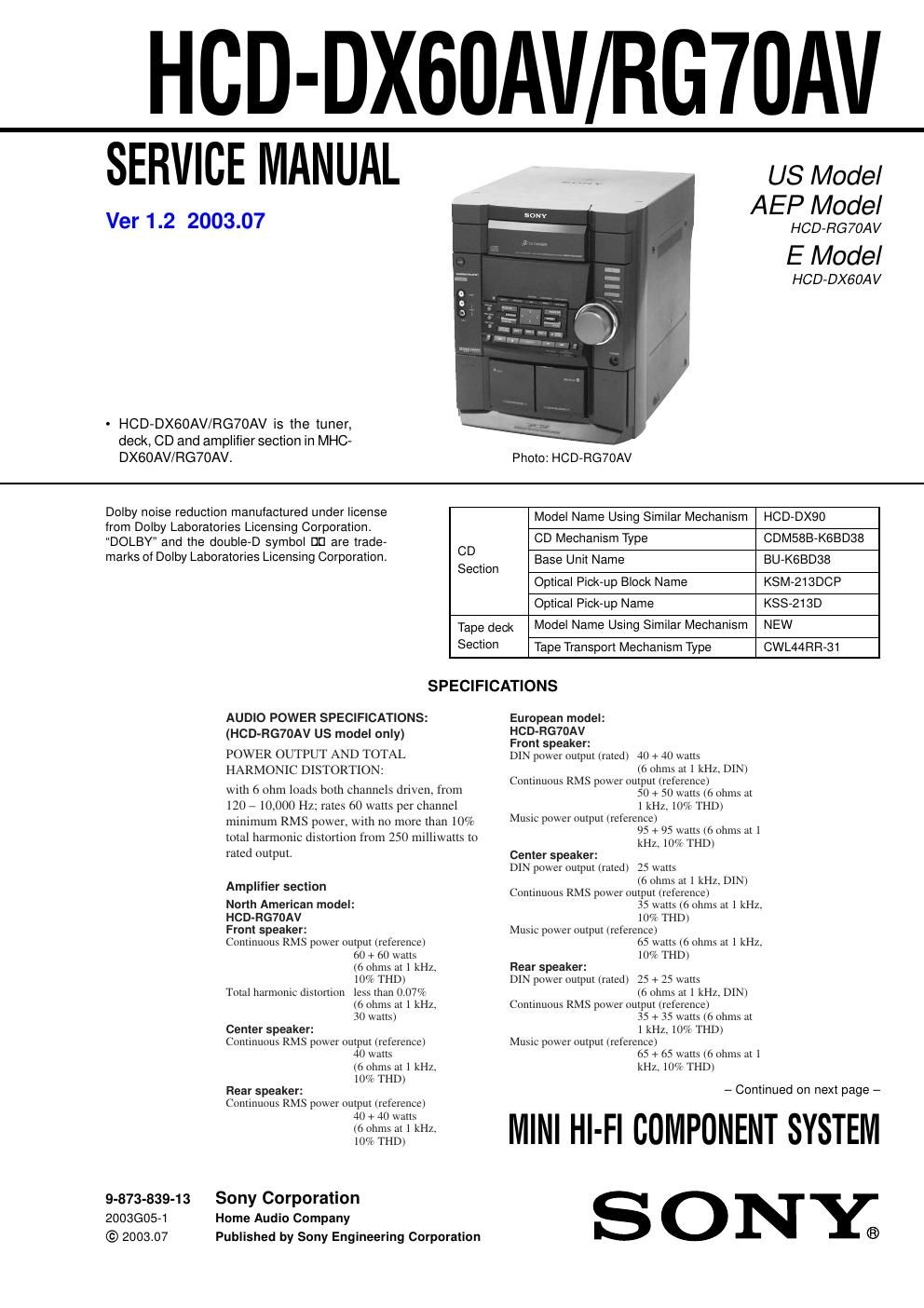

Page 1
2 HCD-DX60AV/RG70AV Outputs PHONES (stereo mini jack): accepts headphones of 8 ohms or more FRONT SPEAKER: accepts impedance of 6 to 16 ohms REAR SPEAKER: accepts impedance of 6 to 16 ohms CENTER SPEAKER: accepts impedance of 6 to 16 ohms WOOFER: voltage 1 V, impedance 1 kilohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 660 nm Out put Level–18 dBm Tape deck section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Wow and flutter±0.2% W.Peak (IEC) 0.35% W.RMS (NAB) ±0.3% W.Peak (DIN) Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner sectionTuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner sectionTuning range Pan-American model: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) European model: 531 – 1,602 kHz (with the interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 60Hz Power consumption North American model: 170 watts European model: 150 watts 0.5 watts (at the Power Saving Mode) Mexican model: 150 watts Dimensions (w/h/d) Approx. 280 × 325 × 421 mm Mass North American model: Approx. 9.0 kg European model: Approx. 10.0 kg Mexican model: Approx. 9.5 kg Supplied accessories: AM loop antenna (1) Remote commander (1) Batteries (2) FM lead antenna (1) Front speaker pads (8) Design and specifications are subject to change without notice. Mexican model: HCD-DX60AV Front speaker: DIN power output (rated) 45 + 45 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Center speaker: DIN power output (rated) 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 watts (8 ohms at 1 kHz, 10% THD) Rear speaker: DIN power output (rated) 30 + 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Inputs MD/VIDEO IN (phono jacks): voltage 250/450 mV, impedance 47 kilohms DVD INPUT: FRONT IN (phono jacks): voltage 450 mV, impedance 47 kilohms REAR IN (phono jacks): voltage 450 mV, impedance 47 kilohms CENTER IN (phono jacks): voltage 450 mV, impedance 47 kilohms WOOFER IN (phono jacks): voltage 450 mV, impedance 47 kilohms
Page 2
3 HCD-DX60AV/RG70AV SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement -Never reuse a disconnected chip component. -Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing -Keep the temperature of soldering iron around 270˚C during repairing. -Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). -Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens.SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground
