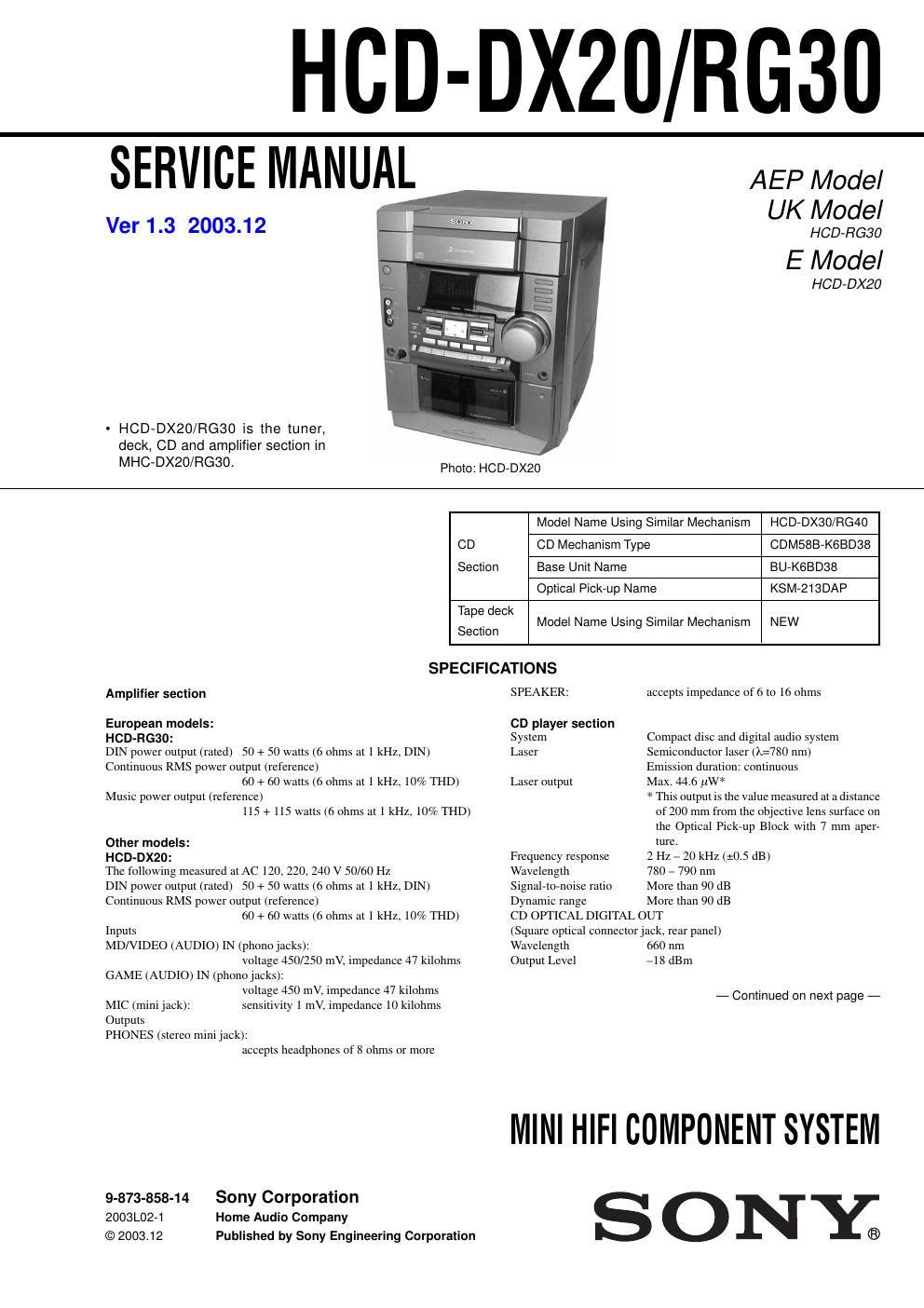

Page 1

HCD-DX20/RG30

SERVICE MANUAL

Ver 1.3 2003.12

- HCD-DX20/R630 is the tuner,
deck, CD and amplifier section in
MHC-DX20/RG30.

AEP Model
UK Model

HCD-HG30

E Model

HOD-0X20

Photo: HCD-DXZO

Model Name Using Similar Mechanism HCD-DXSO/FIG40
CD CD Mechanism Type CDMSSB-KGBD38
Section Base Unit Name BU-KGBD38
Optical Pick-up Name KSM-213DAP
Tape deck _ _ _ _
, Model Name Usmg Similar Mechanism NEW
Section

SPECIFICATIONS

Amplifier section

European models:
HCD-RG30:
DIN power output (rated) 50 + 50 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)

60 + 60 watts (6 ohms at 1 kHz, 10% THD)
Music power output (reference)

115 + 115 watts (6 ohms at 1 kHz, 10% THD)

Other models:
HCD-DXZO:
The following measured at AC 120, 220, 240 V 50/60 Hz
DIN power output (rated) 50 + 50 watts (6 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)

60 + 60 watts (6 ohms at 1 kHz, 10% THD)
Inputs
MD/VIDEO (AUDIO) IN (phonojacks):

voltage 450/250 mV, impedance 47 kilohms
GAME (AUDIO) IN (phono jacks):
voltage 450 mV, impedance 47 kilohms
MIC (minijack): sensitivity 1 mV, impedance 10 kilohms
Outputs
PHONES (stereo mini jack):

accepts headphones of 8 ohms or more

9-873-858-14 Sony Corporation
2003L02-1 Home Audio Company
© 2003.12 Published by Sony Engineering Corporation

SPEAKER: accepts impedance of 6 to 16 ohms

CD player section

System Compact disc and digital audio system
Laser Semiconductor laser 0:780 nm)

Emi, 'on duration: continuous
Laser output Max. 44.6 W"

* This output is the value measured at a distance
of 200 mm from the objective lens surface on
the Optical Pick-up Block with 7 mm aper-
ture.

Frequency response 2 Hz - 20 kHz (20.5 dB)

Wavelength 780 - 790 nm
Signal-to-noise ratio More than 90 dB
Dynamic range More than 90 dB
CD OPTICAL DIGITAL OUT

(Square optical connector jack, rear panel)
Wavelength 660 nm

Output Level -18 dBm

- Continued on next page -

MINI HlFl COMPONENT SYSTEM
S 0 NY..

Page 2

HCD-DX20/RG30

Tape deck section
Recording system
Frequency response

4-track 2-channel stereo
40 - 13,000 Hz (:3 dB), using Sony TYPE]
cassette

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

Antenna

Antenna terminals
Intermediate frequency

87.5 -108.0 MHz
FM lead antenna
75 ohm unbalanced
10.7 MHZ

AM tuner section
Tuning range
European and Middle Eastern models:
531 - 1,602 kHz (with the interval set at 9 kHz)

Other models: 531 - 1,602 kHz (with the interval set at 9 kHz)
530 - 1,710 kHz (with the interval set at 10 kHz)

Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

General

Power requirements

230 VAC, 50/60 Hz
120 VAC, 50/60 Hz

European models:
Mexican models:

Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
European models: 110 watts
0.5 watts (at the Power Saving Mode)
Other models: 110 watts

Dimensions (w/h/d) Approx. 280 x 325 x 421 mm

Mass
European models: Approx. 8.5 kg
Other models: Approx. 8.5 kg

Supplied accessories: AM loop antenna (1)
Remote Commander (1)
Batteries (2)

FM lead antenna (1)
Front speaker pads (8)

Design and specifications are subject to change without notice.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts

The flexible board is easily damaged and should be handled with
care

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.

Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.

CLASSl LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPAHAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure

Notes on chip component replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be
damaged by heat

Flexible Circuit Board Repairing

0 Keep the temperature of soldering iron around 270°C
during repairing.

0 Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

0 Be careful not to apply force on the conductor when soldering
or unsoldering.
