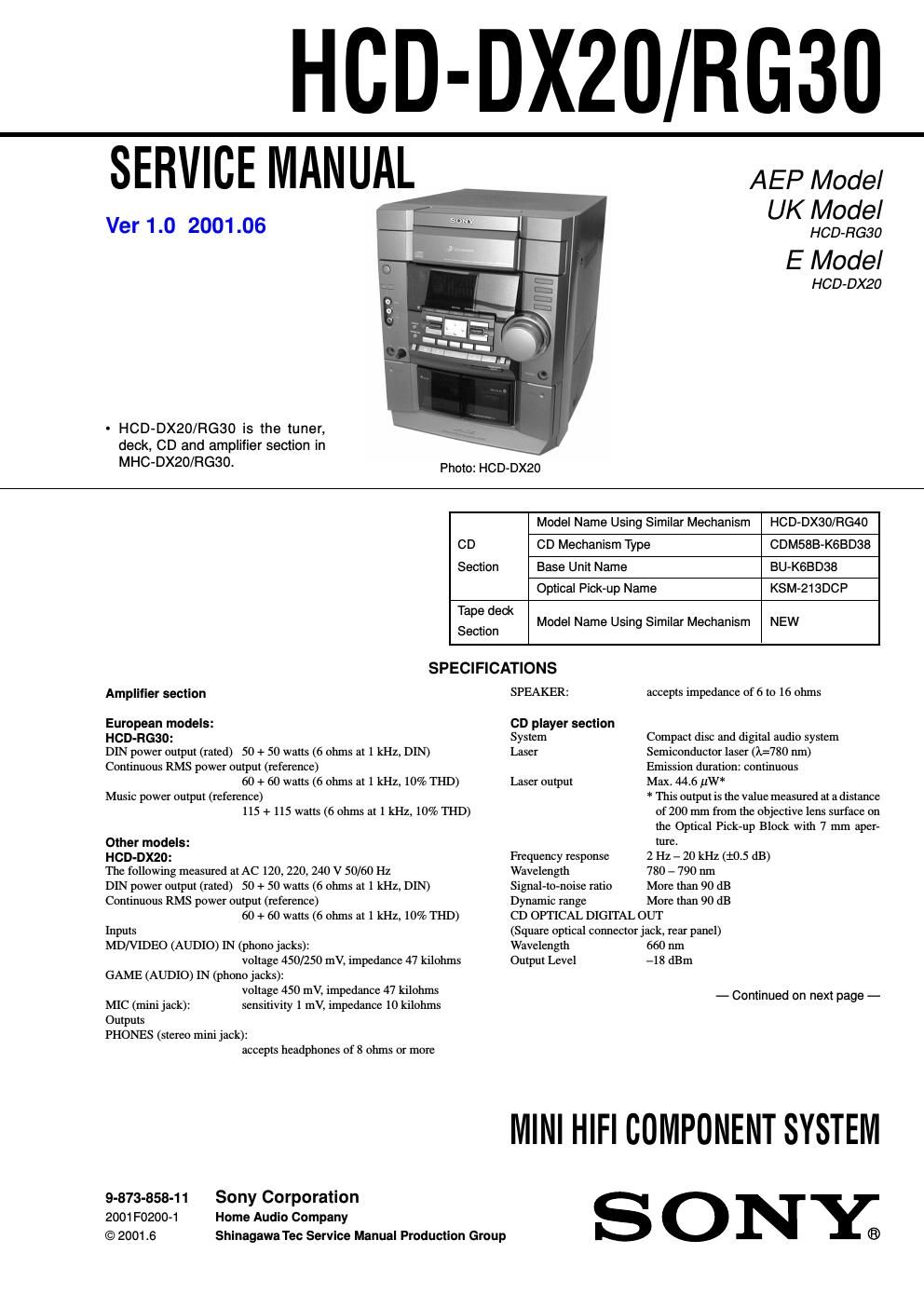

HCD-DXZD/RGSD

SERVICE MANUAL

Ver 1.0 2001.06 I

. HCD-DX20/RG30 is the tuner,
deck, CD and amplifier section in

AEP Model
UK Model

HOD-H630

E Model

HOD-0X20

MHC-DX20/RG30. Photo: HCD-DX20

C D
Section

Model Name Using Similar Mechanism HCD-DX30/RG40

CD Mechanism Type CDMSBB-KGBD38
Base Unit Name BU-KSBD38
Optical Pick-up Name KSM-213DCP

Tape deck
Section

Model Name Using Similar Mechanism NEW

SPECIFICATIONS

Amplifier section SPEAKER: accepts impedance of 6 to 16 ohms
European models: CD player section

HCD-RGSD: System Compact disc and digital audio system
DIN power output (rated) 50 + 50 watts (6 ohms at. 1 kHz, DIN) Laser Semiconductor laser 00:780 nm)

Continuous RMS power output (reference)

Emission duration: continuous

60 + 60 watts (6 ohms at 1 kHz, 10% THD) Laser output Max. 44.6 [,1W*

Music power output (reference)
115 +115 watts (6 ohms at 1 kHz, 10% THD)

Other models:

* This output is the value measured at a distance
of 200 mm from the objective lens surface on
the Optical Pick-up Block with 7 mm aper-
ture.

HCD-DXZO: Frequency response 2 Hz - 20 kHz (:05 dB)
The following measured at AC 120, 220, 240 V 50/60 Hz Wavelength 780 - 790 nm
DIN power output (rated) 50 + 50 watts (6 ohms at. 1 kHz, DIN) Signal-to-noise ratio More than 90 dB
Continuous RMS power output (reference) Dynamic range More than 90 dB

60 + 60 watts (6 ohms at 1 kHz, 10% THD) CD OPTICAL DIGITAL OUT
Inputs (Square optical connector jack, rear panel)
MD/VIDEO (AUDIO) 1N (phono jacks): Wavelength 660 nm

voltage 450/250 mV, impedance 47 kilohms Output Level -18 dBm

GAME (AUDIO) IN (phono jacks):

voltage 450 mV, impedance 47 kilohms
MIC (rnini jack): sensitivity 1 mV, impedance 10 kilohms
Outputs
PHONES (stereo mini jack):

accepts headphones of 8 ohms or more

- Continued on next page -

MINI HIFI COMPONENT SYSTEM

9-873-858-11 Sony Corporation
2001 F0200-1 Home Audio Company
© 2001.6 Shinagawa Tec Service Manual Production Group

ONY®

Page 2

HCD-DX20/RG30

Tape deck section
Recording system
Frequency response

4-track 2-channel stereo
40 - 13,000 Hz (:3 dB), using Sony TYPE]
cassette

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section
Tuning range

Antenna

Antenna terminals
Intermediate frequency

87.5 -108.0 MHz
FM lead antenna
75 ohm unbalanced
10.7 MHZ

AM tuner section
Tuning range
European and Middle Eastern models:
531 - 1,602 kHz (with the interval set at 9 kHz)

Other models: 531 - 1,602 kHz (with the interval set at 9 kHz)
530 - 1,710 kHz (with the interval set at 10 kHz)

Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

General

Power requirements

230 VAC, 50/60 Hz
120 VAC, 50/60 Hz

European models:
Mexican models:

Other models: 120 V, 220 V or 230 - 240 V AC, 50/60 Hz
Adjustable with voltage selector
Power consumption
European models: 110 watts
0.5 watts (at the Power Saving Mode)
Other models: 110 watts

Dimensions (w/h/d) Approx. 280 x 325 x 421 mm

Mass
European models: Approx. 8.5 kg
Other models: Approx. 8.5 kg

Supplied accessories: AM loop antenna (1)
Remote Commander (1)
Batteries (2)

FM lead antenna (1)
Front speaker pads (8)

Design and specifications are subject to change without notice.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts

The flexible board is easily damaged and should be handled with
care

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.

Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1.

CLASSl LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPAHAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radia-
tion exposure

Notes on chip component replacement

0 Never reuse a disconnected chip component.

0 Notice that the minus side of a tantalum capacitor may be
damaged by heat

Flexible Circuit Board Repairing

0 Keep the temperature of soldering iron around 270°C
during repairing.

0 Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

0 Be careful not to apply force on the conductor when soldering
or unsoldering.
