Page 2

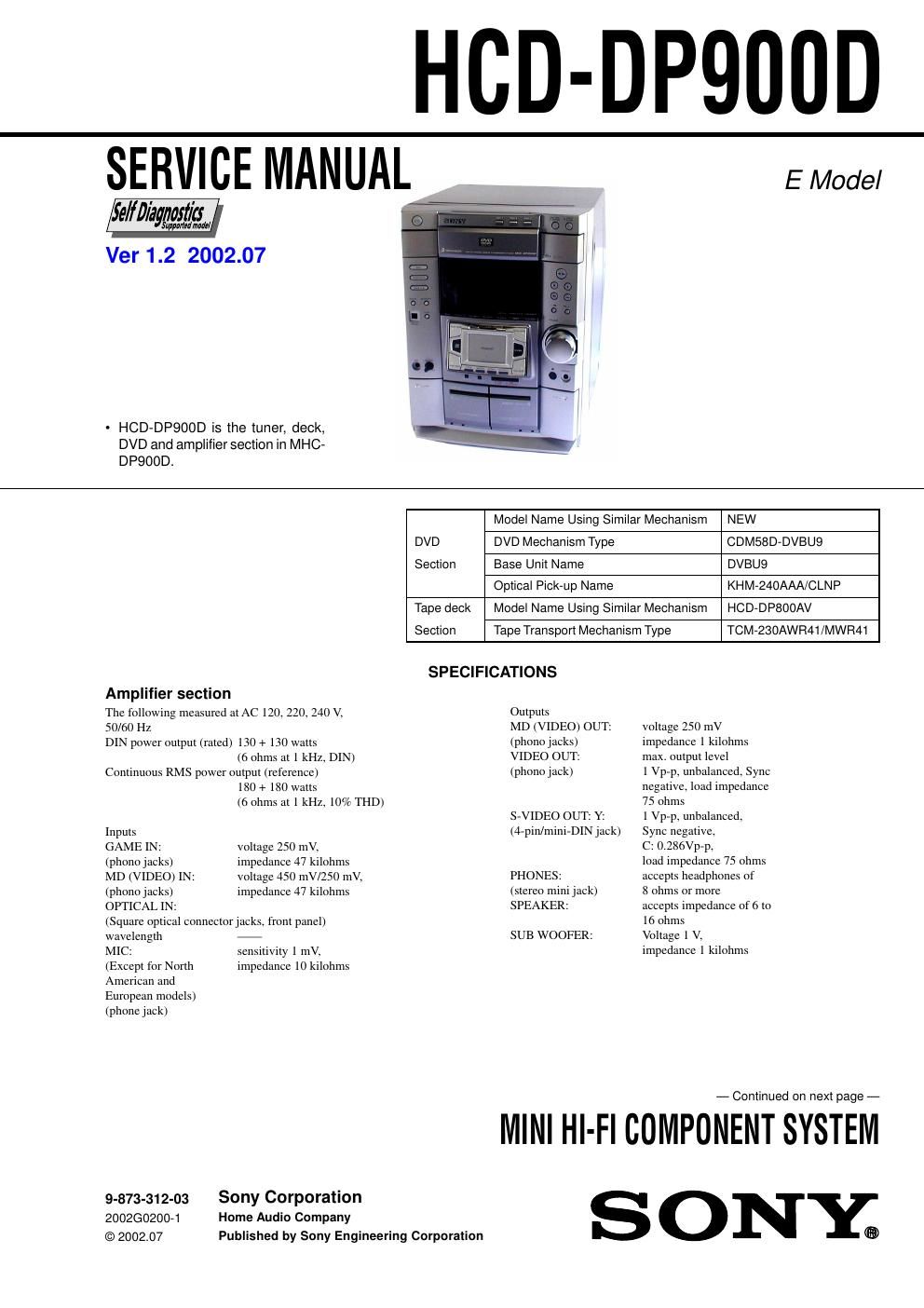

HCD-DP900D

DVD player section

Laser Semiconductor laser
(DVD: 1:650 nm,
CD: )L =780 nm)
Emission duration:
continuous

Frequency response DVD (PCM 48 kHz):
2 Hz - 22 kHz = (:1 dB)
CD: 2Hz - 20 kHz =
(:1 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

Video color system format
NTSC, PAL

DIGITAL OUT OPTICAL

(Square optical connector jack, rear panel)

Wavelength 660 nm

Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 - 13,000 Hz (i3 dB),
(DOLBY NR OFF) using Sony TYPE I
cassette,
40 - 14,000 Hz (i3 dB),
using Sony TYPE II
cassette

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section

Tuning range 531 - 1,602 kHz
(with the interval set at 9 kHz)
530 - 1,710 kHz
(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal

Intermediate frequency 450 kHz

General
Power requirements
Mexican model: 120 V AC, 60 Hz
Thailand model: 220 V AC, 50/60 Hz
Other models: 120 V, 220 V or
230 - 240 V AC,
50/60 Hz
Adjustable with voltage
selector
Power consumption 210watts
Dimensions (w/h/d) Approx. 280 x 360 x 365mm
Mass Approx. 12.5 kg
Supplied accessories: AM loop antenna (1)
FM lead antenna (1)

Remote commander (1)
Batteries (2)

Video cable (1)

Front speaker pads (8)

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINEWITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.

The flexible board is easily damaged and should be handled with
care

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

Laser component in this product is capable
of emitting radiation exceeding the limit for
Class 1,

CLASS l LASER PRODUCT
LUOKAN I LASERLAITE

KLASS l LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The
CLASS 1 LASER PRODUCT MARKING is located on the rear
exterior.

CAUTION

Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure,

Notes on chip component replacement

- Never reuse a disconnected chip component,

- Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing

- Keep the temperature of soldering iron around 270C
during repairing,

- Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

- Be careful not to apply force on the conductor when soldering
or unsoldering.
