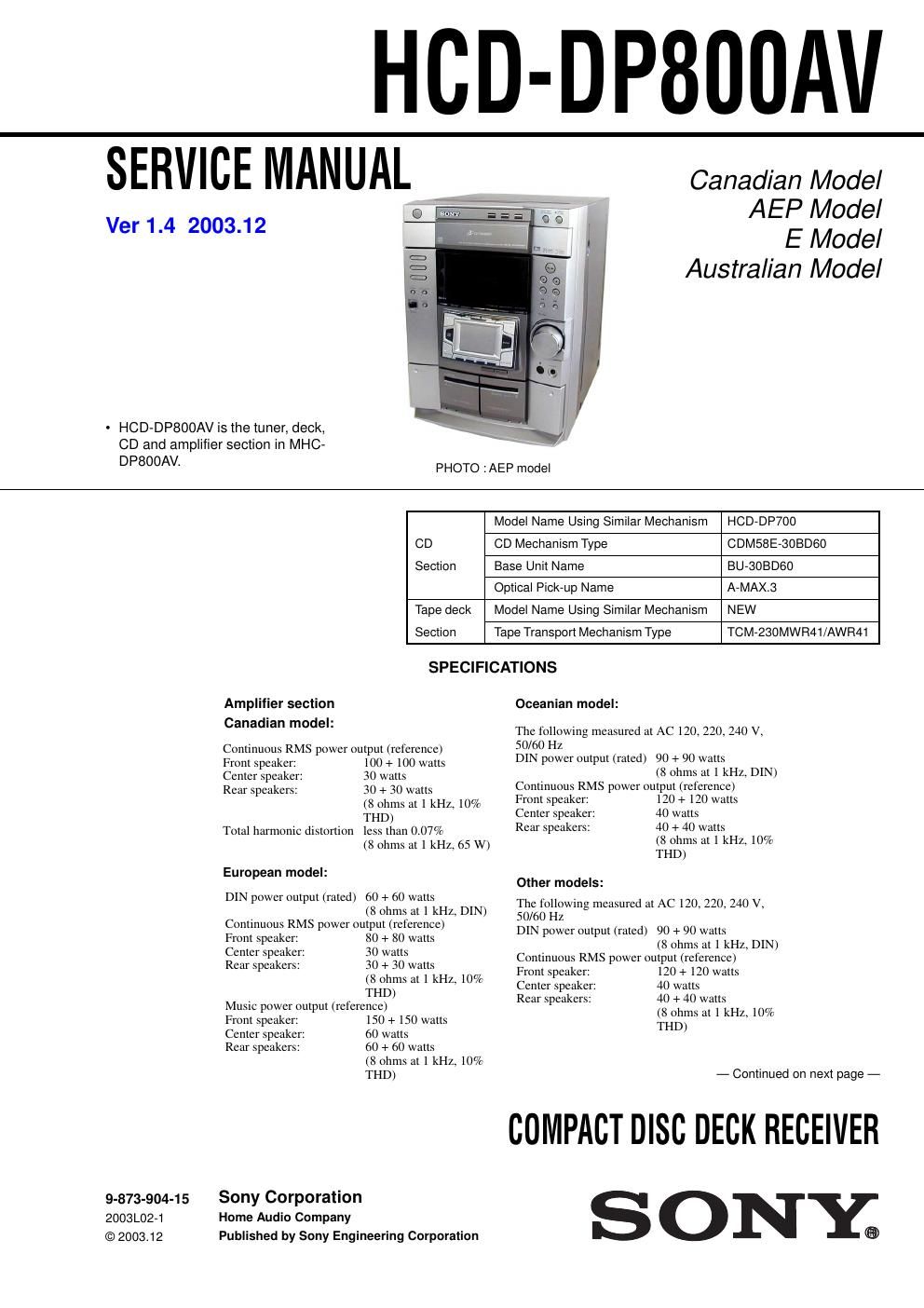

Page 1

HCD-DP800AV

Canadian Model
AEP Model

E Model
Australian Model

SERVICE MANUAL f

Ver 1.4 2003.12

- HCD-DPSOOAV is the tuner, deck,
CD and amplifier section in MHC-

DPBOOAV PHOTO :AEP model
Model Name Using Similar Mechanism HCD-DP7OO
CD CD Mechanism Type CDM58E-3OBD60
Section Base Unit Name BU-BOBDGO
Optical Pick-up Name A-MAX.3
Tape deck Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type TCM-23OMWFt41/AWR41
SPECIFICATIONS
Amplifier section Oceanian model:
canad'a" m°de" The following measured at AC 120, 220, 240 v,
Continuous RMS power output (reference) 50/60 HZ
me speaker: 100 + 100 watts DIN power output (rated) 90 + 90 watts
Center speaker: 30 watts _ (8 hmfi 1 1 ksz DIN)
Rear speakers: 30 + 30 watts Continuous RMS power output (reterenee)
(3 ohms at 1 kHz 10% Front speaker: 120+ 120 watts
THD) Y Center speaker: 40 watts
Total harmonic distortion less than 0.07% Rear speakers: 40 l' 40 walls
(8 ohms at 1 kHz, 65 W) (8 Ohms 1 1 ksz 10%
THD)
Euro ean model:
p Other models:
DIN PW "11 (1) (0 + 60 5 The following measured at AC 120, 220, 240 v,
(8 ohms at 1 kHz, DIN) 50/601-[1
Continuous RMS power output (reterence) DIN power output (rated) 90 + 90 watts
Front speaker: 80 + 80 watts (8 ohms at 1 kHz DIN)
Center speaker: 30 watts Continuous RMS power output (reference)
Rear speakers: 30+ 30 watts , \ , _ \
8 h , 1 kH' 100/, Front speaker. 120+ 120 watts
Erl-fDmS 11 l 0 Center speaker: 40 watts
. : ) Rear speakers: 40 + 40 watts
MUSIC power output (reterenee) (8 0th at 1 kHz 10%
Front speaker: 150 + 150 watts THD) '
Center speaker: 60 watts
Rear speakers: 60 + 60 walls
(8 ohms at 1 kHz, 10%
THD) - Continued on next page -
9-873-904-15 Sony Corporation
2003L02-1 Home Audio Company
© 2003.12 Published by Sony Engineering Corporation ®

Page 2

HCD-DP8ODAV

Inputs

GAME IN: voltage 250 mV,

(phono jacks) impedance 47 kilohms
MDNIDEO IN: voltage 450 mV/250 mV,
(phono jacks) impedance 47 kilohms
OPTICAL IN:

(Square optical connector jacks, front panel (North
American and European models only), or front and
rear panels (except for North American and European
models))

MIC: sensitivity 1 mV,

(Except for North impedance 10 kilohms
American and

European models)

(phone jack)

Outputs

MD (VIDEO) OUT: voltage 250 mV

(phono jacks) impedance 1 kilohms

PHONES: accepts headphones of

(stereo mini jack) 8 ohms or more

FRONT SPEAKER accepts impedance of 8 to
16 ohms

REAR SPEAKER: accepts impedance of 8 to
16 ohms

CENTER SPEAKER: accepts impedance of 8 to
16 ohms

SUB WOOFER: Voltage 1 V,

impedance 1 kilohms
CD player section

System Compact disc and digital
audio system

Laser Semiconductor laser
(1:660 nm)

Frequency response 2 Hz 7 20 kHz (i0.5 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

DIGITAL OUT OPTICAL

(Square optical connector jack, rear panel)

wavelength 660 nm

Tape player section

Recording system 4-track 2-channel stereo

Frequency response 40 7 13,000 Hz (i3 dB),

(DOLBY NR OFF) using Sony TYPEl
cassette,
40 7 14,000 Hz (:3 dB),
using Sony TYPE 11
cassette

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 7 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Pan American model: 530 7 1,710 kHz
(with the interval set at
10 kHz)
531 7 1,710 kHz
(with the interval set at
9 kHz)
European and Middle Eastern models:
531 7 1,602 kHz
(with the interval set at
9 kHz)
Other models: 531 7 1,602 kHz
(with the interval set at
9 kHz)
530 7 1,710 kHz
(with the interval set at
10 kHz)
Antenna AM loop antenna
Antenna terminals Extemal antenna terminal
Intermediate frequency 450 kHz

2

General

Power requirements
North American model: 120 V AC, 60 Hz

European model: 230 V AC, 50/60 Hz
Australian model: 230 7 240 V AC,

50/60 Hz
Mexican model: 120 V AC, 60 Hz
Korean model: 220 V AC, 60 Hz
Other models: 120 V, 220 V or

230 7 240 V AC,

50/60 Hz

Adjustable with voltage

selector

Power consumption

Canadian model: 190 VA
European model: 170 watts
0.5 watts (during Power
Saving Mode)
Other models: 210 watts
Dimensions (w/h/d) Approx. 280 x 360 x 365 mm
Mass

North American and European models:
Approx. [0.5 kg

Other models: Approx. 12.0 kg
Supplied accessories: AM loop antenna (1)
FM lead antenna (1)

Remote commander (1)
Batteries (2)
Front speaker pads (8)
Center and rear speaker
pads
Design and specifications are subject to change
without notice.

SAFETY-RELATED COMPONENT WARNING I!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

Les COMPOSANTS IDENTIFES PAR UNE MARQUE A sun Les
DIAGRAMMES SCHEMATIOUES ET LA LISTE DES PIECES SONT
CRITIQUES POUR LA sEcuane DE FONCTIONNEMENT. Ne
REMPLACER ces COMPOSANTS oue PAR DES PIEses SONY
DONT LES NUMEROS SONT DONNEs DANS ce MANUEL ou
DANS Les SUPPEMENTS PUBLIES PAR SONY.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body
During repair, pay attention to electrostatic breakdown and also
use the procedure in the printed matter which is included in the
repair parts

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
