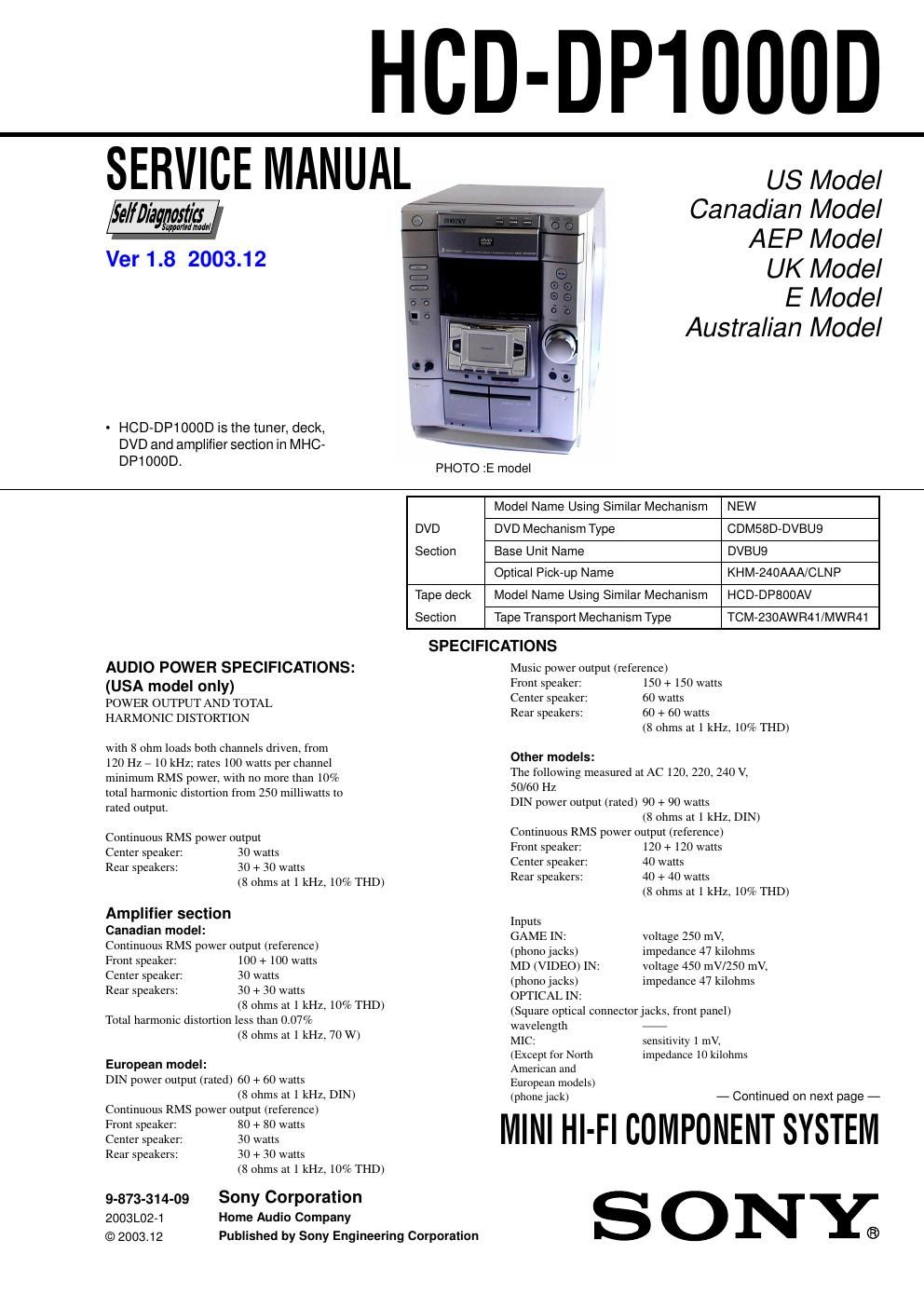

Page 1

HCD-DP1000D

SERVICE MANUAL

Ver 1.8 2003.12

- HCD-DPtOOOD is the tuner, deck,
DVD and amplifier section in MHC-

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model

DP OOOD- PHOTO :E model
Model Name Using Similar Mechanism NEW
DVD DVD Mechanism Type CDM58D-DVBU9
Section Base Unit Name DVBU9
Optical Pick-up Name KHM-240AAA/CLNP
Tape deck Model Name Using Similar Mechanism HCD-DPSOOAV
Section Tape Transport Mechanism Type TCM-230AWR41/MWFI41
SPECIFICATIONS

AUDIO POWER SPECIFICATIONS:

(USA model only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION

with 8 ohm loads both channels driven, from
120 Hz - 10 kHz; rates 100 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milliwatts to
rated output.

Continuous RMS power output
Center speaker: 30 watts
Rear speakers: 30 + 30 watts
(8 ohms at 1 kHz, 10% THD)

Amplifier section
Canadian model:
Continuous RMS power output (reference)
Front speaker: 100 + 100 watts
Center speaker: 30 watts
Rear speakers: 30 + 30 watts
(8 ohms at 1 kHz, 10% THD)
Total harmonic distortion less than 0.07%
(8 ohtns at 1 kHz, 70 W)

European model:
DIN power output (rated) 60 + 60 watts

(8 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)

Front speaker: 80 + 80 watts
Center speaker: 30 watts
Rear speakers: 30 + 30 watts

(8 ohms at 1 kHz, 10% THD)

9-873-314-09 Sony Corporation
2003L02-1 Home Audio Company
© 2003.12 Published by Sony Engineering Corporation

Music power output (reference)
Front speaker: 150 + 150 watts
Center speaker: 60 watts
Rear speakers: 60 + 60 watts
(8 ohms at 1 kHz, 10% TI-ID)

Other models:
The following measured at AC 120, 220, 240 V,
50/60 Hz
DIN power output (rated) 90 + 90 watts
(8 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
Front speaker: 120 + 120 watts
Center speaker: 40 watts
Rear speakers: 40 + 40 watts
(8 ohms at 1 kHz, 10% TI-ID)

Inputs

GAME IN: Voltage 250 mV,
(phonojacks) impedance 47 kilohms
MD (VIDEO) IN: voltage 450 mV/250 mV.
(phonojacks) impedance 47 kilohms
OPTICAL IN:

(Square optical connectorjacks, front panel)
wavelength

MIC: sensitivity 1 mV,

(Except for North
American and
European models)
(phone jack)

MINI Hl-Fl COMPONENT SYSTEM
S ONYRD

impedance 10 kilohms

- Continued on next page -

Page 2

HCD-DP1000D

Outputs

MD (VIDEO) OUT: voltage 250 mV

(phono jacks) impedance 1 kiloth

VIDEO OUT: max. output level

(phono jack) 1 Vp-p, unbalanced, Sync
negative, load impedance
75 ohms

S»VIDEO OUT: Y: 1 Vp»p, unbalanced,

(4-pin/mini-DIN jack) Sync negative,
C: 0.286Vp-p,
load impedance 75 ohms

PHONES: accepts headphones of

(stereo mini jack) 8 ohms or more

FRONT SPEAKER : accepts impedance of 8 to
16 ohms

REAR SPEAKER: accepts impedance of 8 to
16 ohms

CENTER SPEAKER: accepts impedance of 8 to

16 ohms
SUB WOOFER: Voltage 1 V,

impedance 1 kiloth

DVD player section

Laser Semiconductor laser
(DVD: It =650 nm, CD: It =780 nrn)
Emission duration:
continuous

Frequency response DVD (PCM 48 kHz):
2 Hz - 22 kHz = (i1 dB)
CD: 2Hz - 20 kHz =
(:1 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

Video color system format
NTSC, PAL

DIGITAL OUT OPTICAL

(Square optical connector jack, rear panel)

Wavelength 660 nm

Tape player section
Recording system 4-track 2-channel stereo
Frequency response 40 - 13,000 Hz (i3 dB),
(DOLBY NR OFF) using Sony TYPE I
cassette,
40 - 14,000 Hz (:3 dB),
using Sony TYPE I]
cassette

Tuner section
FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 - 108.0 MHz
Antenna FM lead antenna
Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AM tuner section
Tuning range
Pan American model: 530 - 1,710 kHz

(with the interval set at

10 kHz)

5 3 1 - 1 ,7 10 kHz

(with the interval set at 9 kHz)
European and Middle Eastern models:

531 - 1,602 kHz

(with the interval set at 9 kHz)
Other models: 531 - 1,602 kHz

(with the interval set at 9 kHz)

530 - 1,710 kHz

(with the interval set at 10 kHz)
Antenna AM loop antenna
Antenna terminals External antenna terminal
Intermediate frequency 450 kHz

General
Power requirements
North American model: 120 V AC, 60 Hz

European model: 230 V AC, 50/60 Hz

Australian model: 230 - 240 V AC,
50/60 Hz

Mexican model: 120 V AC, 60 Hz

Thailand model: 220 V AC, 50/60 Hz

Indian, Pakistani, Moroccan and Tunisian models:
220 V AC, 50/60 Hz

Other models: 120 V, 220 V or
230 - 240 V AC,
50/60 Hz
Adjustable with voltage
selector
Power consumption
U.S.A. model: 205 watts
Canadian model: 205 watts
European model: 190 watts
0.5 watts (at the Power Saving Mode)
Other models: 225 watts
Dimensions (W/h/d) Approx. 280 x 360 x 365mm
Mass

North American and European models:
Approx. 11.0 kg

Other models: 12.0 kg
Supplied accessories: AM loop antenna (1)
FM lead antenna (1)

Remote commander (1)
Batteries (2)

Video cable (1)

Front speaker pads (8)
Center and rear speaker pads
(MHC-DPl 000D only, 12)

Design and specifications are subject to change without notice.

SAFETY-RELATED COMPONENT WARNING !!

COMPONENTS IDENTIFIED BY MARK A OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!

LES COMPOSANTS IDENTIFES PAR UNE MARQUE A sun LES
DIAGRAMMES SCHEMATIQUES ET LA LISTE DES PIECES SONT
CRITIQUES POUR LA SECURITE DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIESES SONY
DONT LES NUMEROS SONT DONNES DANS CE MANUEL 0U
DANS LES SUPPEMENTS PUBLIES PAR SONY.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc on clothing and the human body
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts

The flexible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
