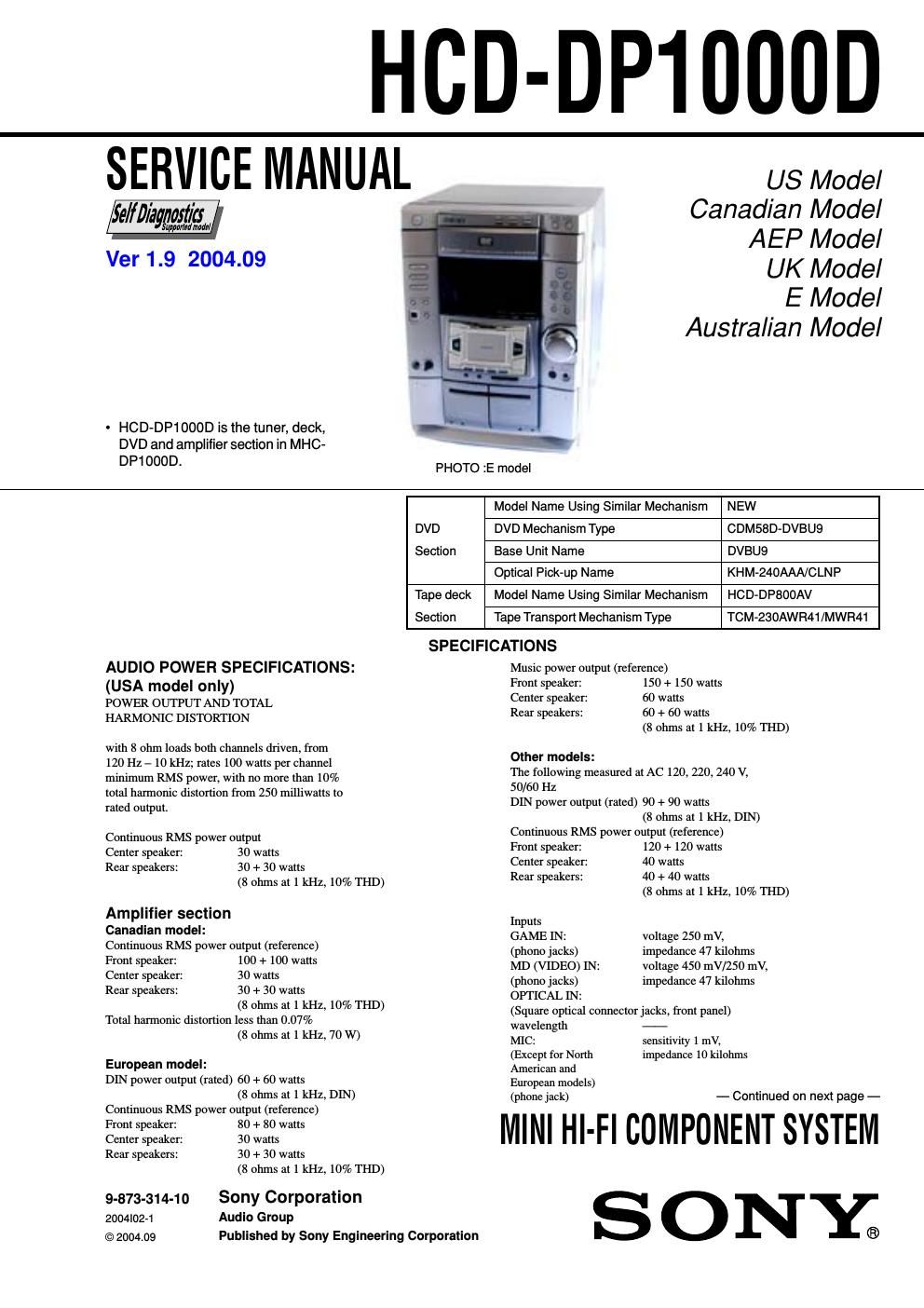

HCD-DP1000D
SERVICE MANUAL
5
Ver 1.9 2004.09
- HCD-DPtOOOD is the tuner, deck,
DVD and amplifier section in MHC-
DP1000D.
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
PHOTO :E model
DVD
Sectio n
Model Name Using Similar Mechanism NEW
DVD Mechanism Type CDM58D-DVBU9
Base Unit Name DVBU9
Optical Pick-up Name KHM-240AAA/CLNP
Tape deck
Section
Model Name Using Similar Mechanism HCD-DP800AV
Tape Transport Mechanism Type TCM-230AWFI41/MWR41
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS:
(USA model only)
POWER ounnrr AND TOTAL
HARMONIC DISTORTION
with 8 ohm loads both channels driven, from
120 Hz - 10 kHz; rates 100 watts per channel
minimum RMS power, with no more than 10%
total harmonic distortion from 250 milliwatts to
rated output.
Continuous RMS power output
Center speaker: 30 watts
Rear speakers: 30 + 30 watts
(8 ohms at 1 kHz, 10% THD)
Amplifier section
Canadian model:
Continuous RMS power output (reference)
Front speaker: 100 + 100 watts
Center speaker: 30 watts
Rear speakers: 30 + 30 watts
(8 ohms at 1 kHz, 10% THD)
Total harmonic distortion less than 0.07%
(8 ohms at 1 kHz, 70 W)
European model:
DIN power output (rated) 60 + 60 watts
(8 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
Front speaker: 80 + 80 watts
Center speaker: 30 watts
Rear speakers: 30 + 30 watts
(8 ohms at 1 kHz, 10% THD)
9-873-314-10 Sony Corporation
2004l0271 Audio Group
©2004.09 Published by Sony Engineering Corporation
Music power output (reference)
Front speaker: 150 + 150 watts
Center speaker: 60 watts
Rear speakers: 60 + 60 watts
(8 ohms at 1 kHz, 10% THD)
Other models:
The following measured at AC 120, 220, 240 V,
50/60 Hz
DHI power output (rated) 90 + 90 watts
(8 ohms at 1 kHz, DIN)
Continuous RMS power output (reference)
Front speaker: 120 + 120 watts
Center speaker: 40 watts
Rear speakers: 40 + 40 watts
(8 ohms at 1 kHz, 10% THD)
Inputs
GAME IN: voltage 250 mV,
(phono jacks) impedance 47 kilohms
MD (VIDEO) 1N: voltage 450 mV/ZSO mV,
(phono jacks) impedance 47 kilohms
OPTICAL IN:
(Square optical connector jacks, front panel)
wavelength
MIC: sensitivity 1 mV.
(Except for North impedance 10 kilohms
American and
European models)
(phone jack) - Continued on next page -
MINI Hl-Fl COMPONENT SYSTEM
