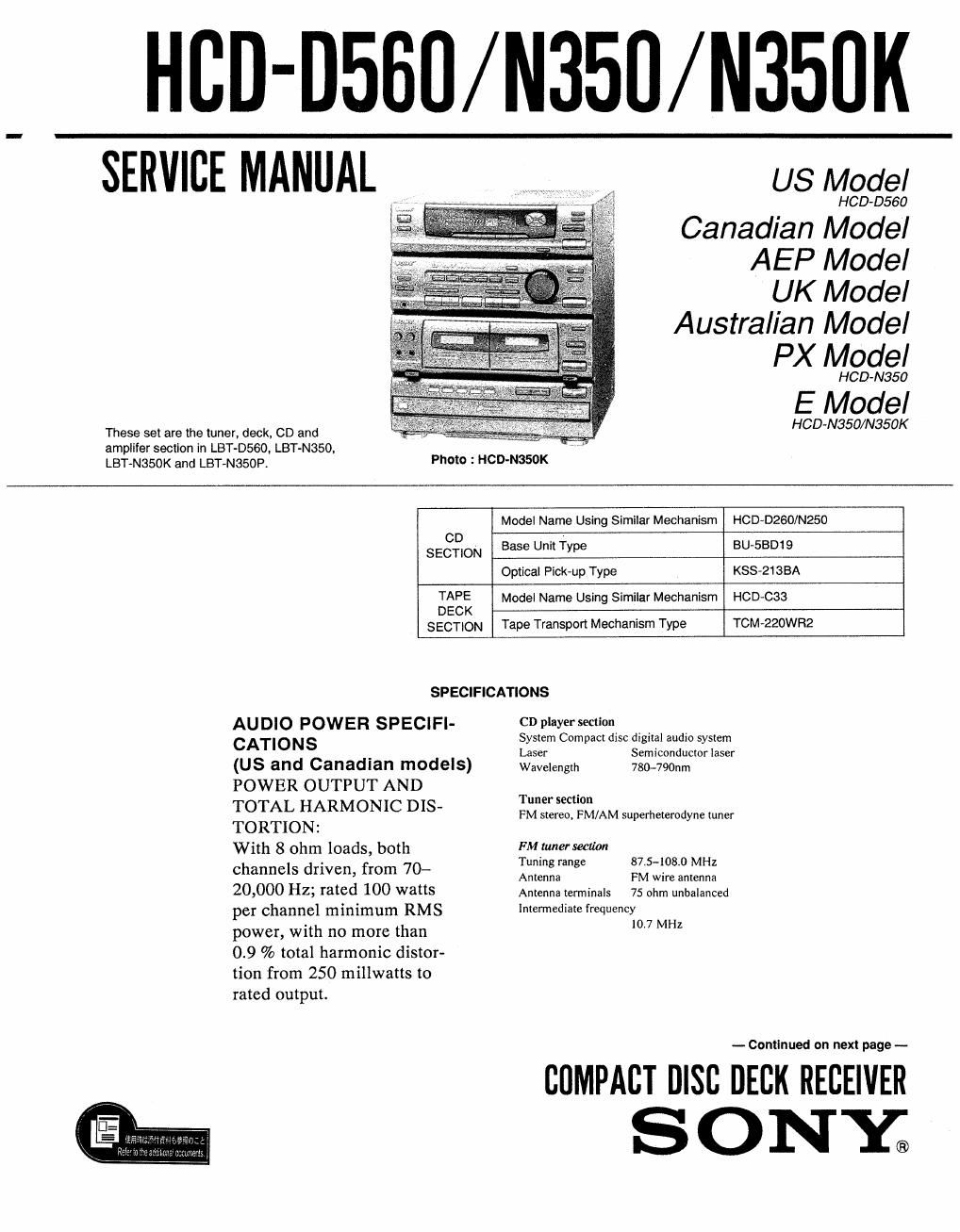

HCD-DBBfl/N350/N350K

SERVICE MANUAL ,

These set are the tuner, deck, CD and
amplifer section in LBT-D560, LBT-N350.
LBT«N350K and LBT-N350P.

US Model

HOD-0560

Canadian Model
AEP Model

UK Model
Australian Model
PX Model

HOD-N350

E Model

HCD-N350/N350K

Photo : HCD-NSSOK

Model Name Using Similar Mechanism HOD-0260/N250
CD
SECTION Base Unit Type BU-58019
Optical Pick~up Type KSS-213BA
TAPE Model Name Using Similar Mechanism HOD-C33
DECK
SECTION Tape Transport Mechanism Type TCM-220WR2
SPECIFICATIONS

AUDIO POWER SPECIFI-
CATIONS

(US and Canadian models)
POWER OUTPUT AND
TOTAL HARMONIC DIS-
TORTION:

With 8 ohm loads, both
channels driven, from 70-
20,000 Hz; rated 100 watts
per channel minimum RMS
power, with no more than
0.9 % total harmonic distor-
tion from 250 millwatts to
rated output.

CD player section
System Compact disc digital audio system

Laser Semiconductor laser
Wavelength 780-790nm
Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner secuon
Tuning range 87.54080 MHz
Antenna FM wire antenna

Antenna terminals 75 ohm unbalanced
Intermediate frequency
107 MHz

- Continued on next page -

COMPACT nlsc DECK RECEIVER
S 0 NY;

Page 2

AM tunersecu'on
Tuning range
US and Canadiam models:
AM: 530-1,710 kHz
(with the tuning interval
set at 10 kHz)
531-1602 kHz
(with the tuning interval
set at 9 kHz)
Latin American models:
AM: 530-1710 kHz
(with the tuning interval
set at 10 kHz)
Middle Eastern model:
MW: 5314.602 kHz
(with the tuning interval
set at 9 kHz)
SW: SSS-17.90 kHz
German and Italian models:
AM: 5314.602 kHz
Other European models:
MW: 531-1,6OZ kHz
LW: 153-279 kHz
(with the tuning interval
set at 3 kHz)
Other models:
AM: 5314.602 kHz
(with the tuning interval
set at 9 kHz)

Antenna AM loop antenna
External antenna
terminals

Intermediate frequency
450 kHz

Casette deck section
Recording system
4-track Z-channel stereo
Frequency response
US. Canadian, AEP, UK, German and
Italian models:
(DOLBY NR OFF)
40-13000 Hz ( i 3 dB), using
Sony TYPE I cassette
40-14900 Hz ( t 3 dB), using
Sony TYPE 1] cassette
Other models:
40-13000 Hz ( i- 3 dB), using
TYPE I cassette (Sony HF-S)
4044.000 Hz ( i 3 dB), using
TYPE 11 cassette (Sony UX-S)
Wow and flutter
: 0.15% W.Peak (IEC)
0.1% w.RMs (NAB)
: 0.2% wreak (DIN)

Amplifier section
US and Canadian models:
Continuous RMS power output:
100 W+100 W. (8 ohms at 70-
20000 Hz, 0.9% THD)
European models:
Continuous RMS power output:
30 W+30 W, (6 ohms at 1 kHz,
DIN)
35 W+35 W. (6 ohms at 1 kHz,
5% THD)

Other models:

Peak music power output
800 W (For Singapore, Malaysia
and Mexico, 4 speakers driven)
1000 W (For other countries,
4 speakers driven)

Continuous RMS power output:
60 W+60 W (6 ohms at 1 kHz,

5% THD)
Inputs
PHONO (phone jack):
Sensitivity 3 mV, impedance
47 kilohms

VIDEO (phone jack):
Sensitivity 300 mV, impedance
47 kilohms
MC 1, 2 (phone jack) (for LBT-NBSOK only):
Sensitivity 1 mV, impedance
10 kilohms
Outputs
PHONES (phono jack):
accept headphones of 8 ohms or more.
SPEAKER:
US and Canadian models:
accept impedance of 8 to 16 ohms.
Other models:
accept impedance of 6 to 16 ohms.
SURROUND SPEAKER:
(Except US and Canadian models)
Accept impedance of 16 ohms:
(For Singapore, Malaysia, Mexico and
European countries)
Accept impedance of 8 to 16 ohms.
(For other countries)

General
Power requirements
US and Canadian models:
120 V AC, 60 Hz
European models:
220-230 V AC, 50/60 Hz
Australian model:
220-240 V AC. 50/60 Hz
Malaysian model:
220-240 V AC, 50/60 Hz
Mexican model:
120 V AC, 50/60 Hz
Other models:
110-120 V or 220-240 V AC
adjustable. 50/60 Hz
Power consumption
US and Canadian models:
195W
European models:
105W
Other models:
180W
Dimensions
Approx: 355 X 425 X 405 mm
(14 X 16 3/4 X 16 inches) (w/h/d)
incl. projecting parts and controls
Mass
US and Canadian models:
Approx. 120 kg (261b 7 oz)
European models:
Approx: 106 kg
Other models:
Approx. 122 kg
