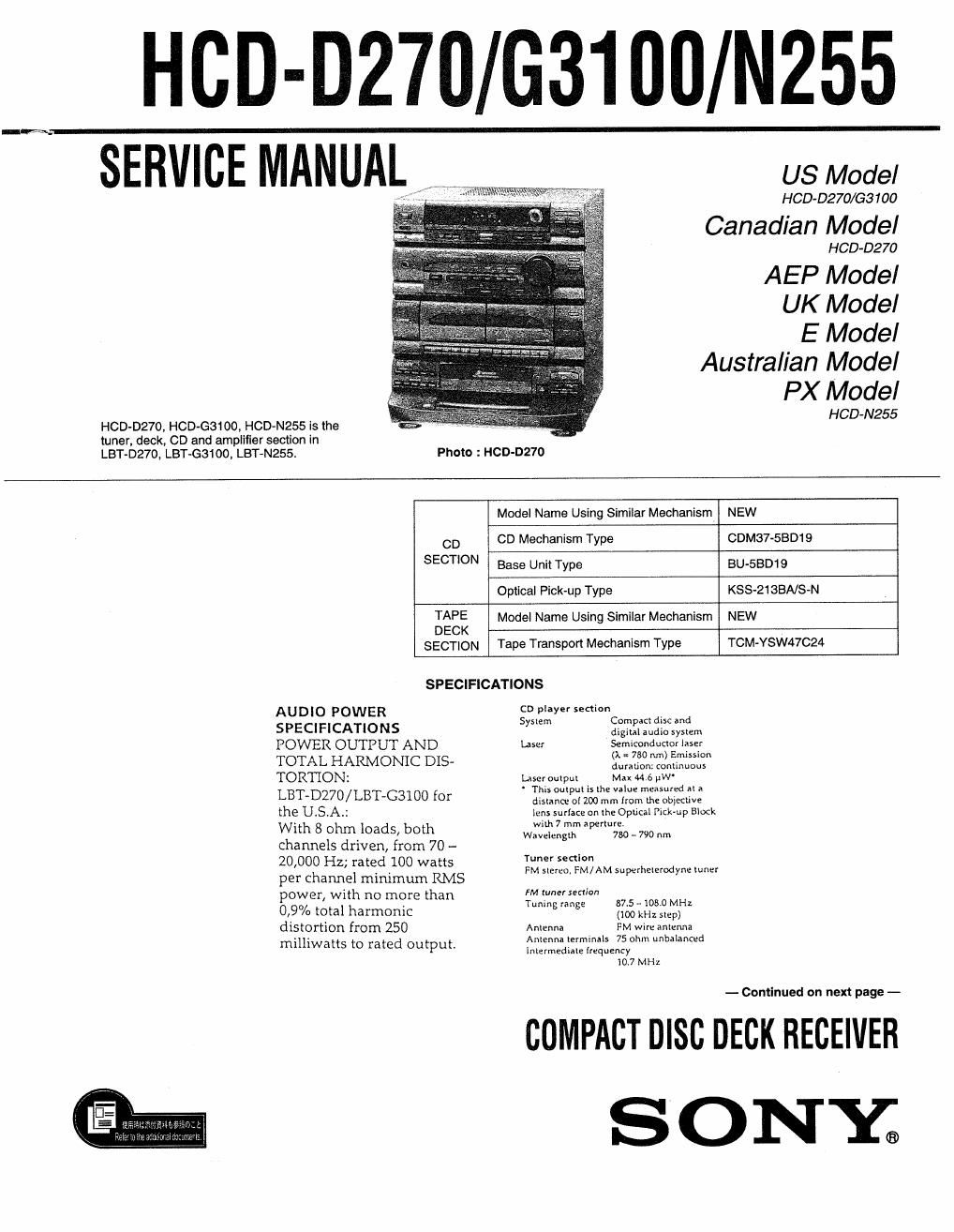

Sony hcd d 270 g3100 n255

Page 2

AM tunersemon
Tuning range AM:
US, Canadian models:
530 - 1,710 kHz
(with the AM tuning
interval set at 10 kHz)
531 - 1710 kHz
(with the AM Inning
interval Sal at 9 kHz)
German and Italian models:
AM:531 ~1,6(Y2 kHz
AEP, East European models:
MW: 531 >1.602 kHz
LW2153 - 279 kHz
(with the tuning
interval set at 3 kHz)

E. Australian, Argentine. Mexican, PX models:

AM: 531 - 1.602 kHz
(with the AM tuning
interval sot a19 kHz)
530 ~1.710 kHz
(with lhe AM tuning
interval set at 10 kHz)

Antenna AM loop antenna
External antenna
terminals

Intermediate irequency
450 kHz

Cassefle deck section
Recording system
4ctrack 2-dwannel stereo
Frequency response
(DOLDY NR OFF)
60 - 13,000 Hz (:3 dB), using
SONY TYPE I cassette
60 -14,000 Hz (:3 dB), using
SONY TYPE 11 cassette
Wow and flutter
0.1% WRMS 20.3% (DIN)

Amplifier section
US. Canadian models:
Continuous RMS power output:
100W +100 W (Bohms at
1 kHz, 10% THD)
AEP, German, Italian. East European models:
Continuous RMS power output:
50 W + 50 W (6 ohms at 1 kHz,
DIN)
60W+60W (oohmsal 1 kHz.
10% DIN)
Music power oulput
100W+100W(6ohmsai 1 kHz.
10% THD)
Other models:
Peak music power output 650 W
Cominuous RMS power output:
35 W + 35 W
(6 ohms at 1 kHz, 5% THD)
InpuLs
PHONO (phono jack)
Sensitivity 3 mV, impedance
47 kilohms
VIDEO (AUDIO) (Phono iack):
Sensitivity 300 mV, impedance
47 kilohms
Outputs
PHONES (phone jack)
accept headphones o! 8 ohms or more.
SPEAKER:
accept impedance 018 to
16 ohms

MIC (phone jack) (E. Australian, Argentine.
Mexican, PX models):
SensiLivity 1 mV, impedance 10 kilol-ims

General

Power roquiemems
US. Canadian, Mexican models :
120 V AC, 60 H2
AEP, German. Italian, East European models
: 220 - 230 V AC. 50/60 Hz
Australian model: 240 VAC. 50/60 Hz
Other model:
1107120 Vor220-240 V AC
50/60 Hz adjustable with the
voltage selector

Power consumption

US, Canadian models: 195 W

AEP. German. Italian, East European

models I 100 W

Olhcr models: 85 W
Dimensions

Approx. 355 x 425 x 400 mm

(14 X16 /A x 15 3/1 inches) (w/h/d)

inc]. projecting parts and controls
Mass Approx. 10.8 kg (23 lb 13 oz)
(D27/G3100 models)

Approx. 9.9 kg (21 lb 13 oz) (N255 models)

Design and specifications subject to change
without notice.

MODEL IDENTIFICATION
- BACK PANEL -

m .- PARTS No, w
MODEL PARTS No.

N255 :AEP model 4»978~187-2EI
N255 : German model 4-978-187-3121
N255 : Italian model 4-9784 87-4El
N255 : East European model 4-978»187~7Et
N255 : E2 model 4-978-188-0121
N255 2 Argentine model 4-978~188-1I:I
N255 : Australian model 4-978-188-2D
N255 : PX model 4978-1884312!
N255 : Mexican model 4»978~188-4l:|
0270 : US model 4979-3190121
D270 : Canadian model 4-979~31 9-11]
G3100 : US model 4-979-319-2El
