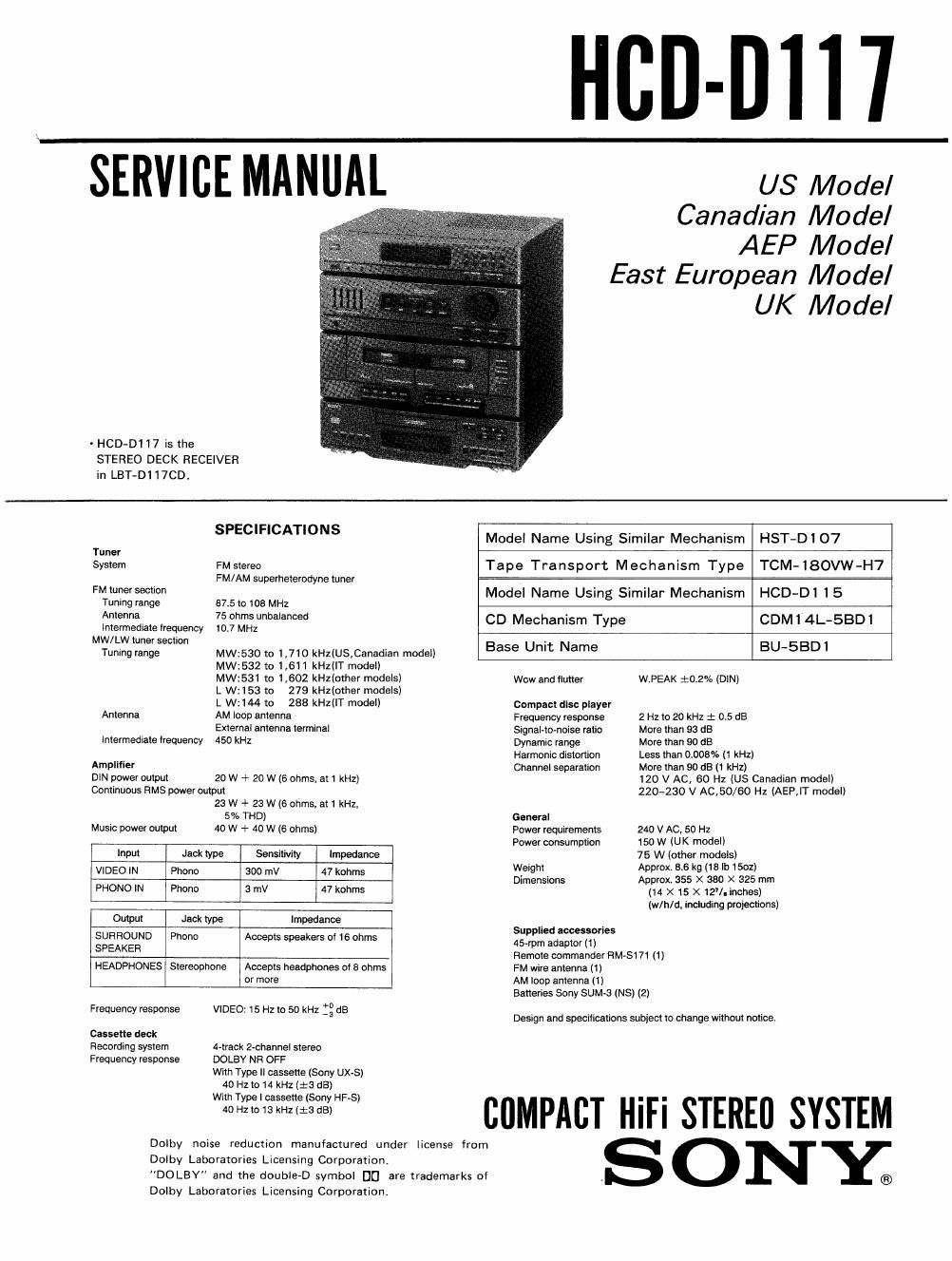

HCD-DII'I

SERVICE MANUAL

' HCD-D117 is the
STEREO DECK RECEIVER
in LBT-D117CD.

US Model

Canadian Model
AEP Model

East European Model
UK Model

SPECIFICATIONS
Tuner
System FM stereo
FM/AM superheterodyne tuner
FM tuner section
Tuning range 67.5 to 106 MHz
Antenna 75 ohms unbalanced
Intermediate frequency 10.7 MHz
MW/LW tuner section

Tuning range MW:530 to 1,710 kHZIUS,Canadian model)
MW:532 to 1,611 kHzIIT model)
MW:531 to 1,602 kHzIother models)
L W:153 to 279 kHz(other models)
L W:144 to 288 kHzIIT modeI)
Antenna AM loop antenna
External antenna terminal
Intermediate irequency 450 kHz

Amplifier
DIN power output 20 W + 20 W (6 ohms, at 1 kHz)
Continuous RMS power output
23 W + 23 W (6 ohms, at 1 kill.
5% THD)

Music power output 40 W + 40 W (6 ohms)

Input Jack type Sensitivity Impedance
VIDEO IN Phone 300 mV 47 kohms
PHONO IN Phone 3 mV 47 kohms

Output Jack type Impedance
SURROUND Phone Accepts speakers OI 16 ohms
SPEAKER
HEADPHONES Stereophone Accepts headphones of 8 ohms

Or more
Frequency response VlDEO: 15 Hz to so kHz :3 dB
Cassette deck
Recording system 4-track 2-channel stereo
Frequency response DOLBV NFl OFF

With Type II cassette (Sony ux-si
40 Hz lo 14 kHz (:3 dB)

with Type | cassette (Sony HRS)
40 H1 to 18 kHz (:3 dB)

Dolby noise reduction manufactured under license from

Dolby Laboratories Licensing Corporation.

DOLBV and the double-D symbol DU are trademarks of

Dolby Laboratories Licensing Corporation

Model Name Using Similar Mechanism HST-0107

Tape Transport Mechanism Type TCM-lBOVW-H7

Model Name Using Similar Mechanism HCD-DI 15

CD Mechanism Type CDMI 4L-SBD1

Base Unit Name BU-SBDI

Wow and flutter WPEAK 10.2% (DIN)

Compact disc player

Frequency response 2 Hz to 20 kHz 1 0.5 dB
Signal-to-noise ratio More than 93 dB
Dynamic range More than 90 dB
Harmonic distortion Less than 0.008% (1 kHz)

Channel separation More than 90 dB (1 kHz)
120 V AC, 60 Hz (US Canadian model)

220-230 V AC,50/60 Hz (AEF,IT model)

General
Power requirements 240 V AC, 50 Hz
Power consumption 150 w (UK model)

75 W (other models)
Weight Approx. 8.6 kg (18 lb 15oz)
Dimensions Approx. 355 X 360 X 325 mm
(14 x 15 x 127/. inches)
(w/h/d. including projections)

Supplied aooessorles

AS-rpm adaptor (1)

Remote commanderRM-SWI (1)
FM wire antenna ( 1)

AM loop antenna (1)

Batteries Sony SUM-3 (NS) (2)

Design and specifications subject to change without notice.
