Sony hcd cl 5 md service manual
This is the 112 pages manual for sony hcd cl 5 md service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd cl 5 md service manual (Ocr-read)

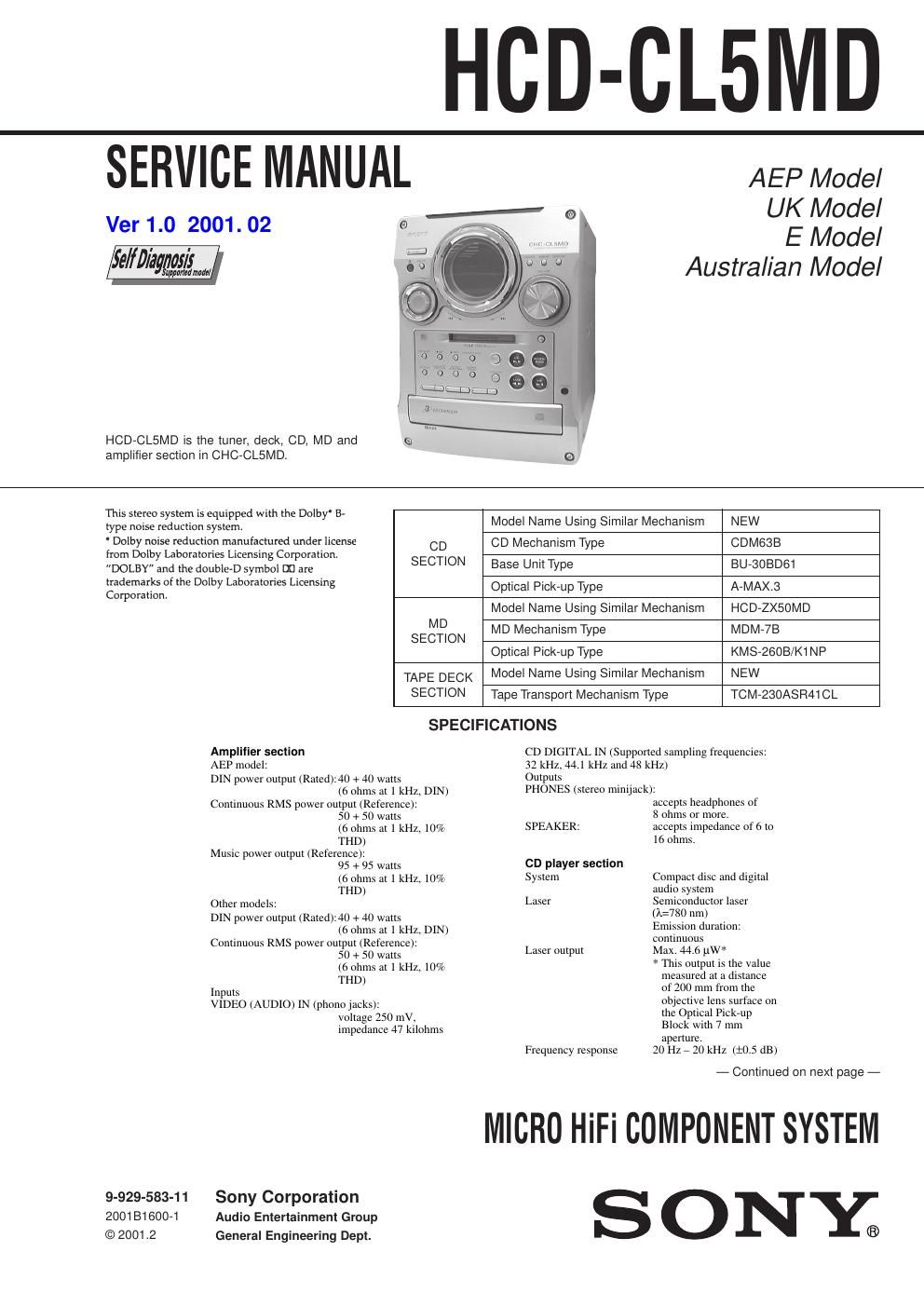

Page 1
2 HCD-CL5MD MD deck section System MiniDisc digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Sampling frequency 44.1 kHz Frequency response 20 Hz – 20 kHz (±0.5 dB) Tape deck section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Aerial FM lead aerial Aerial terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range AEP model: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Aerial AM loop aerial External aerial terminals Intermediate frequency 450 kHzGeneral Power requirements AEP model: 230 V AC, 50/60 Hz Australian and New Zealand models: 230 – 240 V AC, 50/60 Hz Other models: 120 V, 220 V, 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption AEP model: 100 watts 0.5 watts (at the Power Saving Mode) Other models: 100 watts Dimensions (w/h/d) incl. projecting parts and controls Amplifier/Tuner/Tape/MD/CD section: Approx. 215 × 285 × 421 mm Speaker: Approx. 210 × 285 × 260 Approx. 8.6kgmm Mass Amplifier/Tuner/Tape/MD/CD section: Design and specifications are subject to change without notice.
Page 2
3 HCD-CL5MD SELF-DIAGNOSIS FUNCTION The self-diagnosis function consists of error codes for customers which are displayed automatically when errors occur, and error codes which show the error history in the test mode during servicing. For details on how to view error codes for the customer, refer to the following box in the instruction manual. For details on how to check error codes during servicing, refer to the following Procedure for using the Self- Diagnosis Function (Error History Display Mode). Procedure for using the Self-Diagnosis Function (Error History Display Mode). Note:Perform the self-diagnosis function in the error history display mode in the test mode. The following describes the least required procedure. Be careful not to enter other modes by mistake. If other modes are entered accidentally, press the MENU/NO button to exit the mode. 1. Connect the mains lead to the mains while pressing the DIMMER , FUNCTION , and x buttons together, then release the DIMMER, FUNCTION , and x buttons simultaneously. While the test mode is set. [Check] will be displayed. 2. Move ./> left and right to display [Service] and press the ENTER/YES button. 3. Move ./> left and right to display Err Display. 4. Press the ENTER/YES button to enter the error history mode. op rec tm will be displayed. 5. Select the item to be displayed or executed using ./> . 6. Press the REC MODE button to display the selected item. 7. Press the REC MODE button another time to return to step 4. 8. Pressing the MENU/NO button displays Err Display and exits the error history display mode. 9. To exit the test mode, press the REPEAT button. This sets the standby state and ends the test mode. C41/Cannot Copy The sound source is a copy of a commercially available music software, or you tried to record a CD-R (Recordable CD). cThe Serial Copy Management System prevents making a digital copy (Refer to Operating Instruction on page 48). You cannot record a CD-R. E0001/MEMORY NG There is an error in the internal data that the system needs in order to operate. cConsult your nearest Sony dealer. E0101/LASER NG There is a problem with the optical pickup. cThe optical pickup may have failed. Consult your nearest Sony dealer. Self-diagnosis display This system has a Self-diagnosis display function to let you know if there is a system malfunction. The display shows a code made up of three letters and a message alternately to show you the problem. To solve the problem refer to the following list. If any problem persists, consult your nearest Sony dealer. C11/Protected The MD is protected against erasure. cRemove the MD and slide the tab to close the slot (Refer to Operating Instruction on page 17). C12/Cannot Copy You tried to record a CD or MD with a format that the system does not support, such as a CD-ROM. cRemove the disc and turn off the system once, then turn it on again. C13/REC Error Recording could not be performed properly. cMove the system to a stable place, and start recording over from the beginning. The MD is dirty or scratched, or the MD does not meet the standards. cReplace the MD and start recording over from the beginning. C13/Read Error The MD deck cannot read the disc information properly. cRemove the MD once, then insert it again. C14/Toc Error The MD deck cannot read the disc information properly. cReplace the MD. cErase all the recorded contents of the MD using the All Erase function (Refer to Operating Instruction on page 27).
