Sony hcd c 770 service manual
This is the 142 pages manual for sony hcd c 770 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd c 770 service manual (Ocr-read)

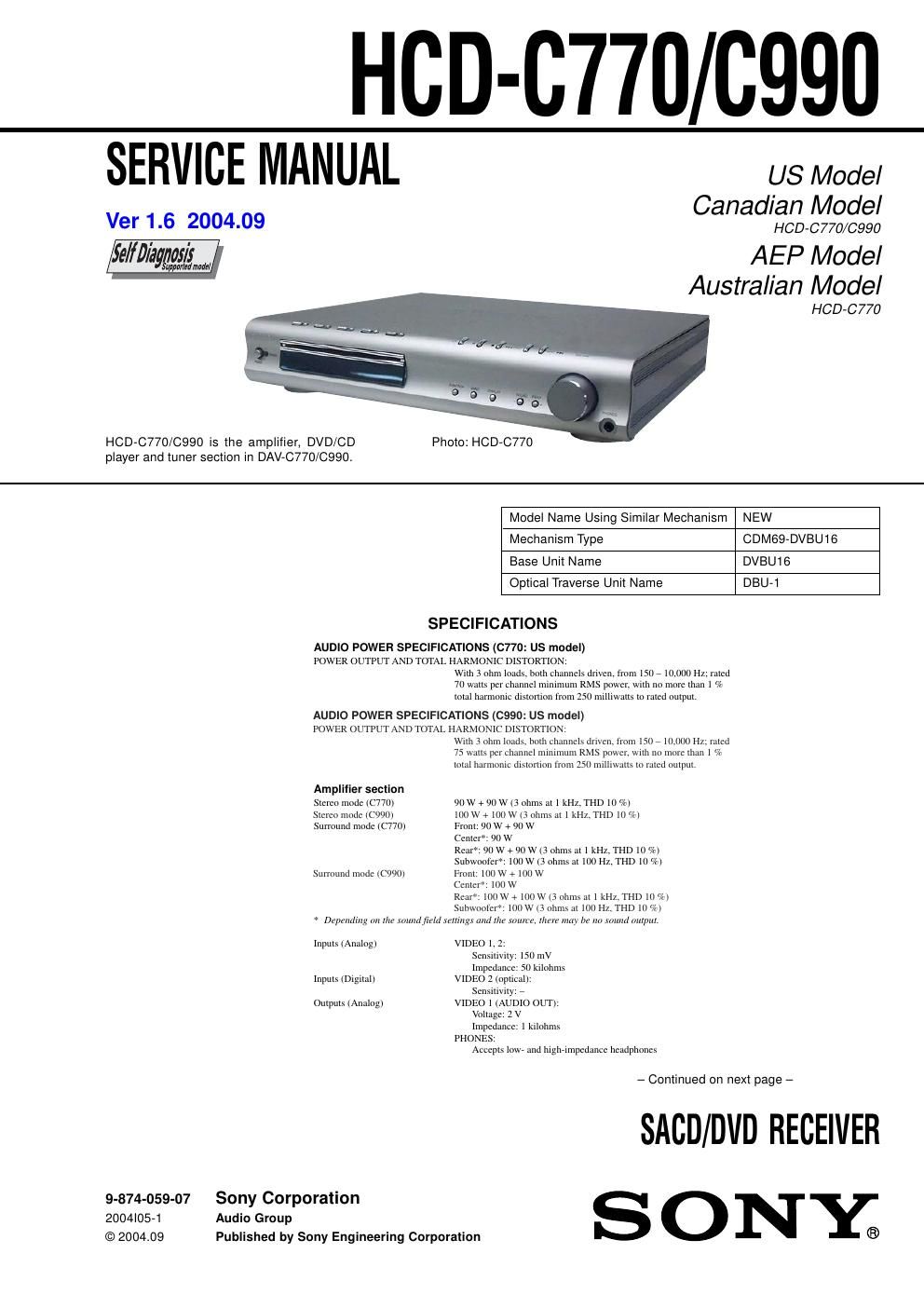

Page 1
HCD-C770/C990 2 Note: Refer to the 5. TEST MODE (page 22) for another self-diagnosis function. Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the system from malfunctioning. In this case a five-character service number (e.g., C 13 00) with a combination of a letter and digits appears on the screen and the front panel display. Refer to the following table. First three c haracters of the service n umber C 13 C 31 E XX (xx is a number) Cause and/or Corrective Action The disc is dirty. , Clean the disc with a soft cloth. The disc is not inserted correctly. , Re-insert the disc correctly. To prevent a malfunction, the system has performed the self- diagnosis function. , Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number. Example: E 61 10 C:13:00 SELF DIAGNOSIS FUNCTION Super Audio CD/DVD systemLaser Semiconductor laser (Super Audio CD/DVD: λ = 650 nm) (CD: λ = 780 nm) Emission duration: continuous Signal format system NTSC or NTSC/PAL Frequency response (at 2 CH STEREO mode) DVD (PCM): 2 Hz to 22 kHz ( ±1.0 dB) CD: 2 Hz to 20 kHz ( ±1.0 dB) Signal-to-noise ratio More than 80 dB (VIDEO 1 (AUDIO) connectors only) Harmonic distortion Less than 0.03 % FM tuner sectionSystem PLL quartz-locked digital synthesizer system T uning range North American model: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner sectionSystem PLL quartz-locked digital synthesizer system T uning range North American model: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) European model: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna Loop antenna Intermediate frequency 450 kHz Video sectionInputs Video: 1 Vp-p 75 ohms Outputs Video: 1 Vp-p 75 ohms S video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms P B/CB, PR/CR: 0.7 Vp-p 75 ohms GeneralPower requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Australian model: 220 – 240 V AC, 50/60 Hz Power consumption (C770) 135 W (120 V AC) 135 W (230 V AC) 1 W (120 V AC) 2 W (230 V AC) Dimensions (approx.) × 70 × 335 mm (14 × 2 7/8 × 13 1/4 inches) (w/h/d) incl. projecting parts Mass (approx.) 4.4 kg (9 lb 12 oz) Operating temperature 5˚C to 35˚C (41˚F to 95˚F) Operating humidity 5 % to 90 % Desi gn and s pecifications are sub ject to chan ge without notice. 355 Power consumption (C990) 140 W (120 V AC) 1 W (120 V AC) (at the Power Saving Mode)(at the Power Saving Mode)
Page 2
HCD-C770/C990 3 Notes on chip component replacement -Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing -K eep the temperature of the soldering iron around 270 ˚C dur- ing repairing. - Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). - Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU D ANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The label is located on the bottom exterior. This label is located on the bottom exterior. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, metallized knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST T he AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a r eturn to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The limit indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital m ultimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground
