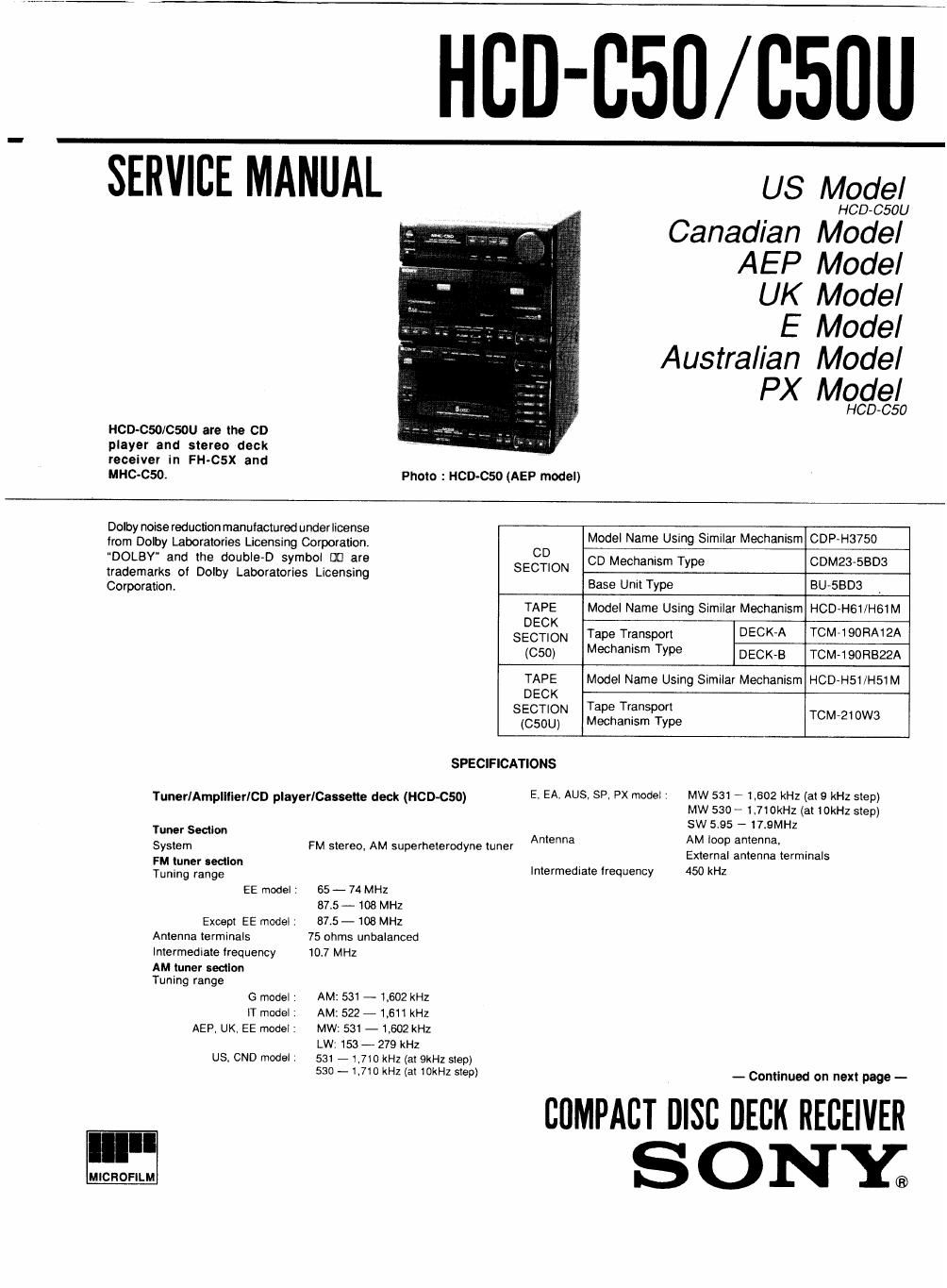

Sony hcd c 50 service manual

Page 2

Amplifier Secflon
AEP, UK EE, G, IT model:
Continuous RMS power output
30 + 30 watts (6 ohms at 1 kHz, DIN)
36 + 36 watts (6 ohms at 1 kHz, 5% THD)

Music power output 40 + 40 watts (5 ohms at 1 kHz, 10% THD)
Inputs MIX MIC (minijack):

sensitivity 1 mV,

impedance 10 kilohms
PHONO IN (phono jacks):

sensitivity 5 mV

impedance 47 kilohms
MD IN (phono jacks):

sensitivity 250 mV,

Impedance 47 kilohoms
HEADPHONES (stereo miniiack):

accepts headphones of

8 ohms or more
SPEAKER:

accepts speakers ol 6 to 160th
M0 OUT (phono jacks):

voltage 250 mV,

impedance 2 kilohms

Outputs

USI CND model '
Continuous RMS power output
25 + 25 watts (6 ohms at
80 HZ - 20 kHz, 1% THD)
Inputs VIDEO IN (phono jacks):
sensitivity 250 mV.
Impedance 47 kllohms
MD IN (phono Iacks)
sensIIIvtty 250 my.
impedance 47 kilohms
HEADPHONES
(stereo mtnIJack):
accepts headphones at
8 ohms or more
SPEAKER:
accepts speakers 016 to
16 ohms
VIDEO OUT (phono jacks):
voltage 250 mV,
Impedance 1 kIlohm
MD OUT (phono jacks)
voltage 250 mV.
Impedance 1 ktlohm
Et EA, AUS, SP. PX model ,
Continuous RMS power output
36 + 36 watta (6 ohms at 1kHZ, 5% THD)
Peak music power output . 300 watts

Inputs MIX MIC (minuack):
sensIIivity 1 mV.
Impedance 10 kIlohms

MD/VIDEO tN (phono jacks):
sensItIvity 250 mV,
Impedance 47 kilohoms

HEADPHONES

(stereo mianack):
accepts headphones ol
8 ohms or more

SPEAKER'
accepts speakers oi 6 to
16 ohms

MD/VIDEO OUT:
voltage 250 mV,
Impedance 2 kilohms

Outputs

Outpum

SAFETY-RELATED COMPONENT WARNINGH

COMPONENTS IDENTIFIED BY MARK [A OR DOTTED
LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL T0 SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BV SONV.

Cassette Deck Sectlon
Recording system 4-track 2-channel stereo
Frequency response (DOLBY NR OFF)
40 -- 13.000 Hz (:3 dB),
using TYPE I cassette
(Sony HF-S)
40 -14,000 Hz (13 dB).
using TYPE II cassette
(Sony UX-S)

Wow and flutter 011% WRMS 10.3% (DIN)

CD player Section
System Compact disc digital audio system
Laser Semlconductor laser
Wavelength 780 - 790 nm
General
Desitinatlon Power Power
requirements consumptIon
AEP, EE. G, 220 - 230 V 100W
IT model AC, 50/60Hz
UK model 240 V AC. 100W
50Hz
AUS model
E, EA. SP, 110 -120/ 100W
PX model 220 -240 V
AC.
adjustable,
50/60Hz
US model t20V AC, 80W
(5on
CND model 90W
Dimensions Approx. 225 x 330 x 320 mm
(87/3 x 13 x 125/5 in.) (w/h/d)
incl. projecting parts and controls
Weight Except SP modal : Approx, 8.9 kg

SP model : Approx. 9.1 kg
Remote Commander (1)

Sony SUM-3 (NS) batteries (2)
AM loop antenna (1)

FM antenna (1)

Speaker cord (2)
(Except AEP. UKV EE. 6, IT model)

Supplied accessories

Note
EE : East European model
EA : Saudi Arabia model

IT .
SP :Singapore model
CND : Canadian model
AUS :Australian model

ATTENTION AU COMPQSANT AYANT RAPPORT
A LA SECURITE!

LEs COMPOSANTS IoENTIPIEs PAR UNE MARDUE A
sun LES DIAGRAMMES scuéwmoues ET LA LISTE
DES PIECES sour CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER 055 com-
POSANTS QUE PAR DES PIEcEs sonv DONT LEs
Numénos soNT DONNES oANs CE MANUEL ou
DANS LES SUPPLEMENTS PUBLIES PAPI SONY.
