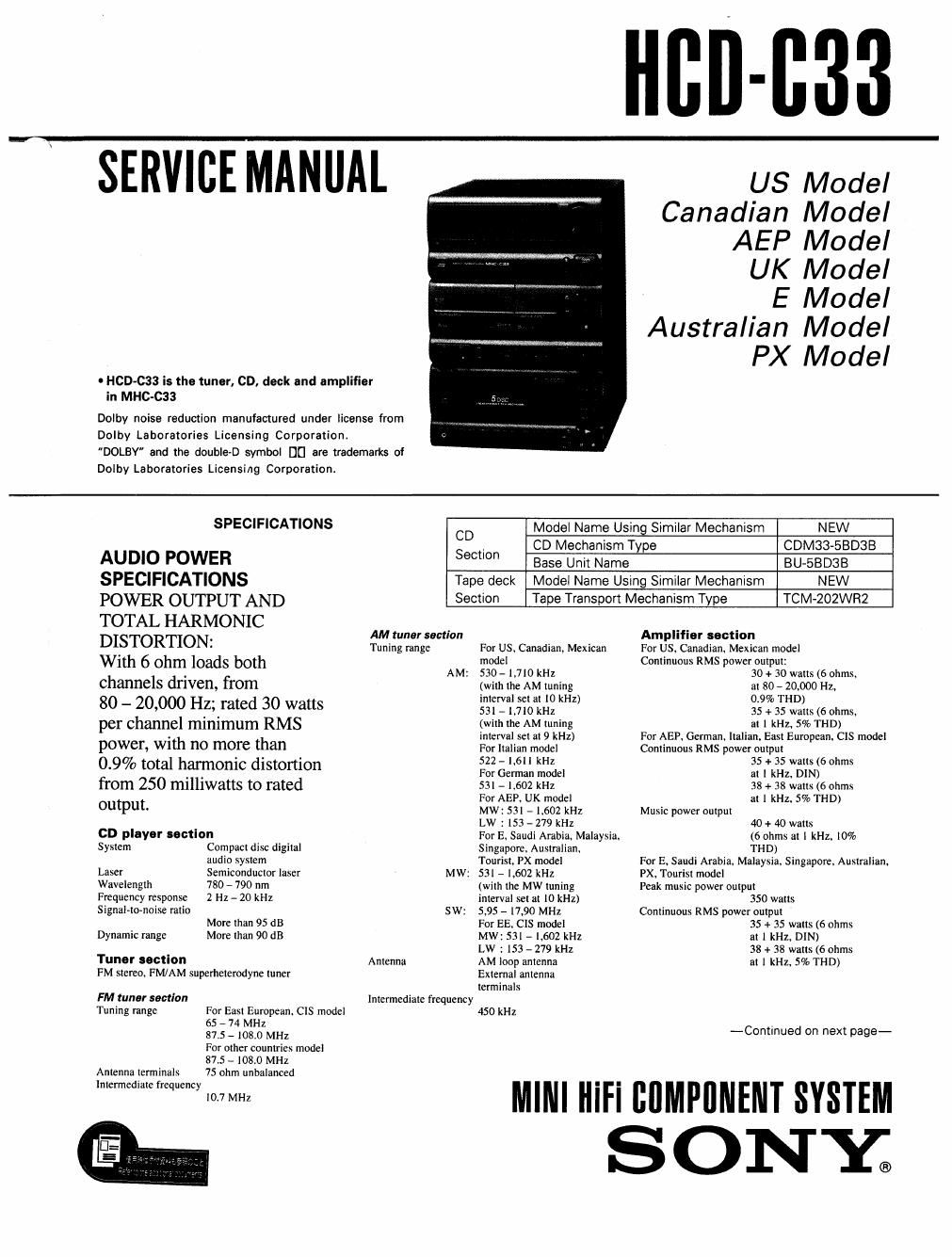

Page 1

HEB-B33

SERVICE MANUAL

0 HOD-633 is the tuner, CD, deck and amplifier

in MHC-C33

Dolby noise reduction manufactured under license from

Dolby Laboratories Licensing Corporation

DOLBV" and the doubleD symbol DU are trademarks of

Dolby Laboratories Licensing Corporation.

US Model
Canadian Model
AEP Model

UK Model

E Model
Australian Model
PX Model

SPECIFICATIONS

AUDIO POWER
SPECIFICATIONS

POWER OUTPUT AND
TOTAL HARMONIC
DISTORTION:

With 6 ohm loads both
channels driven, from

80 - 20,000 Hz; rated 30 watts
per channel minimum RMS
power, with no more than
0.9% total harmonic distortion
from 250 milliwatts to rated
output.

CD player section

System Compact disc digital
audio system

Laser Semiconductor laser

Wavelength 780 - 790 nm

Frequency response 2 Hz - 20 kHz

Signal-to-noise ratio

More than 95 dB
Dynamic range More than 90 dB
Tuner section
FM stereo. FM/AM superheterodyne tuner

FM tuner section
Tuning range For East European, CIS model
65 - 74 MHz

875 - l08t0 MHZ

For other countries model
87.5 - 108.0 MHz

Antenna terminals 75 ohm unbalanced
intermediate frequency

10.7 MHz

CD Model Name Using Similar Mechanism NEW
8 t' CD Mechanism Type CDM33-SBDSB
6 '0" Base Unit Name BU-SBD3B
Tape deck Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type TCM-202WR2
AM tuner section Amplifier section
Tuning range For US, Canadian, Mexican For US. Canadian, Mexican model
model Continuous RMS power output:
AM: 530 - [.710 kHz 30 + 30 watts (6 ohms,
(with the AM tuning at 80- 20,000 Hz,
interval set at 10 kHz) 09% THD)
531 - [.710 kHz 35 + 35 watts (6 ohms.
(with the AM tuning at 1 kHz, 5% THD)
interval set at 9 kHz) For AEP. German, Italian. East European, CIS model
For Italian model Continuous RMS power output
522 - L6H kHz 35 + 35 watts (6 ohms
For German model at l kHz, DIN)
53] - 1.602 kHz 38 + 38 watts (6 ohms
For AEP, UK model at 1 kHz. 5% THD)
MW: 53] - 1.602 kHz Music power output
W : [53 - 279 kHz 40+ 40 watts
For E, Saudi Arabia. Malaysia, (6 ohms at I kHz, [0%
Singapore. Australian, THD)
Tourist. PX model For E, Saudi Arabia, Malaysia, Singapore, Australian.
MW: 531 - 1,602 kHz PX, Tourist model
(with the MW tuning Peak music power output
interval set at it) kHz) 350 watts
SW: 5,95 - 17,90 MHz Continuous RMS power output
For EE, CIS model 35 + 35 watts (6 ohms
MW: 53l - [,602 kHz at I kHz, DIN)
W : [53 - 279 kHz 38 + 38 walls (6 ohms
Antenna AM loop antenna at 1 kHz, 5% THD)
External antenna
terminals
Intermediate frequency
450 kHz

--Continued on next page-

MIIIII IIIFi IllIMPIIIIIEIIIT SYSTEM
