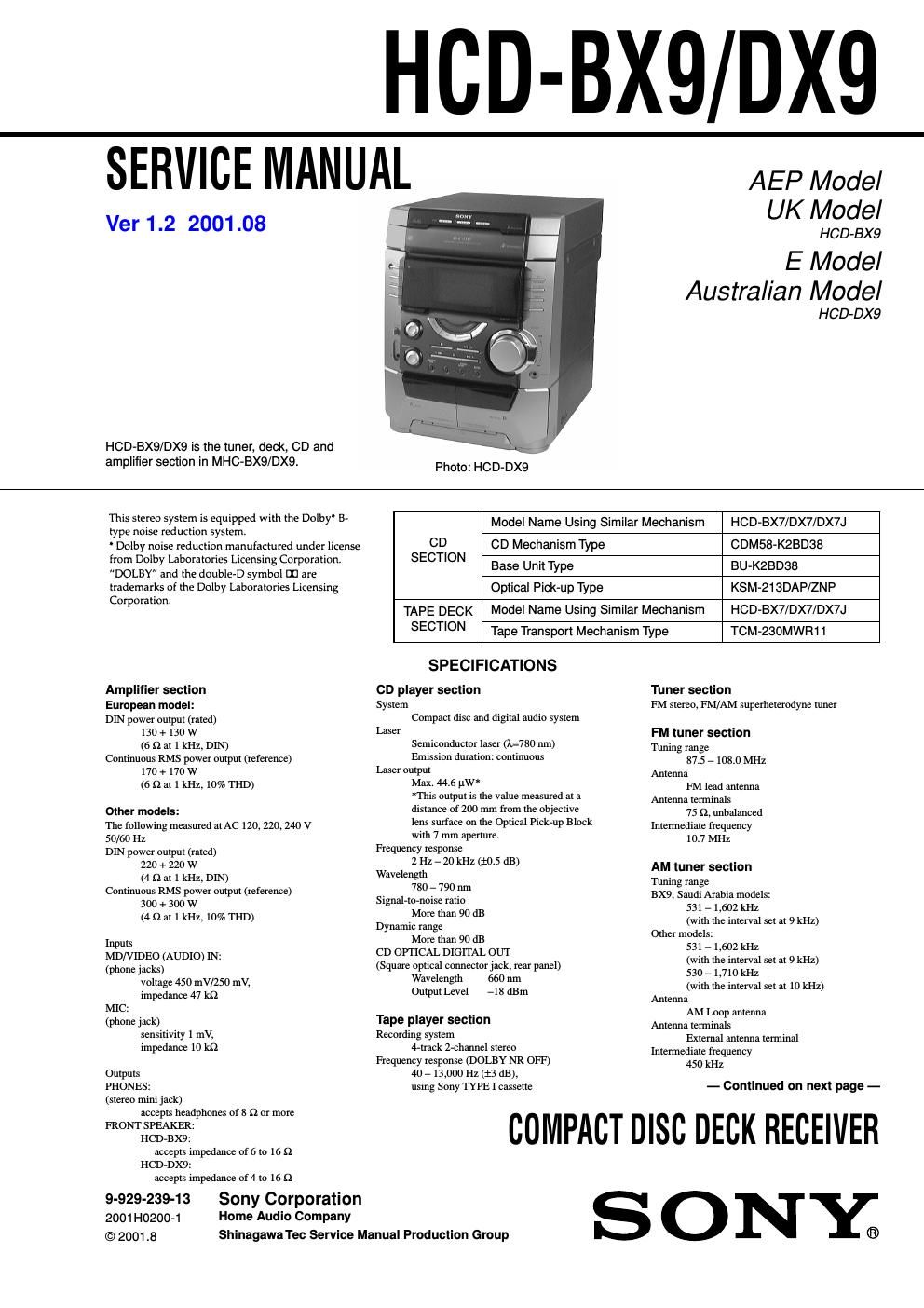

Sony hcd bx 9 dx9
This is the 19 pages manual for sony hcd bx 9 dx9.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from sony hcd bx 9 dx9 (Ocr-read)
Page 1
12 SECTION 4 TEST MODE [MC Cold Reset] - The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press three buttonsx , ENTER , and?/1simulta-neously. 2. The fluorescent indicator tube displays COLD RESET and the set is reset. [CD Ship Mode] - This mode moves the pickup to the position durable to vibra- tion. Use this mode when returning the set to the customer after repair. Procedure: 1. Press?/1button to turn the set ON. 2. Press CD button and?/1button simultaneously. 3. After the "STANDBY" display blinks six times, a message LOCK is displayed on the fluorescent indicator tube, and the CD ship mode is set. [MC Hot Reset] - This mode resets the set with the preset data kept stored in the memory. The hot reset mode functions same as if the power cord is plugged in and out. Procedure: 1. Press three buttonsx, ENTER , and DISC 1 simultaneously. 2. The fluorescent indicator tube becomes blank instantaneously, and the set is reset. [CD Service Mode] - This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pickup. Procedure: 1. Press?/1button to turn the set ON. 2. Select the function CD. 3. Press three buttonsx , ENTER , and OPEN/CLOSE simul- taneously. 4. The CD service mode is selected. 5. With the CD in stop status, turn the shuttle knob clockwise to move the pickup to outside track, or turn the shuttle knob counter-clockwise to inside track. 6. To exit from this mode, perform as follows: 1) Move the pickup to the most inside track. 2) Press three buttons in the same manner as step 2. Note: - Always move the pickup to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. - Do not run the sled motor excessively, otherwise the gear can be chipped. [VACS ON/OFF Mode] - This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: Press the ENTER and SPECTRUM buttons simultaneously. The message VACS OFF or VACS ON appears. [Change-over of MW Tuner Step between 9 kHz and 10 kHz] - A step of MW channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press?/1button to turn the set ON. 2. Select the function TUNER, and press TUNER/BAND button to select the BAND MW. 3. Press?/1button to turn the set OFF. 4. Press ENTER and?/1buttons simultaneously, and the display of fluorescent indicator tube changes to MW 9 k STEP or MW 10 k STEP, and thus the channel step is changed over. [GC Test Mode] - This mode is used to check the software version, FL tube, LED, keyboard and VACS. Procedure: 1. Press three buttonsx, ENTER , and DISC 2 simultaneously. 2. LEDs and fluorescent indicator tube are all turned on. 3. When you want to enter the software version display mode, press DISC 1 . The model number and destination are displayed. 4. Each time DISC 1 is pressed, the display changes starting from MC version, GC version, VC version, CD version, CM version, ST version, TC version, TA version, TM version and BR version in this order, and returns to the model number and destination display. 5. When DISC 3 is pressed while the version numbers are being displayed except model number and destination, year, month and day of the software creation appear. When DISC 3 is pressed again, the display returns to the software version display. When DISC 1 is pressed while year, month and day of the software creation are being displayed, the year, month and day of creation of the software versions are displayed in the same order of version display. 6. Press DISC 2 button, and the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays KEY0 VOL0. Each time a button is pressed, KEY value increases. However, once a button is pressed, it is no longer taken into account. VOL value increases like 1, 2, 3 ... if rotating VOLUME knob in + direction, or it decreases like 0, 9, 8 ... if rotating in – direction. 8. Also when DISC 3 is pressed after lighting of all LEDs and FL tubes, value of VACS appears. 9. To exit from this mode, press three buttons in the same manner as step 1, or disconnect the power cord.
Page 2
13 [MC Test Mode] - This mode is used to check operations of the respective sections of Amplifier, Tuner, CD and Tape. Procedure: 1. Press the ?/1 button to turn on the set. 2. Press the three buttons of x , ENTER and DISC 3 simultaneously. 3. A message TEST MODE appears on the FL display tube. 4 When f (CURSOR UP) button is pressed, GEQ increases to its maximum and a message GEQ ALL MA appears. 5. When F (CURSOR DOWN) button is pressed, GEQ decreases to its minimum and a message GEQ ALL M1 appears. 6. When g (CURSOR LEFT) or G (CURSOR RIGHT) button is pressed, GEQ is set to flat and a message GEQ FLAT appears. 7. When the VOLUME control knob is turned clockwise even slightly, the sound volume increases to its maximum and a message VOLUME MAX appears for two seconds, then the display returns to the original display. 8. When the VOLUME control knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message VOLUME MIN appears for two seconds, then the display returns to the original display. 9. In the test mode, the default-preset channel is called even when the TUNER is selected and an attempt is made to call the preset channel that has been stored in memory, by operating the Shuttle knob. (It means that the memory is cleared.) 10. When CD is selected and the EDIT button is pressed, the disc that is being chucked at this moment becomes the default setting. It means that the default disc only is accessed when any other discs are selected even though the display indication changes accordingly. At the same time, the DISC SKIP EX- CHANGE and OPEN/CLOSE cannot be accepted. (It means that the tray motor and the turntable motor are disabled of their operation.) 11. When a tape is inserted in Deck B and recording is started, the input source function selects VIDEO automatically. 12. When x button is pressed to stop recording, the Tape (Deck) B is selected and tape is rewound using the Shuttle knob, tape is rewound, tape is stops at around the record-starting position and playback of the recorded portion of the tape is started. If PAUSE is inserted even once during recording, tape is rewound to the position around the PAUSE position and is played back. 13. When the CD SYNC HI-DUB Button is press during playback of Deck B, either normal speed or high speed can be selected by this button. 14. Select the desired loop by pressing the PLAY MODE button. Insert a test tape AMS-110A or AMS-RO to Deck A. 15. Press the SPECTRUM button to enter the AMS test mode. 16. After a tape is rewound first, the FF AMS is checked, and the mechanism is shut off after detecting the AMS signal twice. 17. Then the REW AMS is checked and the mechanism is shut off after detecting the AMS signal twice. 18. When the check is complete, a message of either OK or NG appears. 19. When you want to exit this mode, press the ?/1 button twice. The cold reset is enforced at the same time.
