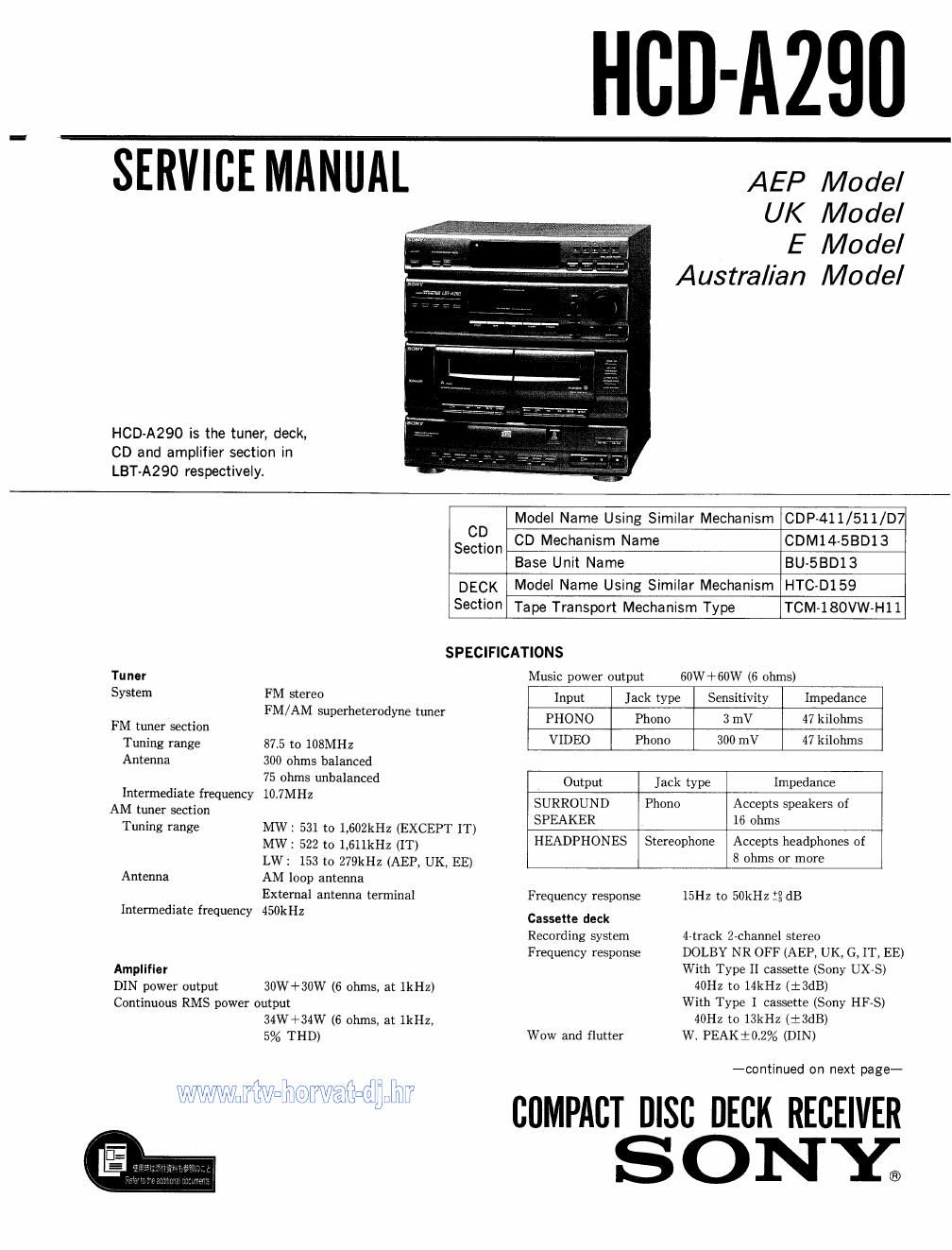

Sony hcd a 290 service manual

Page 2

Compact disc player

Laser Semiconductor laser
Wavelength 780-790nm

Frequency response 2H2 to ZOkHziollSdB
Signal-to-noise ratio More than 93dB
Dynamic range More than 90dB
Harmonic distortion Less than 0.008% (IkHz)
Channel separation More than 90dB (lkHz)

General

Power requirements ZZO-ZBOV AC, 50/60Hz

(AEP, G, IT, BE)

240V AC, 50Hz (UK)
110-120V/220-240V AC, 50/60Hz (E)
120V AC, 50/60Hz (MX)

240V AC, 50/60Hz (AUS)

Power consumption 105W
Mass Approxi 80kg (17 lb 10 oz)
Dimensions Approx. 355 X 380 X 325mm

(14 X 15 X 127/a inches)
(w/h/d, including projections)

Supplied accessories
Remote commander RM-SZZl (1)

Batteries Sony SUM-3 (NS) (2)
FM wire antenna (1)
AM loop antenna (1)

45-rpm adaptor (1) (AE, AEP3, UK, G, E2, MX,

AUS: Supplied with
the turntable)

Design and specifications are subject to change without notice

I Abbreviations

IT : Italian model
G : German model
EE : East European model

MX : Mexican model

AUS : Australian model

AE : AEP unit with PHONO POWER SOURCE (Made in malaysia)
AEP3: AEP unit with PHONO POWER SOURCE (Made in indonesia)
E2 2 AC 120V Area model

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK 1% OR DOTTED LINE WITH
MARK A ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN
THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

._2_

This appliance is classified as a CLASS 1 LASER product.
The CLASS 1 LASER PRODUCT MARKING is located on
the rear exterior.

CLASS I LASER PRODUCT
LUOKAN 1 LASERLAITE

KLASS i LASERAPPARAT

Laser component in this product is capable of emitting
radiation exceeding the limit for Class 1.

The following caution label is located inside the unit.

~ uni/ism: L456: When we» open.
CAUTION ' Avovo :xvosuae To new.
- usvnue LASERSYRAUNG v50 Ammo ma
ADVARSEL ' simmsnsumnr sawsurmm.
wocA nos £11215: roe 51mins.

; AVAITAESSA u squALu-(Irus ouuvsmsssn
um ALTIINA WEWEILVLLE .

; ussnsuuuua mu DENNA DEL an own:
ocn acumen AA mxowuo.

: 03an user: i I~ u»: use Dues
ADVARSEL WNGA smitefi too: Hnfieu.

Dolby noise reduction manufactured under license from Dolby Labora-
tories Licensing Corporation
DOLBY" and the double-D symbol DD are trademarks of Dolby Labora-
tories Licensing Corporation.

NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT

The laser diode in the optical pick-up block may suffer
electrostatic break-down because of the potential difference
generated by the charged electrostatic load, etc, on clothing
and the human body.

During repair, pay attention to electrostatic break-down and
also use the procedure in the printed matter which is included
in the repair parts.

The flexible board is easily damaged and should be handled
with care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be
focused on the disc reflective surface by the objective lens in
the optical pick-up block. Therefore, when checking the laser
diode emission, observe from more than 30 cm away from the
objective lens.
