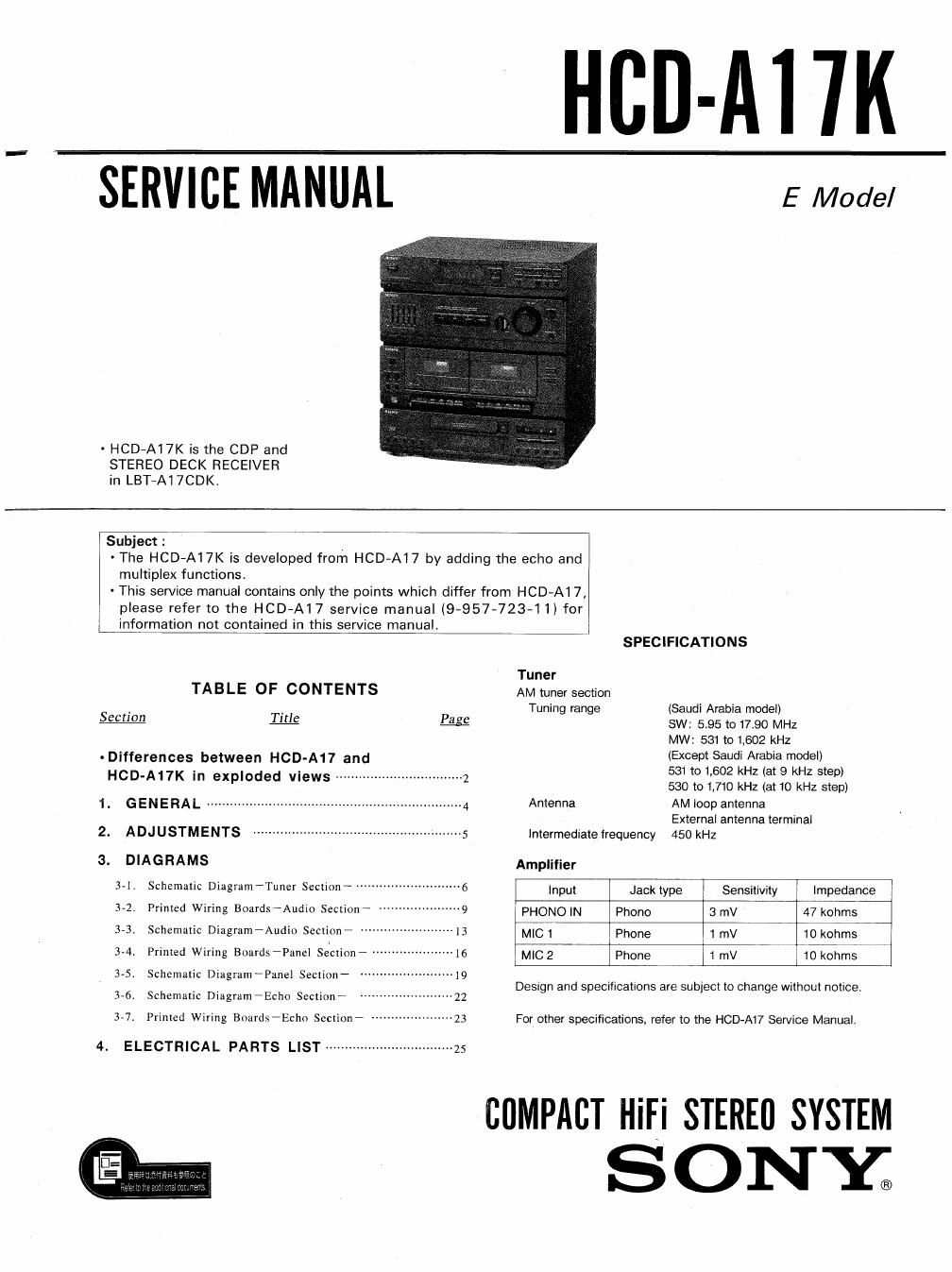

Sony hcd a 17 k service manual

Page 2

-Differences between HCD-A17 and HCD-A17K
exploded views

Page Ref, No. HCDvAl7 HCD4A17K
3-703-244-00 BUSHING (2104), CORD (AUS) 3-703*244-OO BUSHING (2104), CORD (EA, MY, SP)
37 *3
3*703-571-11 BUSHING (S)(4516), CORD (E, PX) 3-703-571-11 BUSHING (S)(4516). CORD (E)
4*955-701-11 PANEL, BACK (E2) 4-955-7OI*01 PANEL, BACK (EA)
4-955401-41 PANEL, BACK (PX) 44955-701-21 PANEL, BACK (E)
37 *8
4-955-701751 PANEL, BACK (E3) 4-955~7OI-31 PANEL, BACK (MY)
4-957*666-7l PANEL, BACK (AUS) 4*955-701-61 PANEL, {BACK (SP)
Ai4856-540-A MAIN BOARD, COMPLETE A-4356-541-A MAIN BOARD, COMPLETE (E, MY, SP)
37 *ll
A-43604778-A MAIN BOARD, COMPLETE (EA)
1'569~OO7-11 ADAPTER, CONVERSION 2P (E3, PX) 1*569-OO7'11 ADAPTER, CONSVERSION 2P (E)
37 A17
l-569-008411 ADAPTER, CONVERSION ZP (EA)
1*5754653-51 CORD, POWER (E, PX) 14575-653'5I CORD, POWER (E)
37 ACNPIBOI
1-696is48-21 CORD, POWER (AUS) 17575-65I-11 CORD, POWER (EA, MY, SP)
38 56 X-4943-167'l PANEL ASSY, FRONT X-4943~168~l PANEL ASSY, FRONT
Ai4356-530-A PANEL BOARD, COMPLETE Ai4356-581iA PANEL BOARD, COMPLETE (E, MY, SP)
38 *60
A-4360-7764A PANEL BOARD, COMPLETE (EA)
38 77 4*943-521-01 KNOB (K)
38 *78 A-4356i554-A ECHO BOARD, COMPLETE
38 *79 DBMS-350711 MIC VOL BOARD
38 *80 1*646-351-11 MIC JACK BOARD
NOTE :

nAbbreviations
EA : Saudi Arabia
MY : Malaysia
SP : Singapore

oltems marked "*" are not stocked
since they are seldom required for
routine service. Some delay should be
anticipated when ordering these items.

The components identified by
mark A or dotted line with mark.
A are critical for safety.
Replace only with part number
specified.
